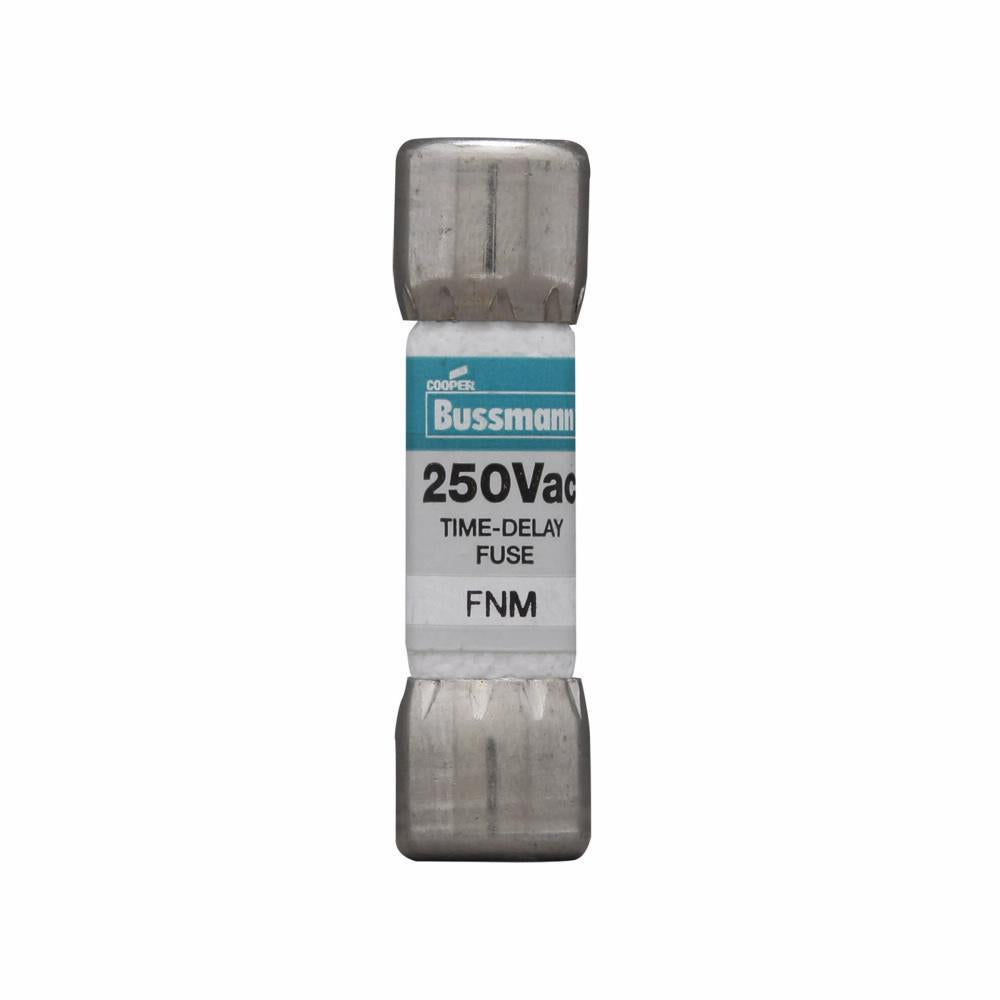

Bussmann FNM-1-1/8 FNM Fuse 1-1/8 A

Product Description

The BUSSMANN FNM-1-1/8 is a Fusetron™ FNM series fuse with time delay. This non-indicating, non-rejection fuse is rated for 1-1/8 A and 250 VAC, with an interrupt rating of 100/10000 A. It features a ferrule end terminal and a cylindrical body, with a dual element and nickel-plated bronze construction.

• Low cost supplemental protection of 125/250 VAC inductive circuits
• Upgrading to Low-Peak™ class CC product will reduce SKU investment and minimize potential for misapplying fuse
• Nickel plated brass end caps

Product Highlights

The BUSSMANN FNM-1-1/8 fuse provides reliable, time-delay protection for supplemental applications. Its robust design and materials ensure consistent performance.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNM-1-1/8

Technical Specifications

• Body Size: 13/32 in Dia x 1-1/2 in L
• Color: Green
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Nickel Plated Bronze
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: FNM
• Terminal Type: Ferrule End
• Type: Time Delay
• Amperage Rating: 1-1/8 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 100/10000 A
• Class: Supplemental
• Body Type: Cylindrical
• Product Length/Depth: 0.39 in
• Product Height: 1.44 in
• Product Width: 0.39 in
• Product Type: Fuse
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• Standard & Approvals: CE Certified, CSA Class 1422-01 File 53787, UL-248-14, RoHS Compliant
• Application: General Purpose Circuits, Lighting Circuit Protection and Meter Circuits
