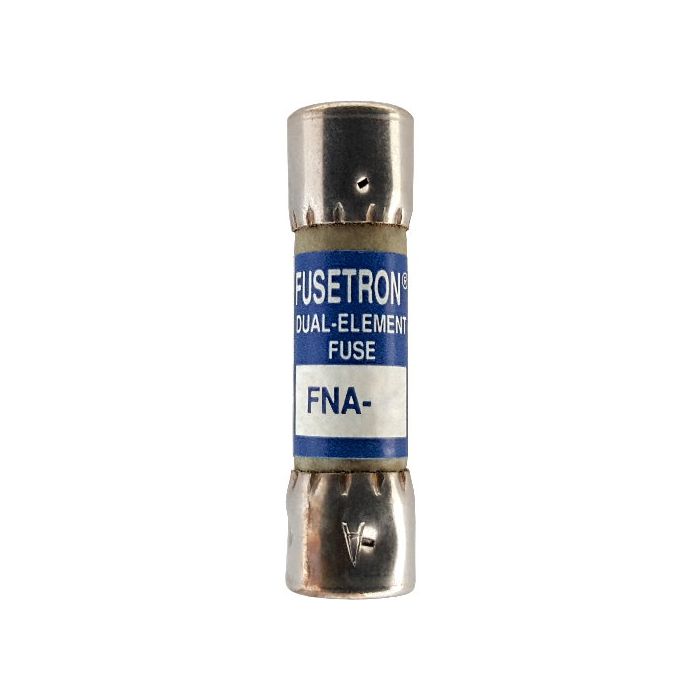

Bussmann FNA-8/10 Series FNA Fuse 0.8 A

Product Description

The Eaton Bussmann series FNA-8/10 fuse is a time-delay fuse designed for inductive and electronic load circuits. Rated at 0.8 A and 250 V, it features a dual element and non-indicating design with ferrule end connections. It has an interrupt rating of 35 AIC at 250 Vac and 10 kAIC at 125 Vac.

• Superior overload and cycling capabilities
• Dual element
• Silver-plated pin for positive electrical signal activation

Product Highlights

Provides reliable circuit protection with time-delay functionality and robust construction.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNA-8/10

Technical Specifications

• Product Name: Eaton Bussmann series FNA fuse
• Catalog Number: FNA-8/10
• UPC: 051712713429
• EAN: 5027590060158
• Product Length/Depth: 0.35 in
• Product Height: 1.46 in
• Product Width: 0.35 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 0.8 A
• Interrupt rating: 35 A at 250 VAC
• Voltage rating: 125 VAC
• Material: Silver-plated pin
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• Amps: 8/10
• Volts AC: 250
• Fuse Type: Specialty
• Element: Dual Element
• Time Delay: Time Delay
• Series: FNA
• Mpn: FNA-8-10
• Gtin: 51712713429
• Ampere: 0.8 A
• Speed: Time Delay / Slow Blow
• Class: Midget Fuses
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse FLA, Mersen GFN
• Dimensions: 0.406" Dia x 1.5" L (10.31x38.1mm)
• Other names: FNA.8, FNA 0.8 Amp, FNA-0.8, FNA-8/10, FNA 0.8A, FNA0.8A, FNA-0.8A, FNA 8/10, FNA 8/10A
