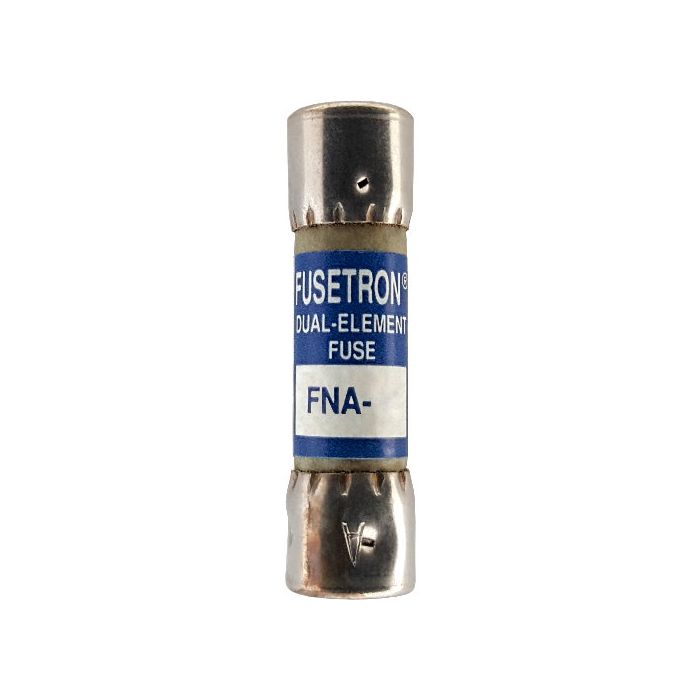

Bussmann FNA-5 FUSETRON DUAL-ELEMENT INDICA 5A

Product Description

The BUSSMANN FNA-5 is a Fusetron dual-element indicating fuse. This time-delay fuse is suitable for inductive load and electronic circuits. It features silver-plated pins and provides superior overload and cycling capabilities. The fuse is rated for 5A and 250V AC, with an interrupting rating of 10kA at 125V AC and 200kAIC at 250V AC.

• Dual-element construction for time-delay functionality
• Silver-plated pins for positive electrical signal activation
• Suitable for inductive load and electronic circuits

Product Highlights

The BUSSMANN FNA-5 fuse provides reliable circuit protection with time-delay functionality and high interrupting capacity.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNA-5
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Bussmann
• Manufacturer #: FNA-5
• Product Type: Fuse
• Amperage Rating: 5 A
• Interrupt rating: 200 kAIC at 250 Vac 10 kAIC at 125 Vac
• Voltage rating: 250 V
• Material: Silver-plated pin
• Number of elements: Dual
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• Amps: 5A
• Volts AC: 250
• Type: Specialty Fuse
• Element: Dual Element
• Time Delay: Yes
• Physical Size: 0.406" x 1 1/2"
• AC Voltage Rating: 250V AC
• Interrupting Rating: 10,000 AIC @ 125 VAC
• Ampere: 5 A
• Speed: Time-Delay
• Class: Midget
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse FLA, Mersen GFN
• Category: Circuit Protection
• Voltage Rating - AC: 250 VAC
• Response Time: Slow Blow
• Series: FNA
• Applications: Electrical, Industrial
• Features: Indicating
• Approval Agency: CE, CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 200A
• Fuse Type: Cartridge
• Package / Case: Cylindrical, Alarm Indicating, 5AG, 10x38.1mm
• Current Rating (Amps): 5A
• Size / Dimension: 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
• Visual Indication: Indicating
• Body Style: Cylindrical
• Body Material: Fiberglass
• Equivalent Brand and Series: Bussmann FNA, Littelfuse FLA, Mersen GFN
• Fits Fuse Block Style: Non-Rejection
• Compatible Fuse Block Series: BMM
• DC Voltage Rating: Not Rated
• Item: Midget Fuse
• Fuse Holder Code: D
• In Line Fuseholder: D
• Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
• Functionally Equal To: Littelfuse FLA, Mersen/Ferraz Shawmut GFN
• Equivalent Series: FLA, FNA, GFN
• Connection Type: Ferrule End x Ferrule End
• Interrupt Rating - AC: 200 A, 10 kA
• Current: 5 A
• Length: 1-1/2 in
• Diameter: 13/32 in
• Overall Length: 1 1/2 in
• Overall Diameter: 13/32 in
• Maximum Amperage: 5 A
• Country of Origin: United States
