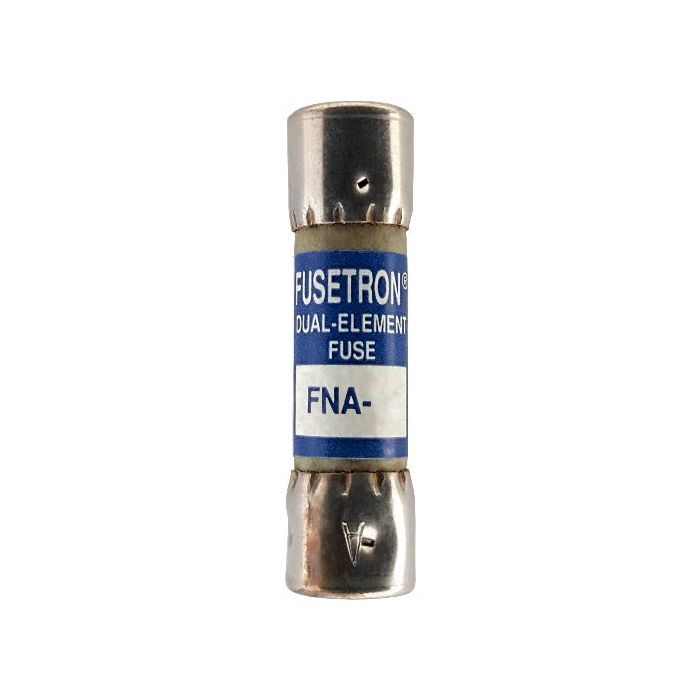

EATON Bussmann FNA-3 Fuse 3 A
EATON Bussmann FNA-3 Fuse 3 A

Bussmann FNA-3 Fuse 3 A

EATON
Brand: EATON
SKU: FNA-3
Availability: In Stock

Ships same day if ordered by 12 pm
$32.49
$32.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton Bussmann series FNA fuse, MPN FNA-3, is a time-delay fuse designed for inductive load and electronic circuits. It has a dual element and ferrule end connections. This fuse provides superior overload and cycling capabilities, with a voltage rating of 250 V and an amperage rating of 3 A.

  • Superior overload and cycling capabilities
  • Pin Indicating Type
  • Dual Element

Product Highlights

Time-delay fuse with silver-plated pin for electrical signal activation. UL Listed and CSA Certified.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FNA-3
  • Country of Origin: Mexico
Technical Specifications
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-3
UPC
051712713535
Product Length/Depth
1.5 in
Product Height
0.406 in
Product Width
0.406 in
Product Type
Fuse
Amperage Rating
3 A
Interrupt rating
10 kAIC at 125 Vac 200 kAIC at 250 Vac
Voltage rating
250 V
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Volts AC
250
Physical Size
0.406" x 1 1/2"
AC Voltage Rating
250 V AC
Interrupting Rating
10,000 AIC @ 125 VAC
Brand
Eaton Bussmann
Series
FNA
Body Material
Fiberglass
Compatible Fuse Block Series
BMM
Current Rating
3 A
Element
Dual
Fits Fuse Block Style
Non-Rejection
Fuse Body Style
Cylindrical
Fuse Class or Type
Midget
Interrupt Rating - AC
200 A; 10 kA
Overall Diameter
13/32 in
Overall Length
1-1/2 in
Speed
Time-Delay
Standards
CE; CSA Class 1422-01; UL-248-12 Guide JDYX
Visual Indication
Indicating
UNSPSC
39121609
Body Size
13/32 in Dia x 1-1/2 in L
Body Type
Cartridge
Class
Supplemental
Indicating/Non-Indicating
Indicating
Mounting Type
Holder
Rejection/Non-Rejection
Non-Rejection
Terminal Type
Ferrule End
Type
Midget Pin-Indicating Time Delay
Voltage Rating AC
125 VAC
Fuse Element
Time Delay
Fuse Size
13/32" x 1 1/2"
