EATON Bussmann FNA-2 FUSETRON DUAL-ELEMENT INDICA
EATON Bussmann FNA-2 FUSETRON DUAL-ELEMENT INDICA

Bussmann FNA-2 FUSETRON DUAL-ELEMENT INDICA

EATON
Brand: EATON
SKU: FNA-2
Availability: In Stock

Ships same day if ordered by 12 pm
$39.09
$39.09
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

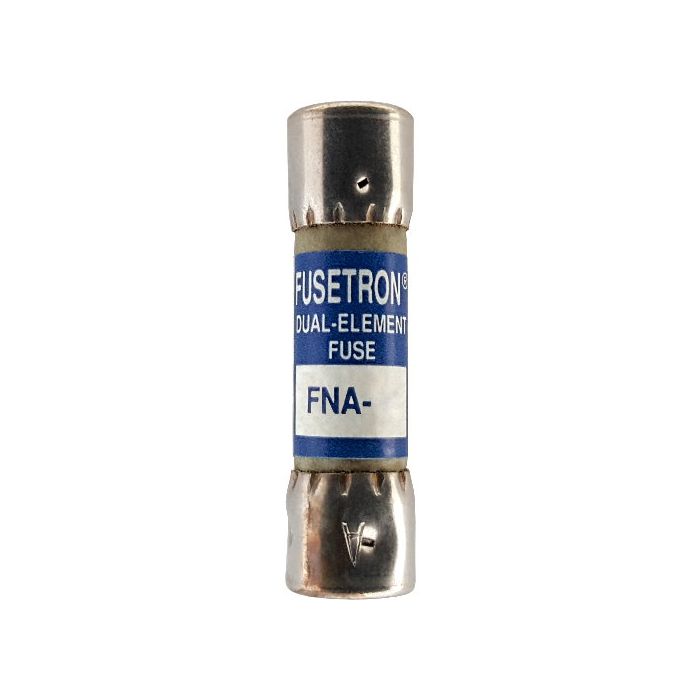

The BUSSMANN FNA-2 FUSETRON dual-element indicating fuse is a time-delay fuse designed for inductive load and electronic circuits. It features silver-plated pins for positive electrical signal activation and superior overload and cycling capabilities. This fuse provides supplemental protection for circuits with high inrush currents up to 250Vac.

  • Superior overload and cycling capabilities
  • Dual-element, time-delay performance permits close sizing on control transformers and relays
  • Silver-plated pin for positive, electrical signal activation

Product Highlights

Offers reliable circuit protection with time-delay functionality and clear pin indication.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FNA-2
Technical Specifications
SKU
FNA-2
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-2
UPC
051712713498
EAN
5027590060066
Product Length/Depth
0.35 in
Product Height
1.46 in
Product Width
0.35 in
Compliances
CE Marked
Product Type
Fuse
Amperage Rating
2 A
Interrupt rating
10 kA at 125 VAC
Voltage rating
125 VAC
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Amps
2
Volts AC
250
Type
Pin Indicating
Element
Dual Element
Characteristic
Time Delay
Physical Size
0.406" x 1 1/2"
AC Voltage Rating
250
Interrupting Rating
10,000 AIC @ 125 VAC
UL Listed
(Guide # JDYX, File # E19180)
CSA Certified
(Class 1422-01, File # 53787)
Ampere
2 A
Speed
Time Delay / Slow Blow
Class
Midget Fuses
Shape
Cartridge Fuses
Approvals
CE, UL, CSA
Substitute parts
Littelfuse FLA, Mersen GFN
Current Rating (Amps)
2A
Voltage Rating
125V
Response Time
Time Delay
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cartridge
Mounting Type
Holder
Standard & Approvals
CE Certified, UL File E19180, CSA Class 1422-01, File 53787, RoHS Compliant
Application
Power Electronic Circuits and Inductive Load Circuits
