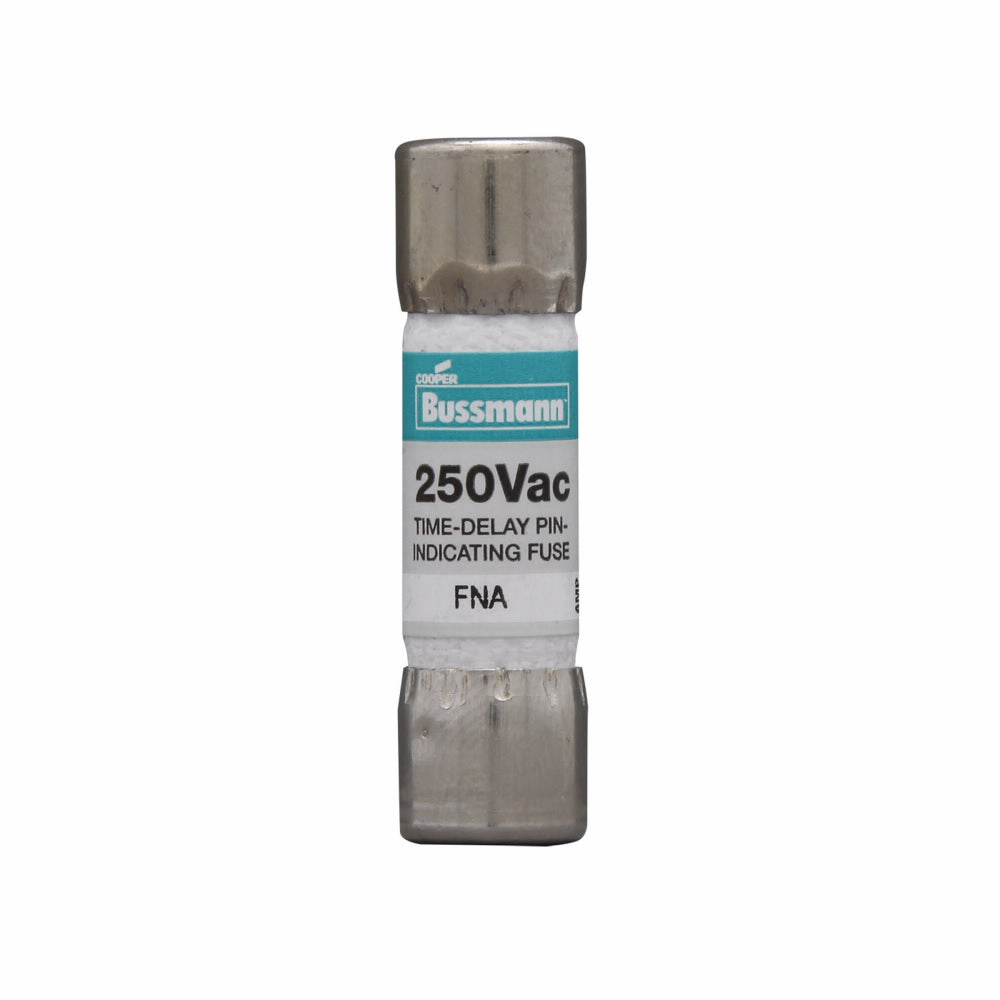

Bussmann FNA-1 Fuse 1 A (13/32 in x 1 1/2 in)

Product Description

The BUSSMANN FNA-1 is a time-delay fuse designed for inductive load and electronic circuits. Rated at 1 A and 250 V, it features a dual element and non-indicating design with ferrule end connections. It provides superior overload and cycling capabilities. This fuse offers reliable protection for various circuit types.

• Time-delay fuse
• Dual element
• Superior overload and cycling capabilities

Product Highlights

The BUSSMANN FNA-1 fuse is ideal for protecting inductive load and electronic circuits with its time-delay and dual-element design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNA-1
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton Bussmann series FNA fuse
• Catalog Number: FNA-1
• UPC: 051712713436
• Product Length/Depth: 1.5 in
• Product Height: 0.406 in
• Product Width: 0.406 in
• Product Type: Fuse
• Amperage Rating: 1 A
• Interrupt rating: 10 kAIC at 125 Vac 200 kAIC at 250 Vac
• Voltage rating: 250 V
• Material: Silver-plated pin
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Superior overload and cycling capabilities
• AC Voltage Rating: 250 V
• Interrupting Rating: 10,000 AIC @ 125 VAC
• Physical Size: 0.406" x 1 1/2"
• Brand: BUSSMANN
• Series: FNA
• Mpn: FNA-1
• Upc: 051712713436
• Gtin: 51712713436
• Current Rating: 1 A
• Element: Dual
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 200 A; 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Time-Delay
• Standards: CE; CSA Class 1422-01; UL-248-12 Guide JDYX
• Visual Indication: Indicating
• UNSPSC: 39121609
• Amperage: 1 Amp
• Applications: Control Circuits, Electronic Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating: 10 kAIC
• Size: 13/32 In Diameter X 1-1/2 In Length
• Standard: CE,CSA,UL 248-14
• TC Connection: Ferrule End X Ferrule End
• Type: Time Delay
• Voltage: 250 Volt
• Sub Brand: Bussmann Series
• 12-Digit UPC: 051712713436
• Class: Supplemental
