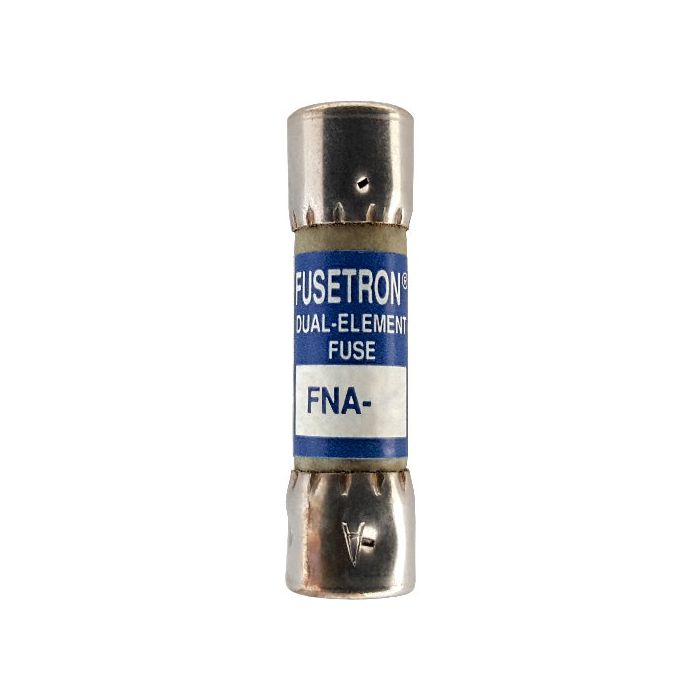

Bussmann FNA-1-6/10 FNA Fuse 1.6 A

Product Description

The Eaton Bussmann series FNA-1-6/10 is a time-delay fuse designed for inductive and electronic load circuits. This 1.6 A fuse features dual elements and non-indicating functionality with ferrule end connections. It is constructed with a silver-plated pin and is standard-packaged, offering superior overload and cycling capabilities.

• Superior overload and cycling capabilities
• Dual Element
• Time Delay

Product Highlights

The Bussmann FNA fuse is ideal for circuits with high inrush currents and provides supplemental protection for inductive circuits up to 250Vac.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FNA-1-6/10
• Country of Origin: Mexico

Technical Specifications

• SKU: FNA-1-6/10
• Product Name: Eaton Bussmann series FNA fuse
• Catalog Number: FNA-1-6/10
• UPC: 051712713474
• EAN: 5027590425841
• Product Length/Depth: 0.35 in
• Product Height: 1.46 in
• Product Width: 0.35 in
• Product Type: Fuse
• Amperage Rating: 1.6 A
• Interrupt rating: 10 kAIC at 125 Vac
• Voltage rating: 250 V
• Material: Silver-plated pin
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• AC Voltage Rating: 250 V
• Features: Pin Indicating Type, Dual Element, Time Delay
• Physical Size: 0.406" x 1 1/2"
• Listing: UL Listed: (Guide # JDYX, File # E19180)
• Certification: CSA Certified (Class 1422-01, File # 53787)
• Ampere: 1.6 A
• Speed: Time-Delay
• Class: Midget Fuses
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse FLA, Mersen GFN
• Body Material: Fiberglass
• Compatible Fuse Block Series: BMM
• Current Rating: 1.6 A
• Element: Dual
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 200 A; 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA Class 1422-01; UL-248-12 Guide JDYX
• Visual Indication: Indicating
• UNSPSC: 39121609
• MPN: FNA-1-6/10
• Brand: Cooper Bussmann
• Country of Origin: United States
• Category: Business & Industrial
