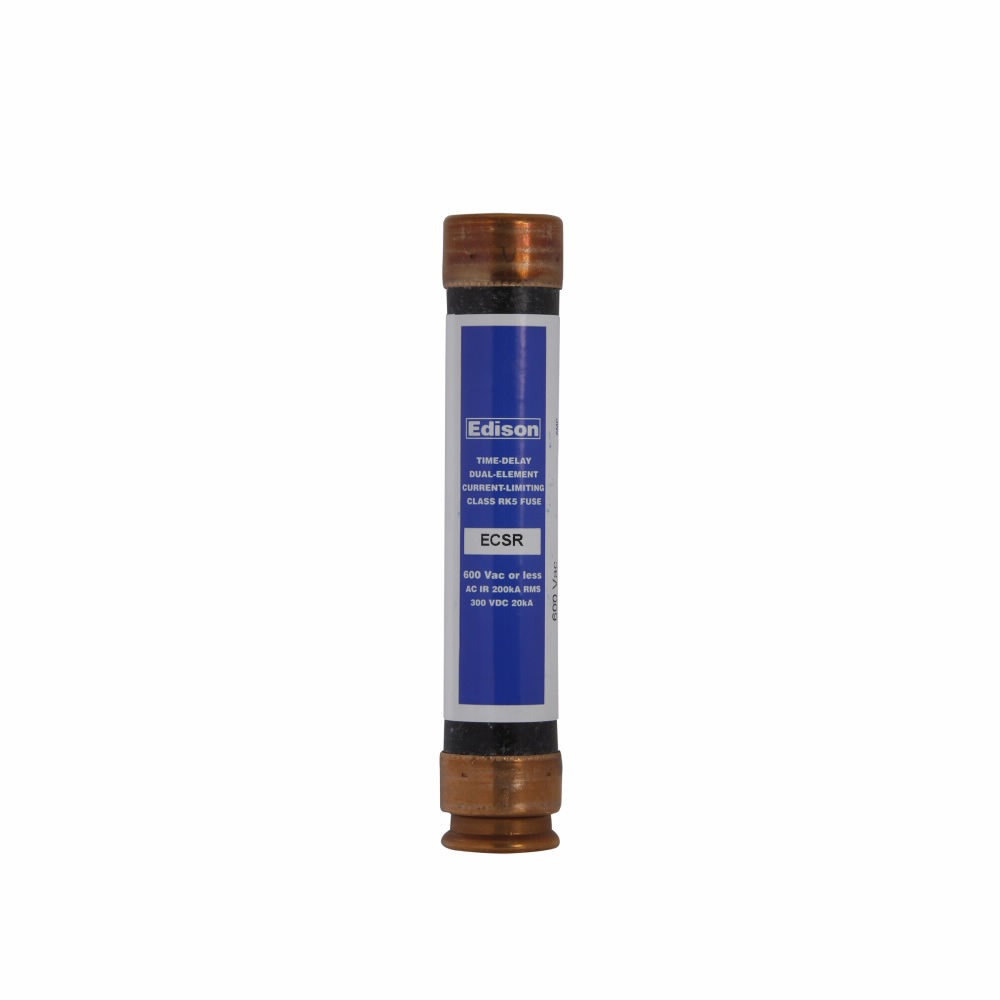

Bussmann ECSR50 BUSS ECSR50 UL CLASS RK-5 TIME DELA 50 A

Product Description

The Bussmann ECSR50 is a time-delay current-limiting fuse designed for reliable performance in power distribution applications. This fuse is rated at fifty amps and has dual elements. It offers superior overload and cycling capabilities. The ECSR50 is a Class RK5 fuse, suitable for non-indicating applications. It features ferrule ends on both sides, making it easy to install in existing electrical systems. The fuse operation includes a 10-second response time at 500% of rated current, ensuring protection in high fault conditions.

• Rated at 50 amps for standard applications.
• Features a 200 kAIC interrupt rating for significant fault protection.
• Constructed to meet CSA C22.2 and UL standards.

Product Highlights

This fuse is ideal for use in industrial facilities and security systems. It provides reliable protection against overloads and faults.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Edison Fuse

Technical Specifications

• Amperage: 50 Amp
• Voltage: 600 Volt
• Diameter: 1.06 Inch
• Length: 5.5 Inch
• Element: Dual
• End Type: Ferrule
• Interrupt Rating: 200 kAIC
• Enclosure Material: Stainless Steel
