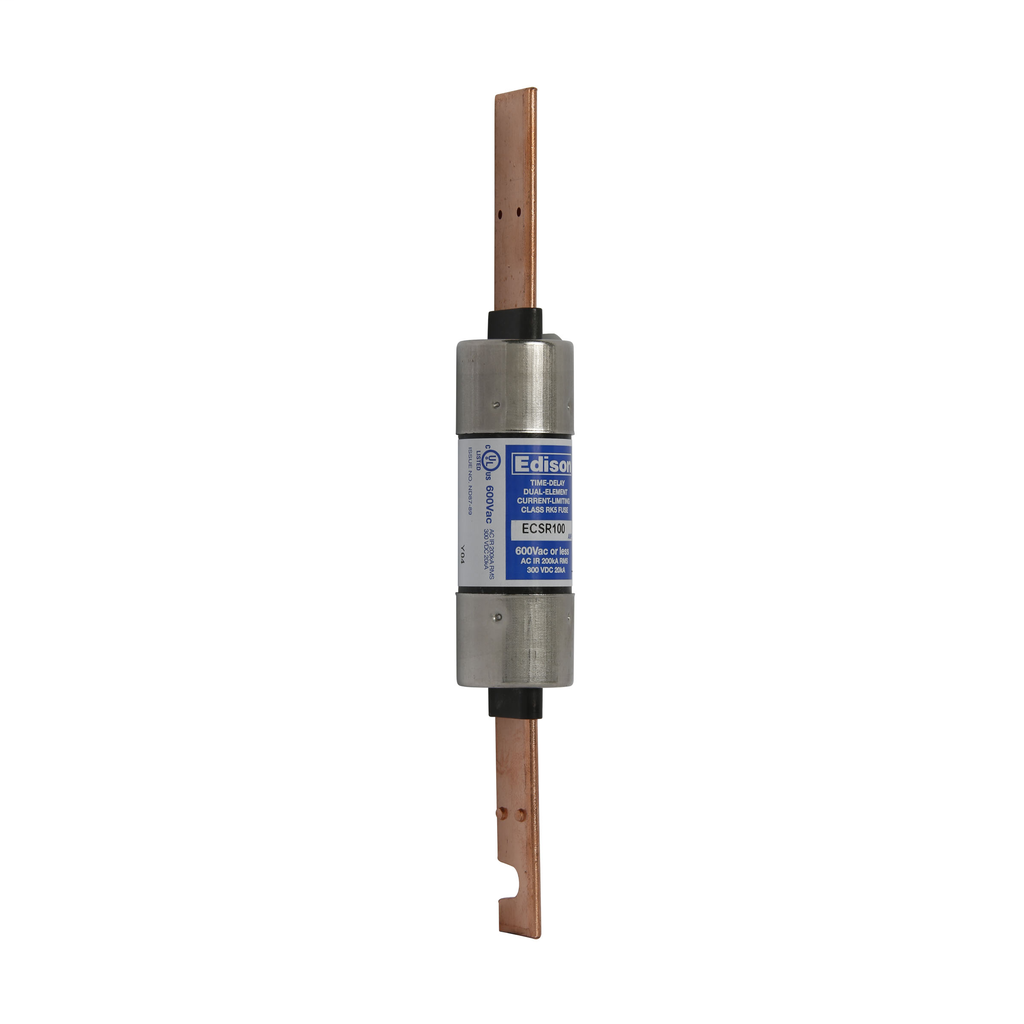

Bussmann ECSR100 BUSS ECSR100 UL CLASS RK-5 TIME DEL

Product Description

The Bussmann ECSR100 is a time-delay, current-limiting fuse designed for reliable circuit protection. This fuse is ideal for use in AC power distribution systems, feeders, and branch circuits, particularly for motors and inductive loads. The product has a rating of one hundred amps and operates at six hundred volts.

• Current limiting and time-delay capabilities
• 200 kAIC interruption rating
• Blade end x blade end connection

Product Highlights

This fuse offers superior overload and cycling capabilities with a response time of ten seconds at five hundred percent.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Edison Fuse

Technical Specifications

• Type: Current Limiting, Time-Delay
• Class: Class RK5
• Voltage Rating: 600 Volt
• Amperage Rating: 100 Amp
• Diameter: 1.11 Inch
• Length: 7.88 Inch
• Weight: 0.38 lb
• Interrupt Rating: 200 kAIC
• Applications: Suitable for AC power distribution system mains, motors, transformers, and lighting.
