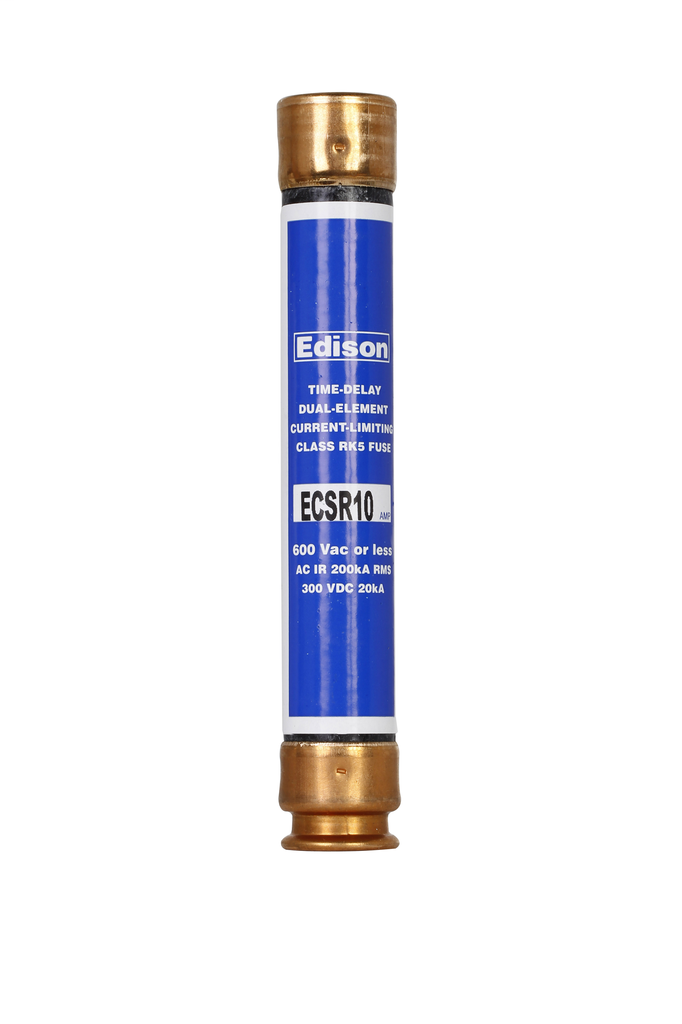

Bussmann ECSR10 BUSS ECSR10 UL CLASS RK-5 TIME DELA

Product Description

The Bussmann ECSR10 is an Edison Fuse designed for power distribution applications. This UL Class RK-5 time-delay fuse provides protection from overloads and short circuits. It operates at ten amps and is rated for a voltage of six hundred volts. The fuse has dual elements and is built to withstand interruptions up to two hundred kAIC. The ECSR10 features ferrule connections on both ends, making it easy to install in various applications.

• Rated voltage: 600 V
• Current rating: 10 A
• Time delay: 10 seconds at 500%

Product Highlights

The Bussmann ECSR10 is ideal for industrial facilities, especially for safety and security systems. It's built to provide reliable overload protection and features a robust construction for enhanced durability.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Edison Fuse

Technical Specifications

• Catalog Number: ECSR10
• Type: Current Limiting, Time-Delay
• Length: 5 inches
• Diameter: 0.81 inches
• End Type: Ferrule
• Weight: 0.17 lb
• Response Time: 10 seconds at 500%
• Applications: Industrial Facilities & Factories - Safety and Security Systems
