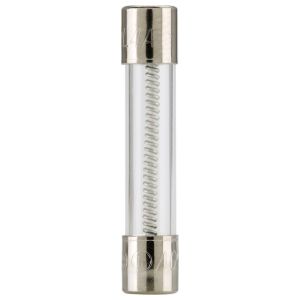

Bussmann (Eaton) MDL-V-1-R Eaton MDL Series Time-delay Fuse 1A 250 Vac 32 Vdc (self certified)

Product Description

The Bussmann (Eaton) MDL-V-1-R is a time delay fuse designed for electronic circuits. This fuse meets the UL 248-14 standard for overcurrent protection. It is made to handle inrush currents that can occur when equipment starts. The preferred installation method is inside a Bussmann Series fuse holder, block, or clip. It can also be ordered with axial leads for thru-hole installation.

• Fuse type: Time delay, glass tube
• Dimensions: one-fourth inch by one and one-quarter inches
• Rated for voltage: 250 Vac, 32 Vdc

Product Highlights

This fuse is essential for protecting delicate electronic components from damage due to overcurrent.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: 25088421

Technical Specifications

• ECCN: EAR99
• Country of Origin: TW - Taiwan
• UNSPSC: 39121607
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Shape: Rectangular
• Fuse Interrupt Rating: 14 kAIC at 125 Vac
• Width: 0.25 in.
• Fuse Amps: 1A
• Height: 0.25 in.
• Length: 1.25 in.
• Rated Voltage: 250 Vac, 32 Vdc (self certified)
