Bussmann (Eaton) MDL-1/8-R MDL Series Time Delay Fuse Glass Tube 1/8A 250VAC 1/4 x 1-1/4 in.

Product Description

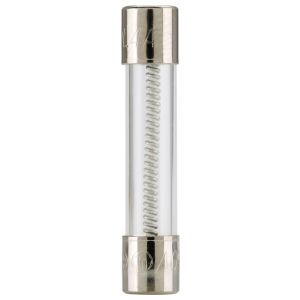

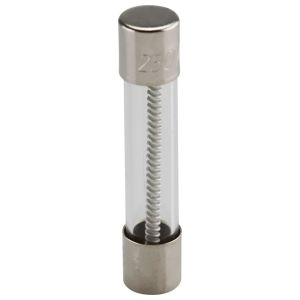

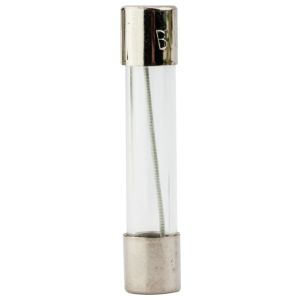

The Bussmann (Eaton) MDL-1/8-R is a time delay fuse designed for protecting circuits with a current of one eighth of an amp at two hundred fifty volts AC. This glass tube fuse measures one quarter inch by one and one fourth inches and complies with RoHS standards. It is widely used in various applications including commercial electrical systems, renewable energy systems, and data center installations.

• Rated for one eighth ampere at two hundred fifty volts AC.
• Size: one quarter inch in diameter and one and one fourth inches long.
• Comes with a time delay feature to handle inrush currents.

Product Highlights

Efficient protection for electrical circuits and devices.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• MPN: MDL-1/8-R

Technical Specifications

• Fuse Amps: 1/8A
• Rated Voltage: 250Vac, 32Vdc
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Shape: Rectangular
• Width: 0.25 in.
• Height: 0.25 in.
• Length: 1.25 in.
• Fuse Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
