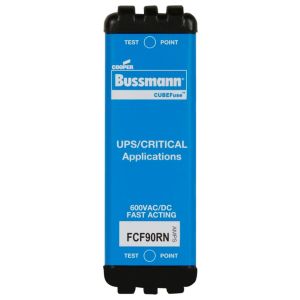

Bussmann (Eaton) FCF90RN Fast Acting Fuse 90A 600V ac/dc 200 kA Holder Mount Class CF

Product Description

The Bussmann (Eaton) FCF90RN is a fast acting fuse designed to provide reliable protection in electrical systems. This fuse operates at ninety amps with a voltage rating of six hundred volts for both AC and DC applications. It features a compact design suitable for holder mount installations.

• Fast acting fuse type 90A
• Rated for 600V AC and DC applications
• Compact dimensions for efficient space use

Product Highlights

The fast acting fuse offers quick response times and high interrupting ratings. It is ideal for applications requiring reliable operation under varying conditions.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: FCF90RN

Technical Specifications

• Fuse Type: Fast Acting Fuse
• Fuse Amps: 90A
• Rated Voltage: 600Vac, 600Vdc
• Height: 2.125 inches
• Width: 1 inch
• Length: 3.01 inches
• Fuse Dimension: 2.99 L x 1.23 H x 0.98 W inches
• Response Time: 8 min at 200%
• Fuse Interrupt Rating: 200 kAIC at 600 Vac | 50 kAIC at 600 Vdc
• Country of Origin: CN - China
• Shape: Rectangular
• Class: Class CF
• Color Family: Black
• UNSPSC: 39121606
