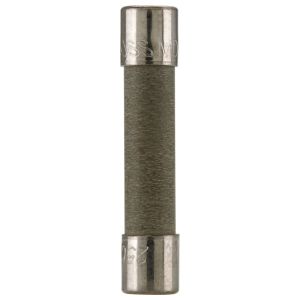

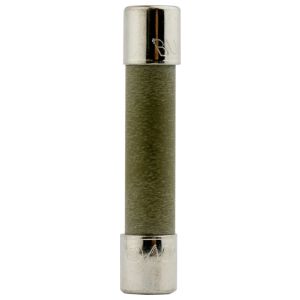

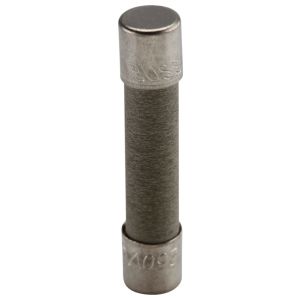

Bussmann (Eaton) BK/MDA-10-R Time Delay Fuses 10 A 250 V ac

Product Description

The Bussmann (Eaton) BK/MDA-10-R is a time delay fuse designed for various electrical applications. This fuse can handle a current of ten amps at a voltage of two hundred fifty volts alternating current.

• Time Delay Functionality
• Dimensions: 1.25 inches in length and a quarter inch in diameter
• Fuse Interrupt Rating: 200 AIC at 250 Vac

Product Highlights

The fuse is suitable for commercial and residential electrical setups. Ideal for applications where protection from overloads is necessary.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: BK/MDA-10-R

Technical Specifications

• Fuse Amps: 10A
• Rated Voltage: 250Vac, 32Vdc (self certified)
• Fuse Dimension: 1-1/4 L x 1/4 in. Dia.
• Response Time: 60 min at 135%, 120 sec at 200%
• Shape: Rectangular
• Country of Origin: CN - China
• ECCN: EAR99
• Width: 0.25 in.
• Height: 0.25 in.
• Length: 1.25 in.
• Fuse Interrupt Rating: 200 AIC at 250 Vac | 10 kAIC at 125 Vac
• UNSPSC: 39121611
