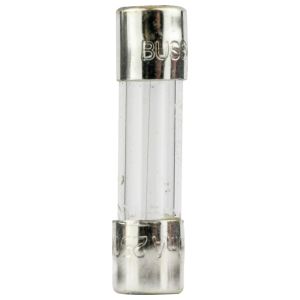

Bussmann (Eaton) BK/GMC-3-R GMC Series Medium Time Delay Fuse Glass Tube Low Breaking Capacity 3A 250V

Product Description

The Bussmann (Eaton) BK/GMC-3-R is a medium time delay glass tube fuse designed for electronic circuit protection. This fuse has a rating of three amps and operates at two hundred fifty volts. It is ideal for various applications where overcurrent protection is required.

• Low breaking capacity for safe operation.
• Designed to comply with UL 248-14 standards.
• Can be used in Bussmann Series fuse holders or clips.

Product Highlights

The BK/GMC-3-R features a medium time delay, ensuring that normal inrush currents do not cause nuisance blowing. It is a reliable solution for circuits needing safeguarding against overcurrent.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: 25142150

Technical Specifications

• Fuse Amps: 3A
• Rated Voltage: 125Vac, 32Vdc
• Response Time: 60 min at 135%, 2 min at 200%
• Fuse Interrupt Rating: 10 kAIC at 125 Vac | 100 AIC at 250 Vac
• Length: 0.7874 in.
• Width: 0.1969 in.
• Height: 0.19 in.
• Shape: Rectangular
