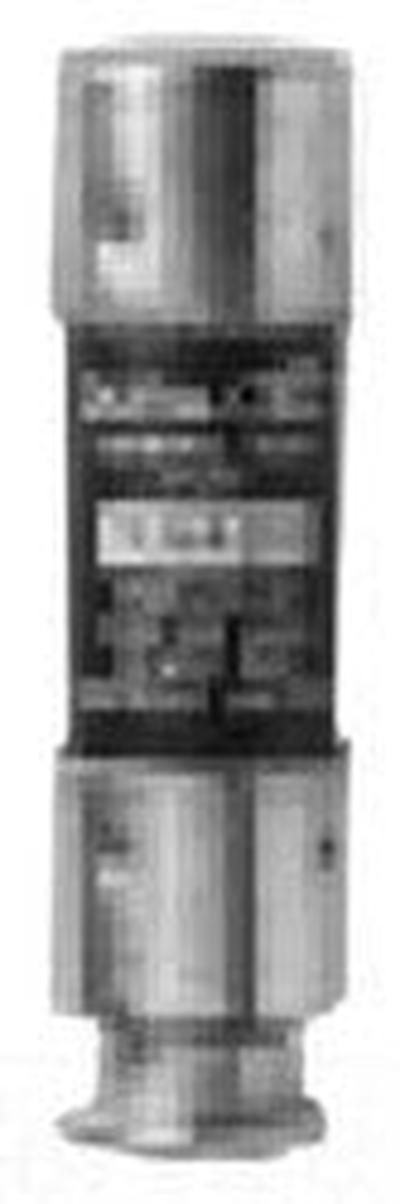

BUSSMANN DLN-R40 250V RK5 TD FS

Product Description

The Bussmann DLN-R40 is a 250V RK5 time-delay fuse designed for specific electrical applications. This fuse is rated for forty amperes and can handle a significant interrupting rating of two hundred thousand amperes symmetrical. It features dual element characteristics for added protection and a time delay of ten seconds at five hundred percent rated load. The product is suitable for both alternating current and direct current use, with a voltage rating of 250 VAC and 125 VDC. The fuse is equipped with ferrule terminals for secure connections and has physical dimensions of zero point eighty-one inches in diameter and three inches in length.

• Time delay of ten seconds at five hundred percent rated load
• Interrupting rating of two hundred thousand amperes
• Dual element characteristics for enhanced safety

Product Highlights

This fuse is ideal for a wide range of electrical protection applications, including motor circuits and power electronics.

Product Information

Standard Information

• Manufacturer: Bussmann
• Family Group: Fuses/Accessories
• UPC: 05171234015

Technical Specifications

• MPN: DLN-R40
• Voltage Rating: 250 VAC / 125 VDC
• Current Rating: 40 Amperes
• Diameter: 0.81 inches
• Length: 3 inches
• Interrupting Rating: 200000 Amperes (Symmetrical)
• Interrupting Rating (DC): 20000 Amperes
• Terminal Type: Ferrule
