Bussmann CHM1DU CHM1DU 1P 30A FS HLDR (1 PACK)

Product Description

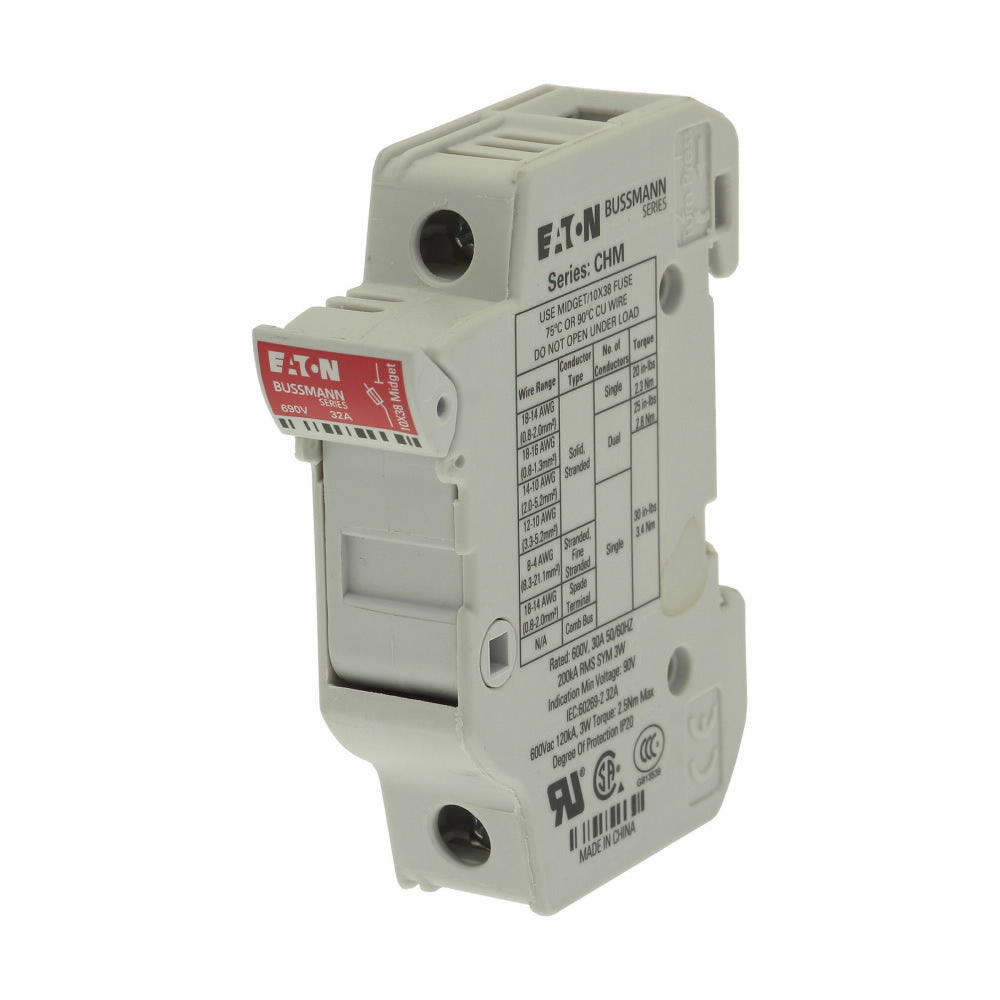

The Bussmann CHM1DU is a modular fuse holder suitable for various electrical assemblies. It is designed for one pole with a rating for thirty amps under UL standards and thirty-two amps under IEC standards. The fuse holder can accommodate fuses measuring ten millimeters by thirty-eight millimeters.

• Compatible with numerous electrical assemblies and panels.
• UL and IEC listed for safe and reliable operation.
• Standard RoHS compliant for environmental safety.

Product Highlights

This modular fuse holder is ideal for low voltage applications and is made for DIN rail mounting.

Product Information

Standard Information

• Manufacturer: Bussmann
• Vendor: 171200

Technical Specifications

• Amperage Rating: 30 Amp (UL); 32 Amp (IEC)
• Voltage Rating: 600 Volt (UL); 690 Volt (IEC)
• Operating Temperature: -20 to 120 degrees C
• Fuse Size: 10 mm x 38 mm
• Mounting Type: DIN Rail
• Conductor Size: 18-4 AWG (Load/Line)
• Dimensions: 8 inches length x 2 inches width x 2 inches height
• Standards: UL Listed, CSA Certified, IEC, RoHS Compliant
