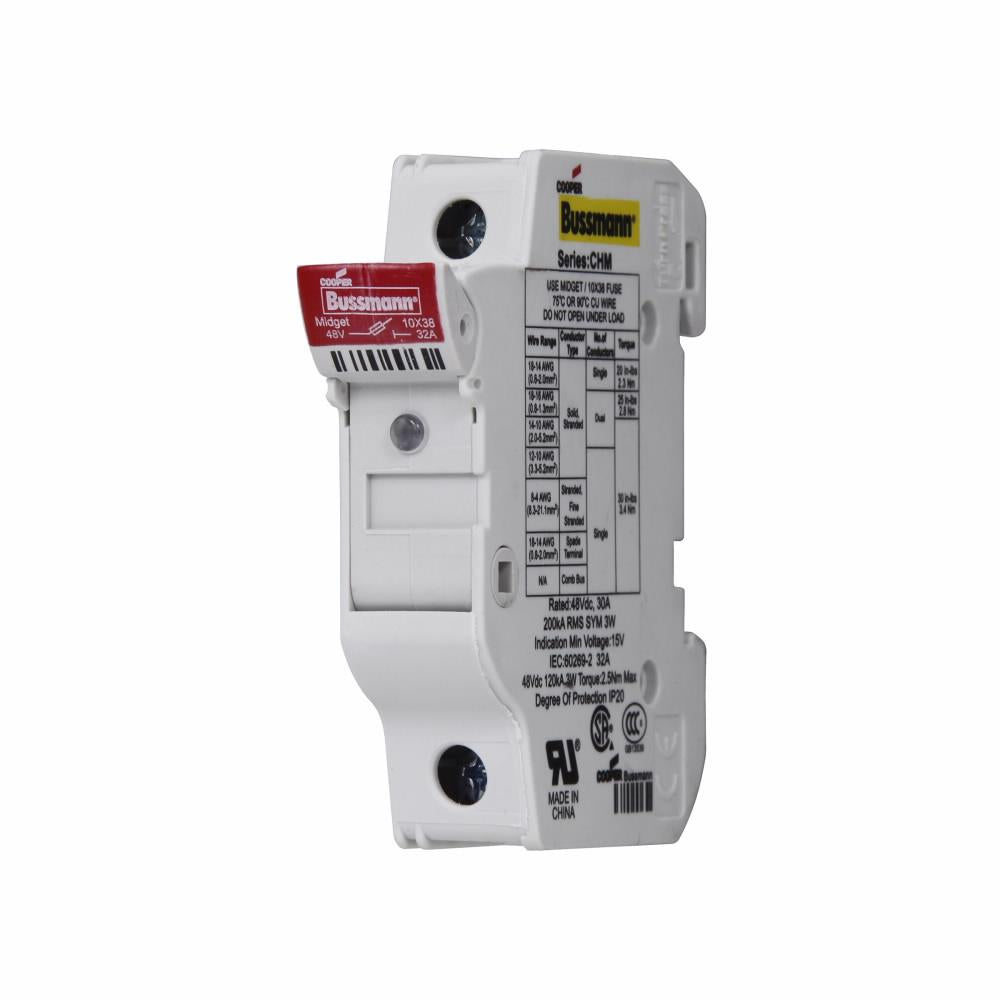

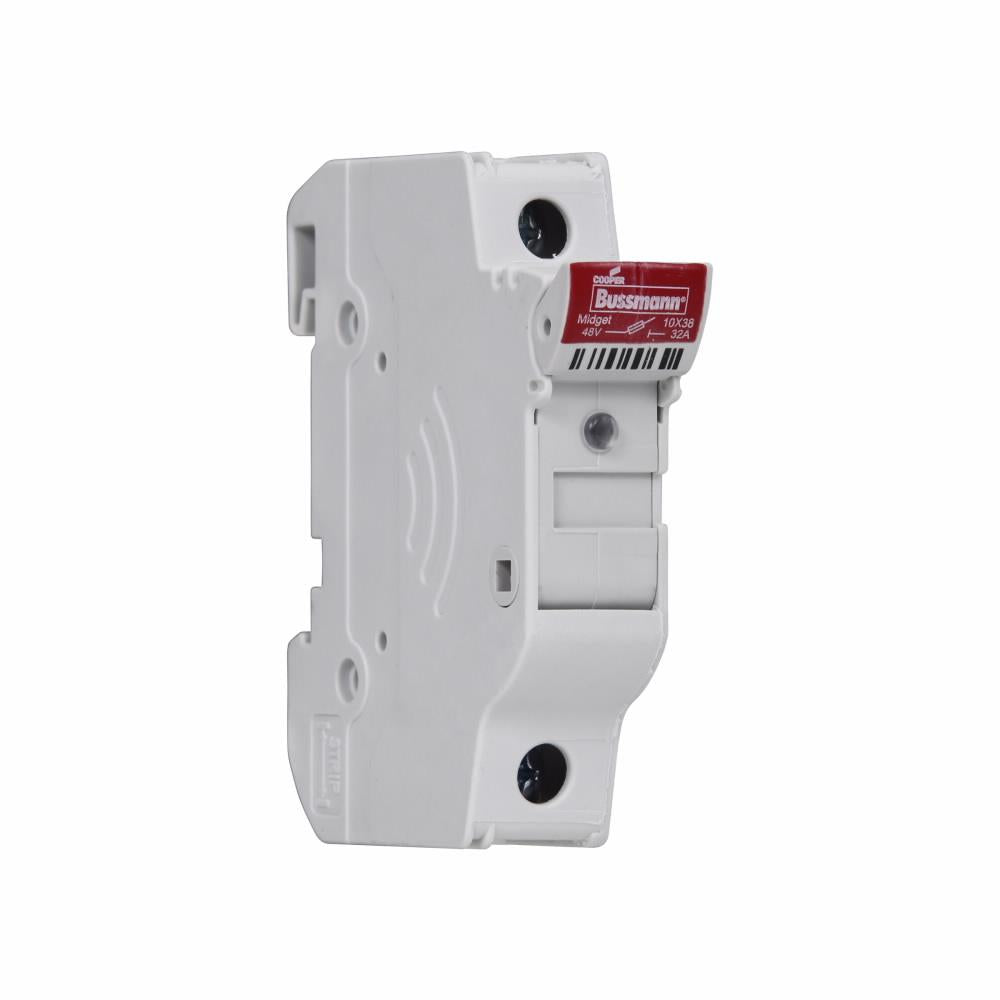

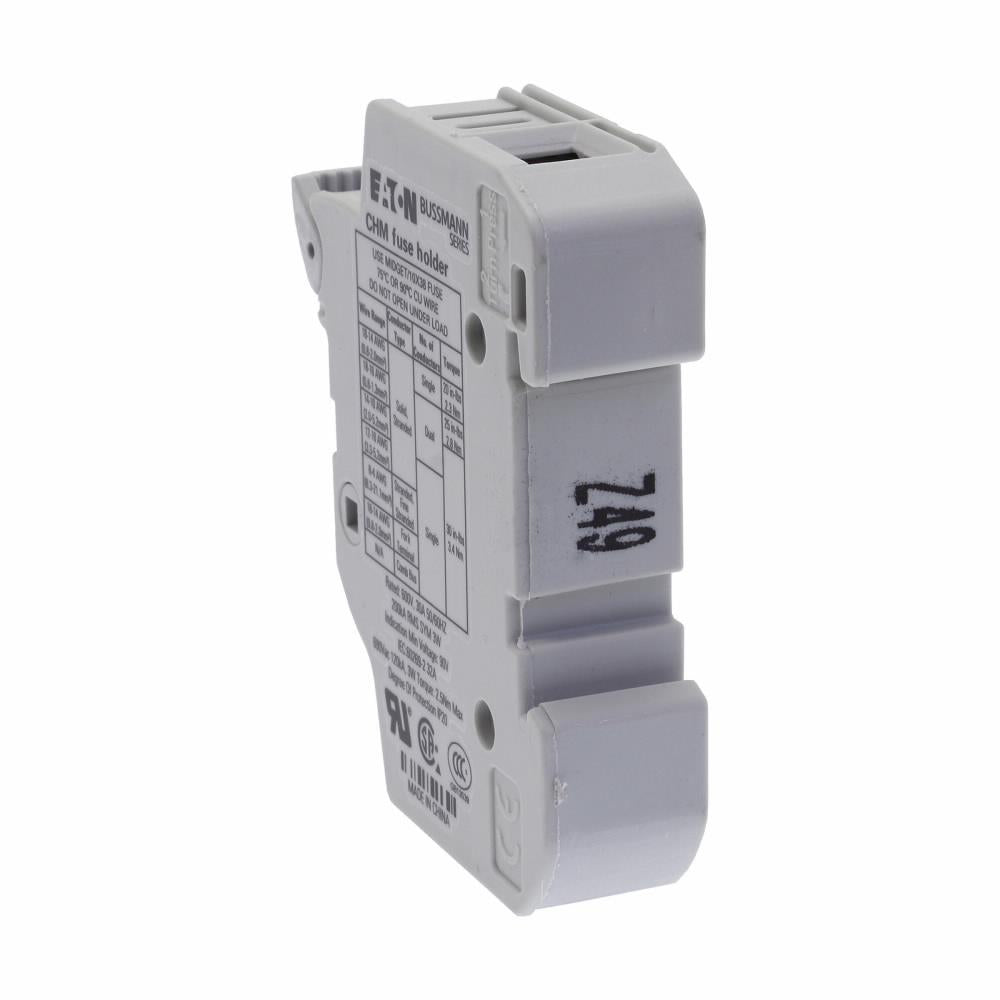

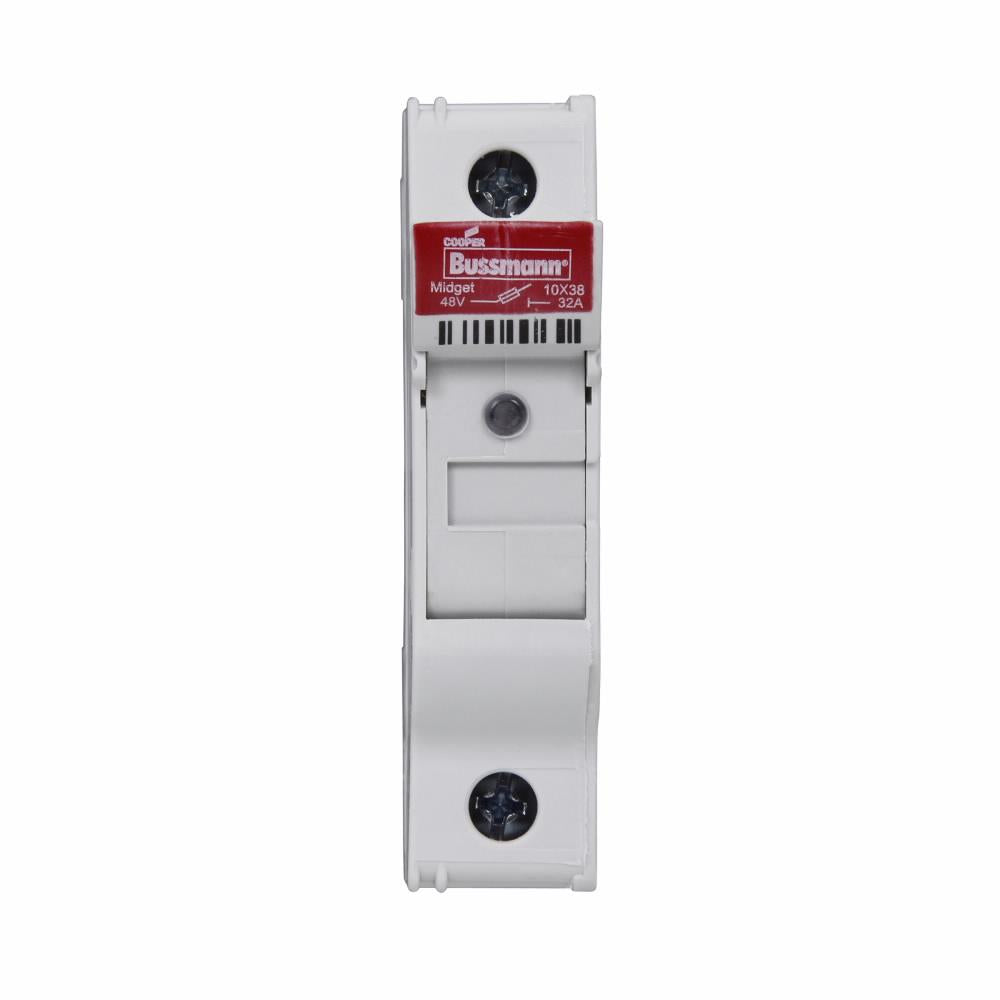

EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A
EATON Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A

Bussmann CHM1DIU Modular Fuse Holder 600/690 V 30/32 A

EATON
Brand: EATON
SKU: CHM1DIU
Availability: In Stock

Ships via freight in 1-3 business days
$78.73
$78.73
LTL Delivery

This product weighs 0 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Bussmann modular fuse holder CHM1DIU is designed for use with AGU, C10G, C10M, and CHM fuses. It operates at voltages up to six hundred ninety volts and handles current ratings of thirty to thirty-two amps. This holder is suitable for applications requiring a single pole and accepts wires ranging from eighteen to four AWG.

  • Voltage Rating: 600/690 volts
  • Current Rating: 30/32 amps
  • Compatible with 10 mm x 38 mm fuses

Product Highlights

This modular fuse holder is UL recognized and features a factory assembled neutral pole option.

Product Information

Standard Information

  • Manufacturer: Eaton
  • Brand: Bussmann

Technical Specifications

  • Type: Modular
  • Series: CH Series
  • Amperage Rating: 30/32 A
  • Class: Midget
  • Wire Size: 18 to 4 AWG
  • Fuse Length: 38 mm
  • Fuse Diameter: 10 mm
  • Temperature Rating: -20 to 90 °C
  • Dimensions: 0.689 inches W x 3.275 inches D x 2.909 inches H
  • Number of Poles: 1
  • Suitable For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse
