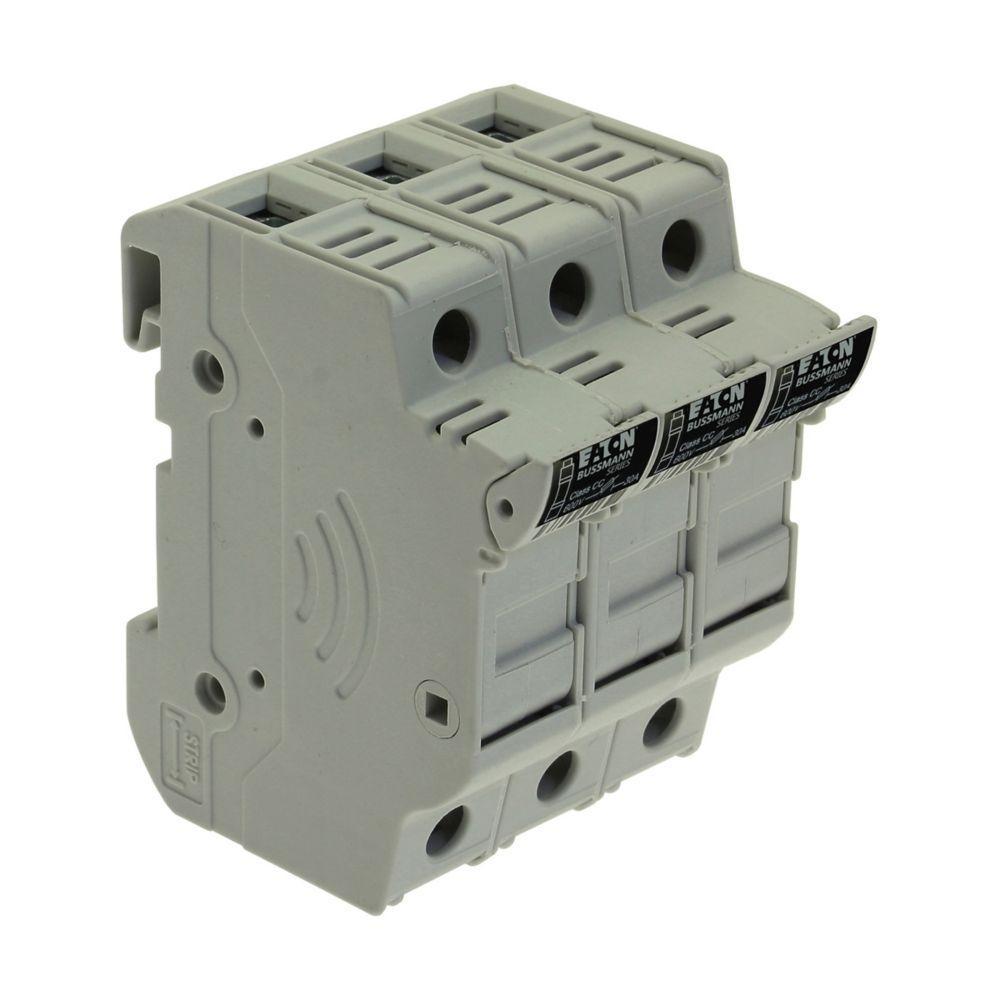

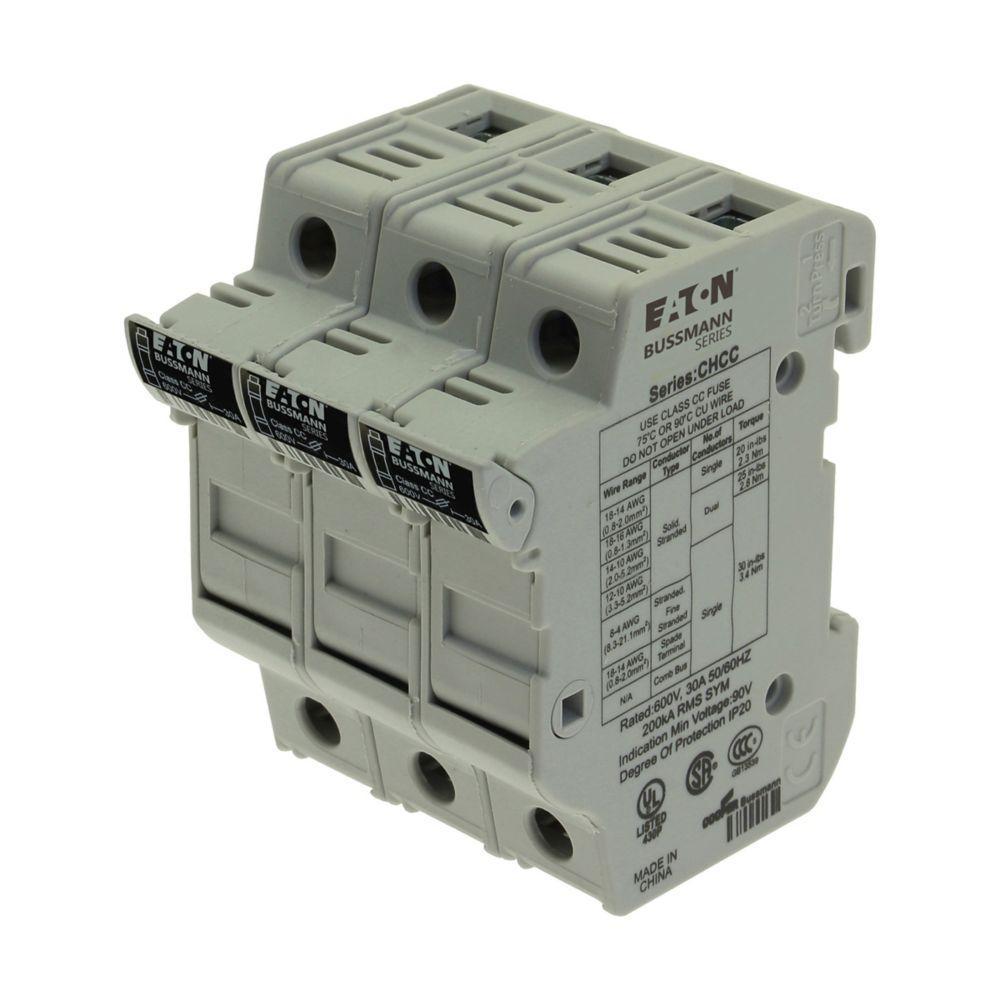

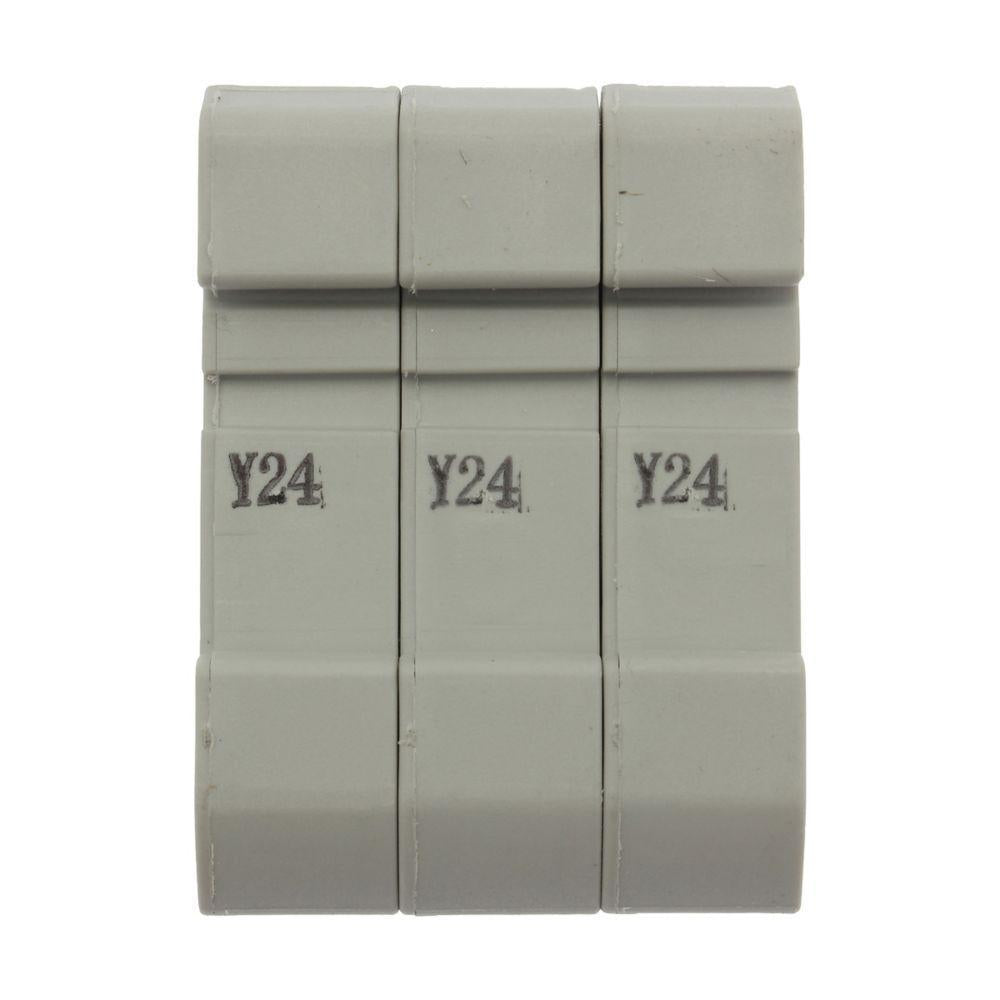

Bussmann CHCC3DU Modular Fuse Holder 48 VDC 30 A

Product Description

The Bussmann CHCC3DU is a modular fuse holder designed for reliable circuit protection. This holder supports a voltage rating of 48 VDC and an amperage rating of 30 A. It features a modular design with three poles and is compatible with wire sizes ranging from 18 to 4 AWG. The Bussmann fuse holder is constructed for durability and is suitable for multiple applications including use with KTK-R, LP-CC, and FNQ-R fuses.

• Voltage Rating: 48 VDC
• Amperage Rating: 30 A
• Number of Poles: 3

Product Highlights

This holder meets electrical safety standards and provides a compact and effective solution for fuse installation.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Type: Modular
• Fuse Diameter: 10 mm
• Fuse Length: 38 mm
• Temperature Rating: -20 to 120 degrees C
• Dimensions: 2.067 in W x 3.275 in D x 2.909 in H
• Suitable For Use With: KTK-R, LP-CC, FNQ-R Fuse
• Wire Size: 18 to 4 AWG
• Series: CH Series
