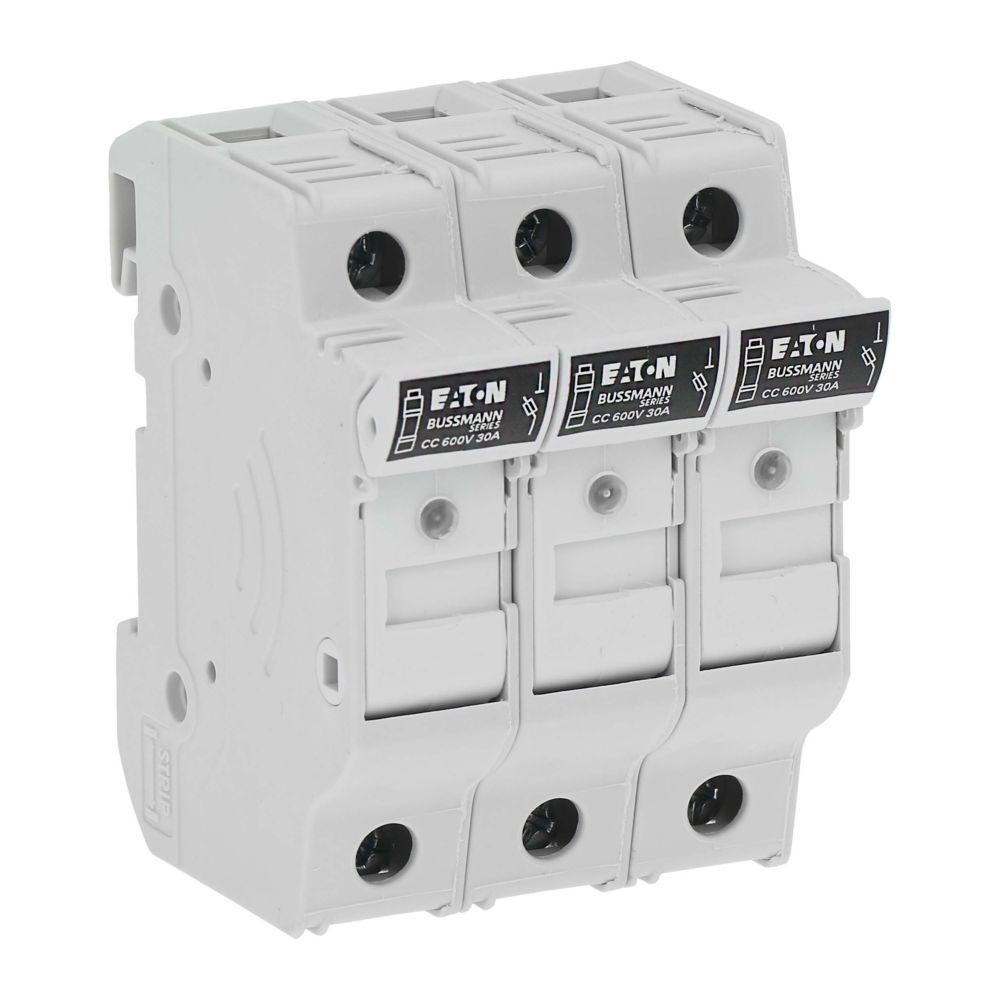

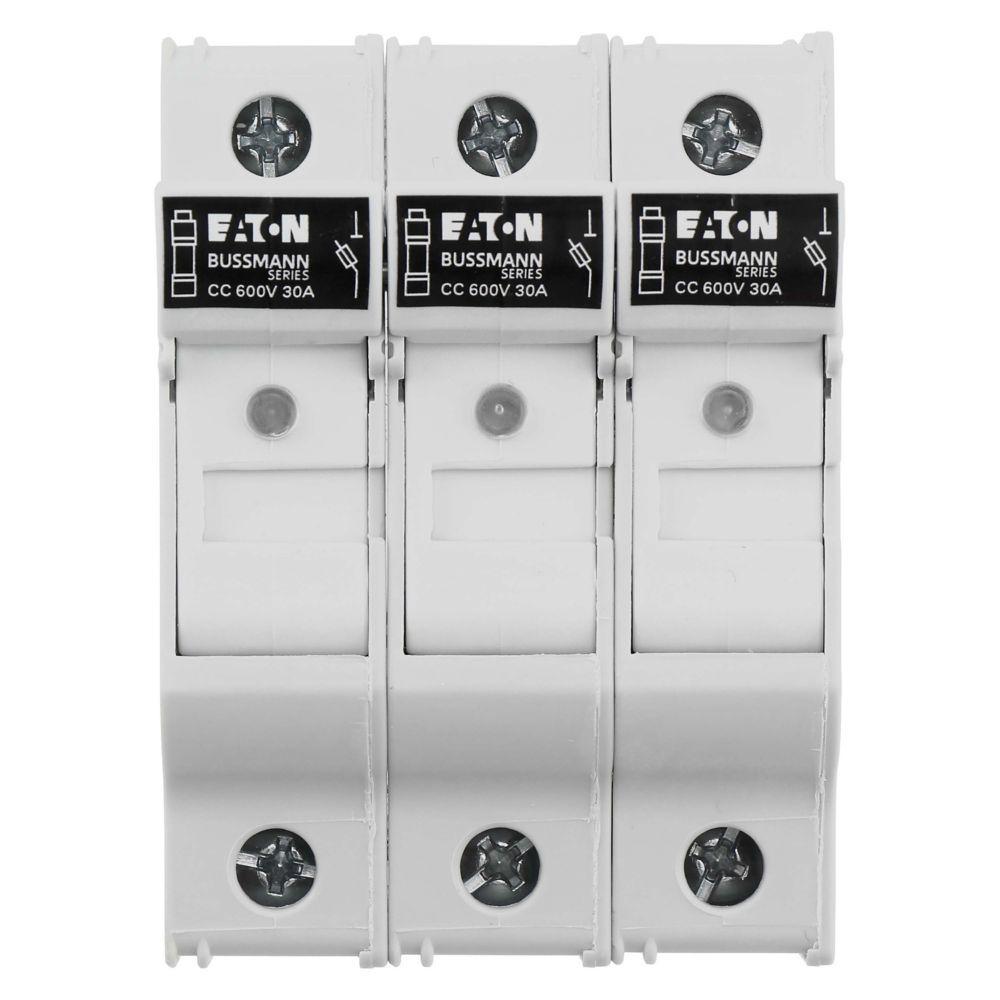

Bussmann CHCC3DIU Finger Safe Modular Fuse Holder 600 VDC 30 A 3 Poles

Product Description

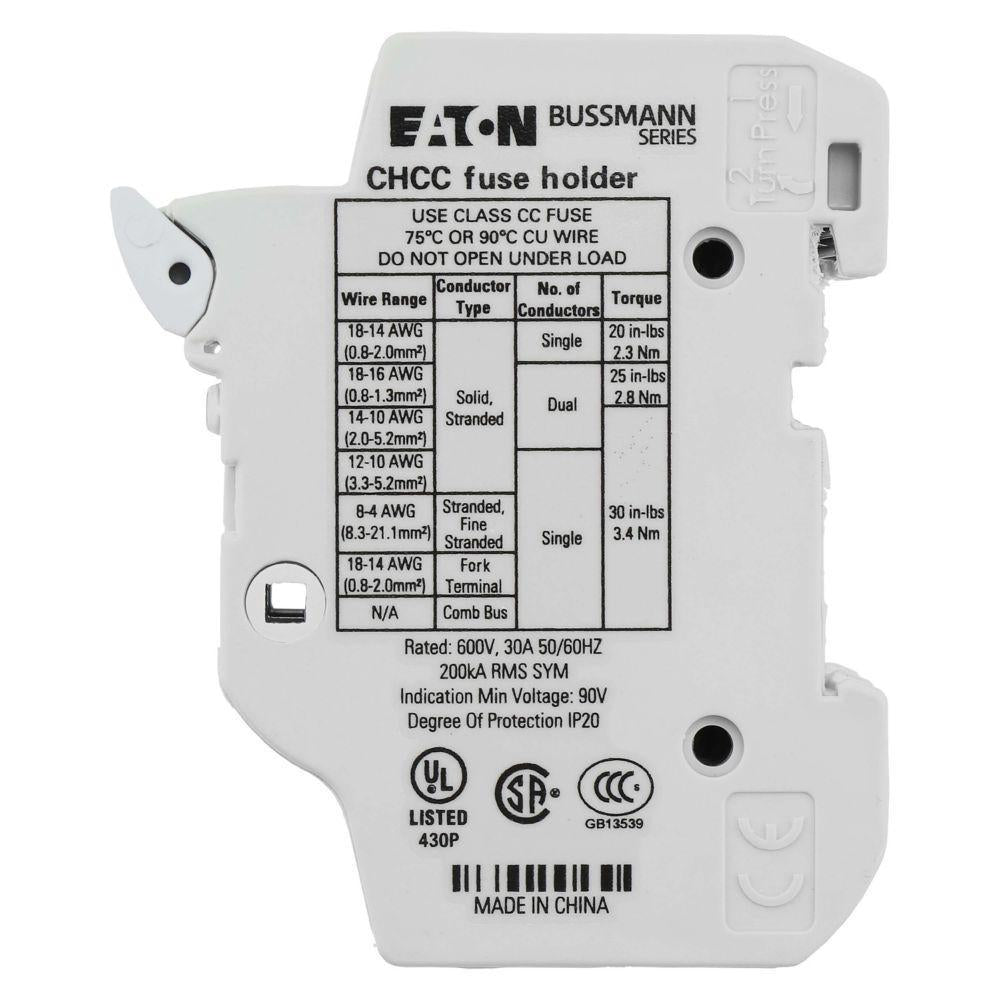

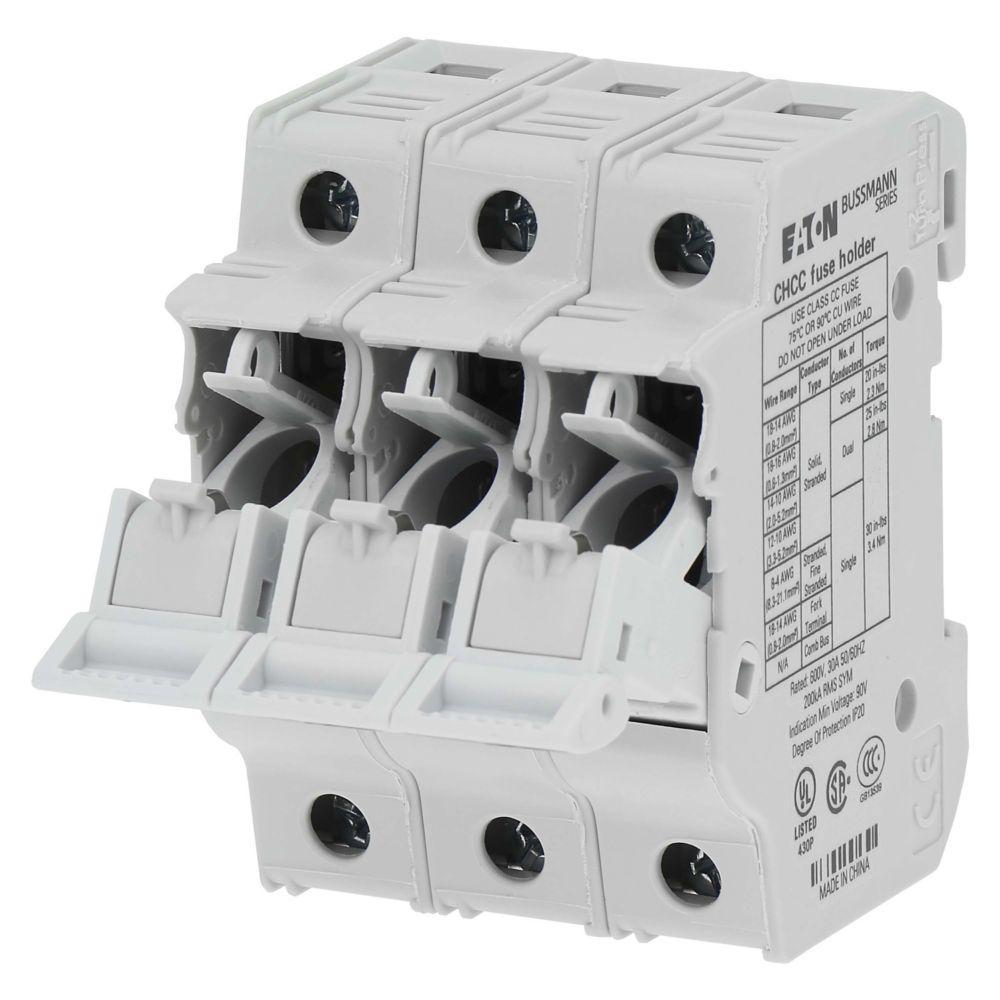

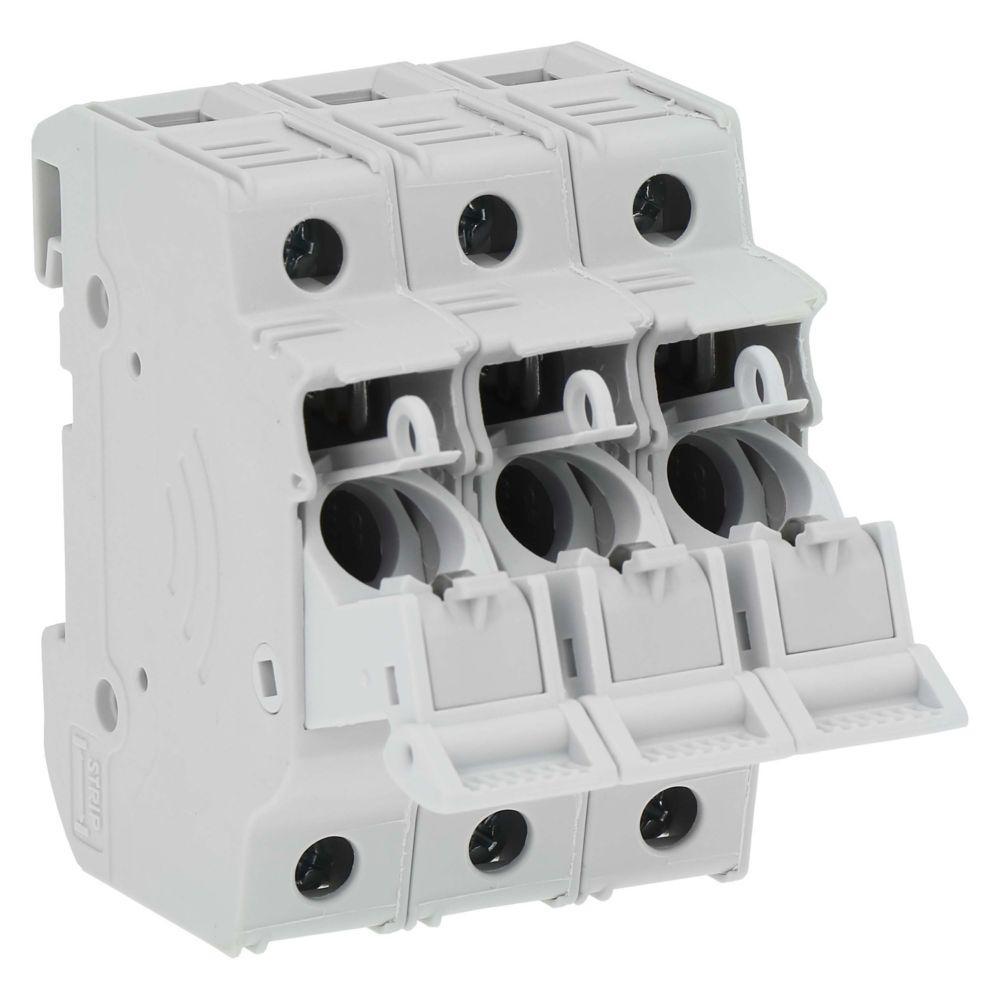

The Bussmann CHCC3DIU is a modular fuse holder designed by Eaton for UL Class CC and midget fuses, as well as IEC 10x38 fuses. This fuse holder features a finger-safe design for added safety and includes an LED indicator. It is available in various versions including single, two-pole, and three-pole configurations and is suitable for different applications. This unit can be easily ganged to fit specific needs.

• Holds UL Class CC or midget fuses.
• Supports wire sizes from 18 to 4 AWG.
• Mounting type: DIN rail.

Product Highlights

The Bussmann CHCC3DIU is built for high performance with a voltage rating of 600 VDC and an amperage rating of 30 A. Its robust design allows operation within a temperature range from -20 to 90 degrees Celsius.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Voltage Rating: 600 VDC
• Amperage Rating: 30 A
• Number of Poles: 3
• Wire Size: 18 to 4 AWG
• Fuse Diameter: 10 mm
• Fuse Length: 38 mm
• Type: Finger Safe Modular
• Connection Type: Spade Lug
