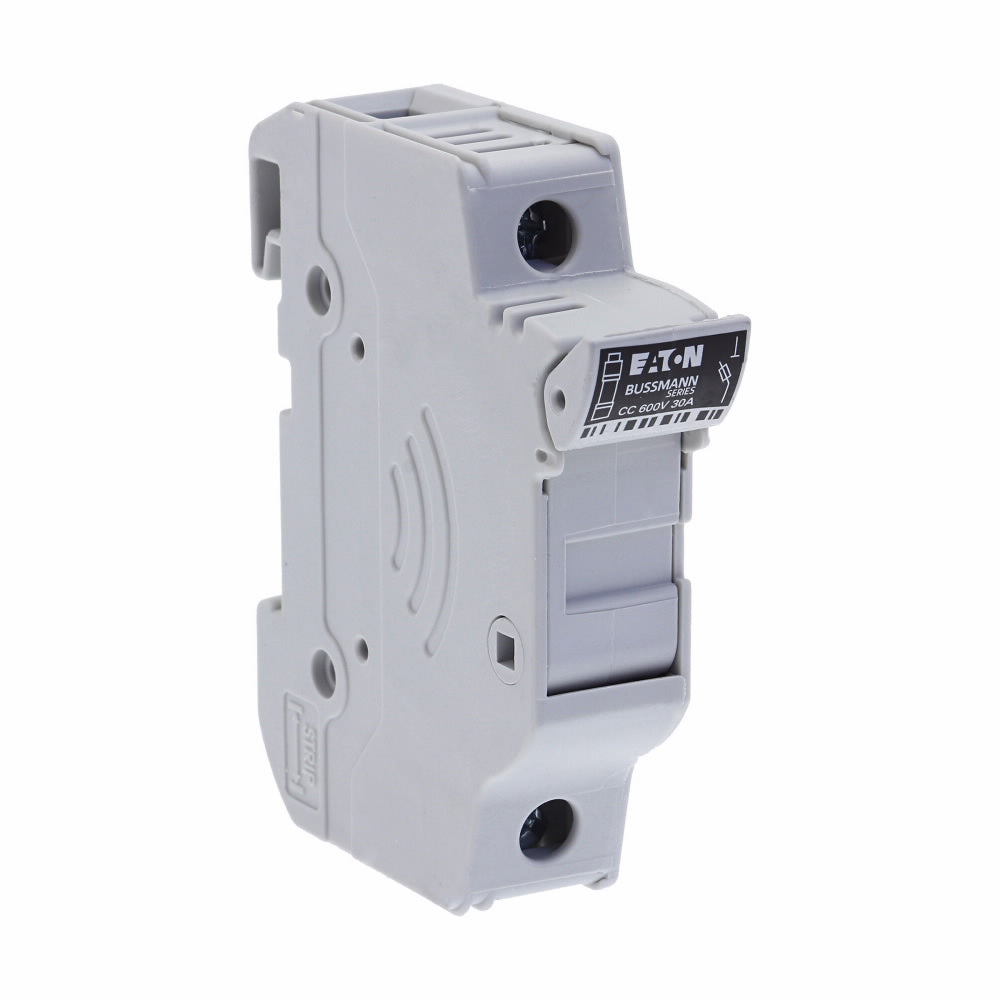

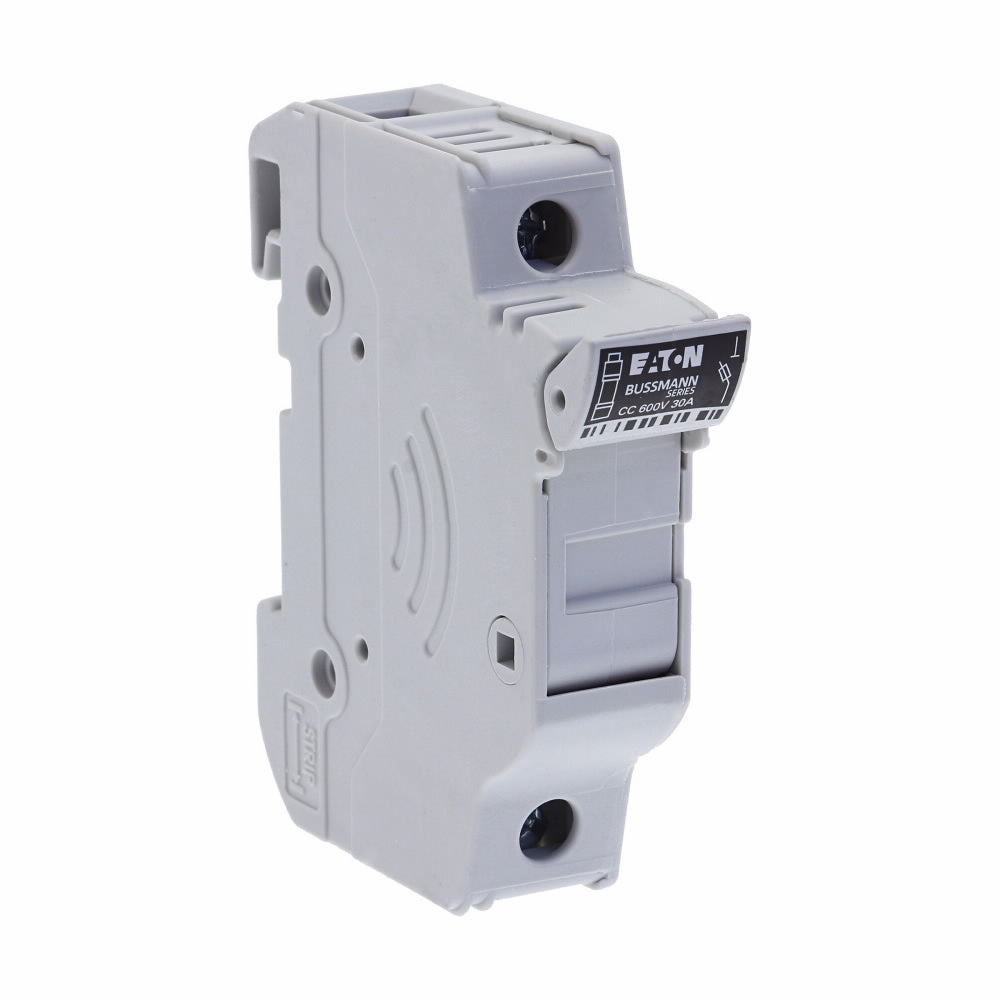

Bussmann CHCC1DU CHCC1DU 1P 30A FS HLDR

Product Description

The Bussmann CHCC1DU is a modular fuse holder designed for electrical assemblies. This fuse holder has a voltage rating of 48 volts DC and a current rating of 30 amps. It features a single-pole configuration, making it an essential component for various electrical applications.

• Durable polyester construction
• Designed for use with Class CC fuses
• Temperature range of -20 to 120 degrees Celsius

Product Highlights

This fuse holder is ideal for use in panels and electrical equipment where Class CC fuses are required. It meets industry standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Bussmann
• Product Type: Modular fuse holder

Technical Specifications

• Voltage Rating: 48 Vdc
• Current Rating: 30 A
• Dimensions: 2.9 inches length x 0.689 inches width x 2.434 inches height
• Number of Poles: 1
• Mounting Type: 35 mm DIN rail
• Standards: UL E14853 IZLT and IZLT2, CSA 47235, RoHS compliant
• Environmental Conditions: V0 flammability rated per UL94
