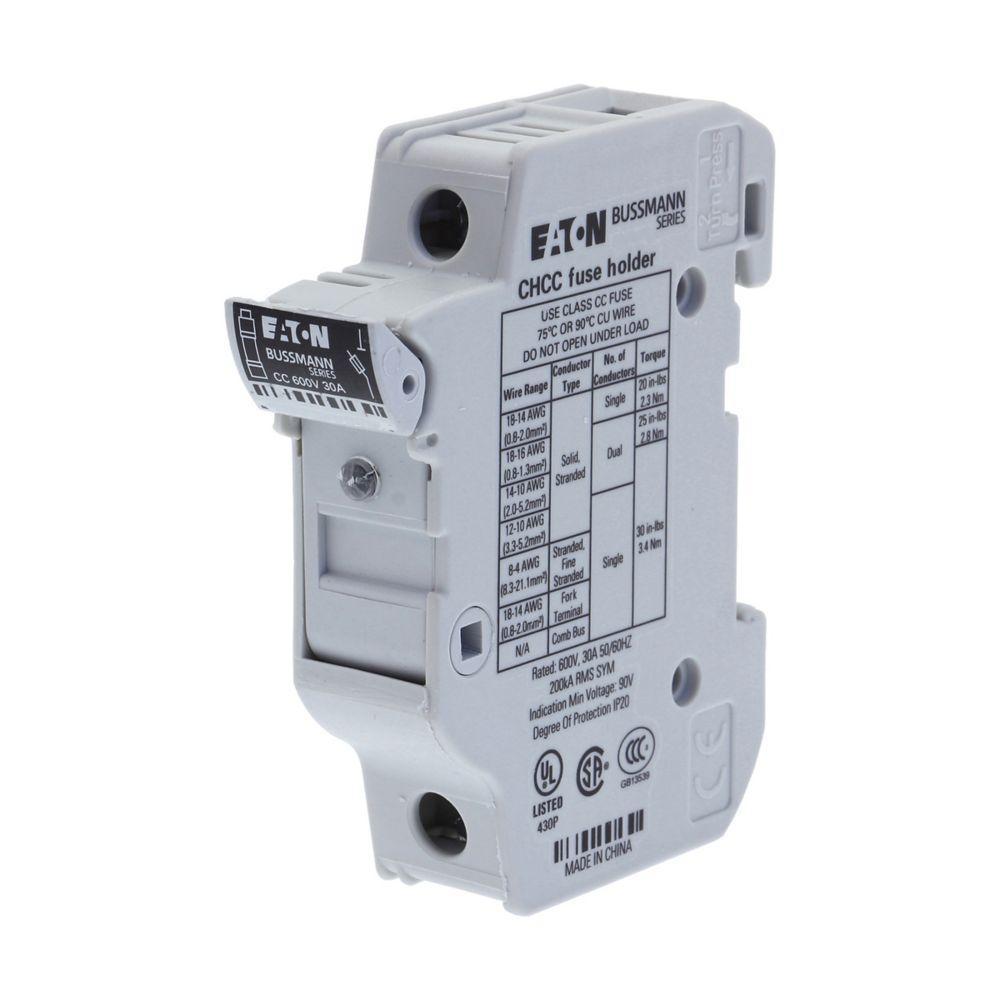

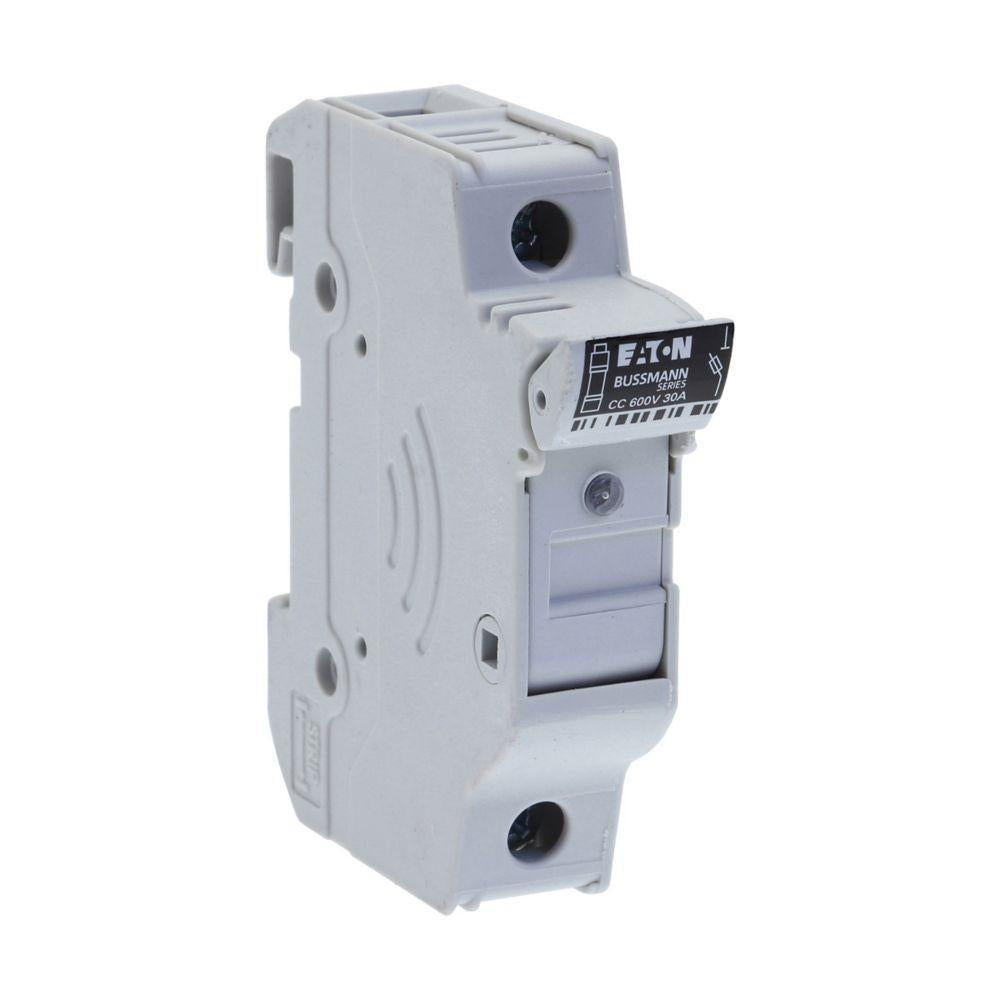

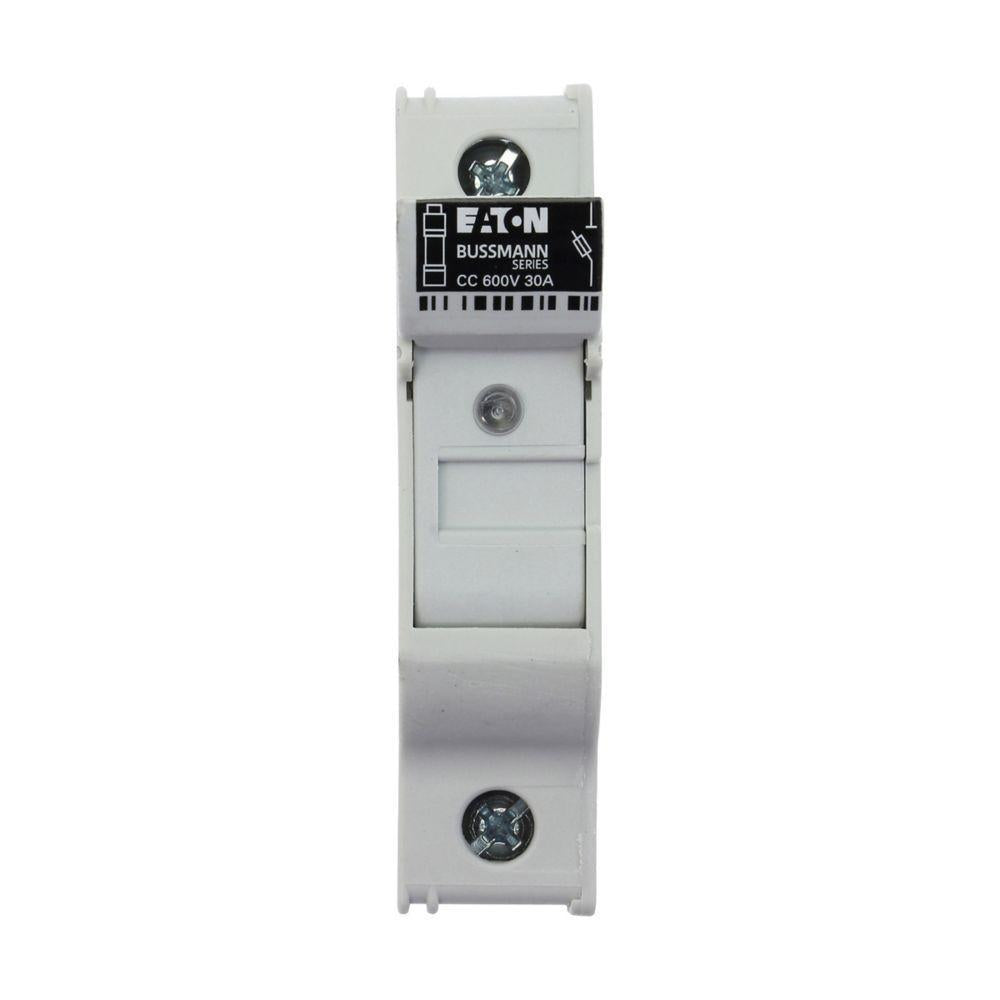

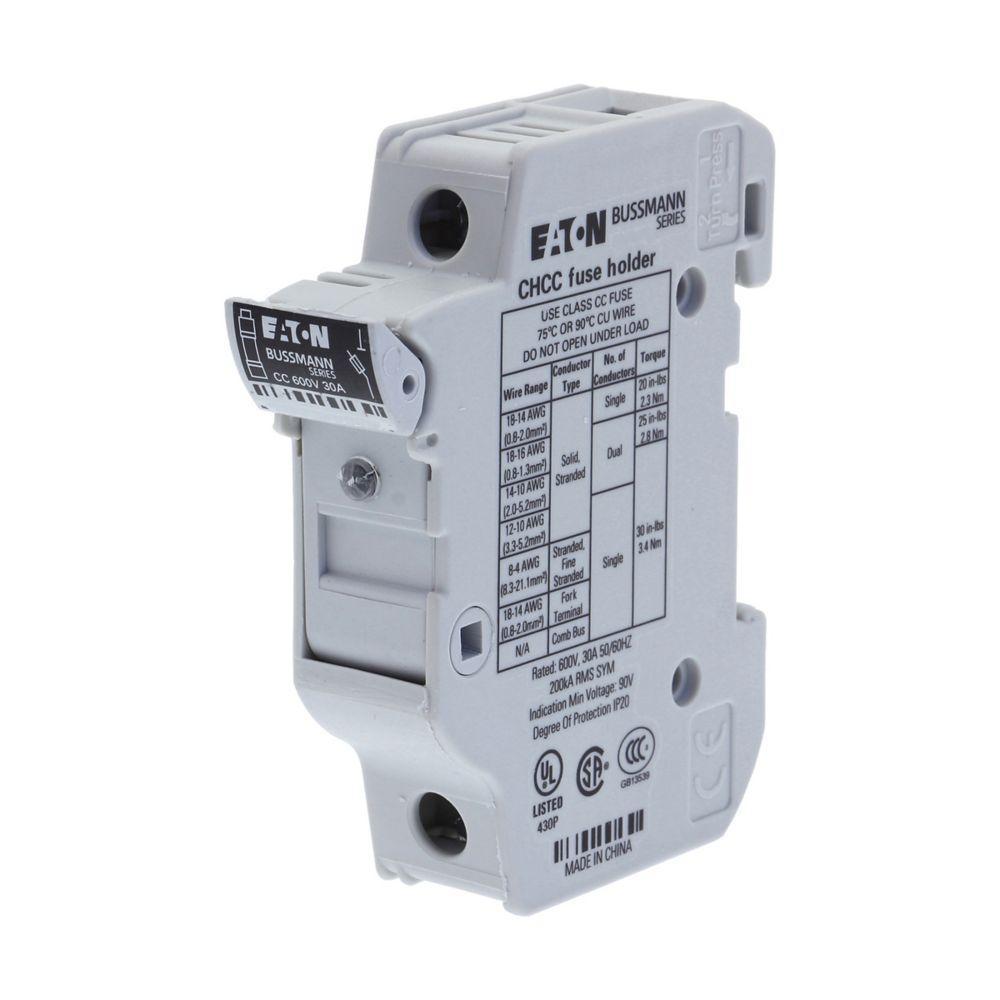

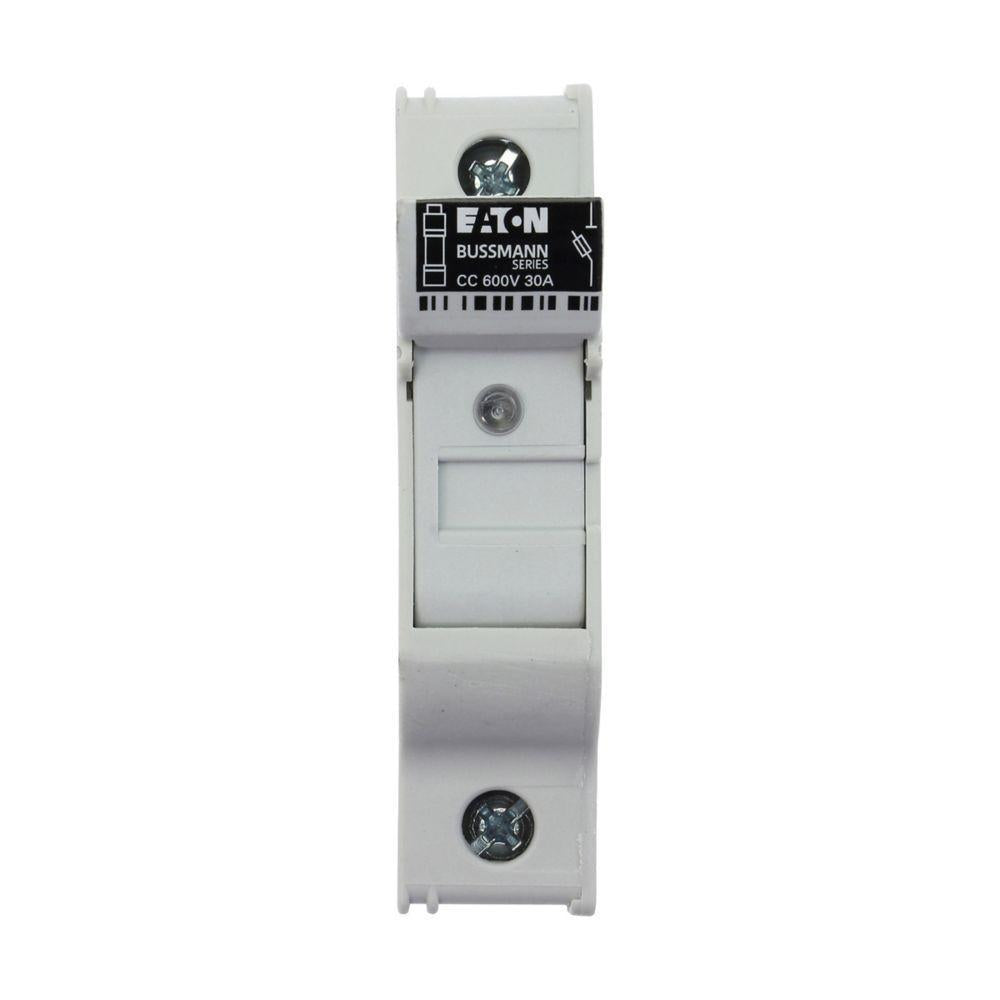

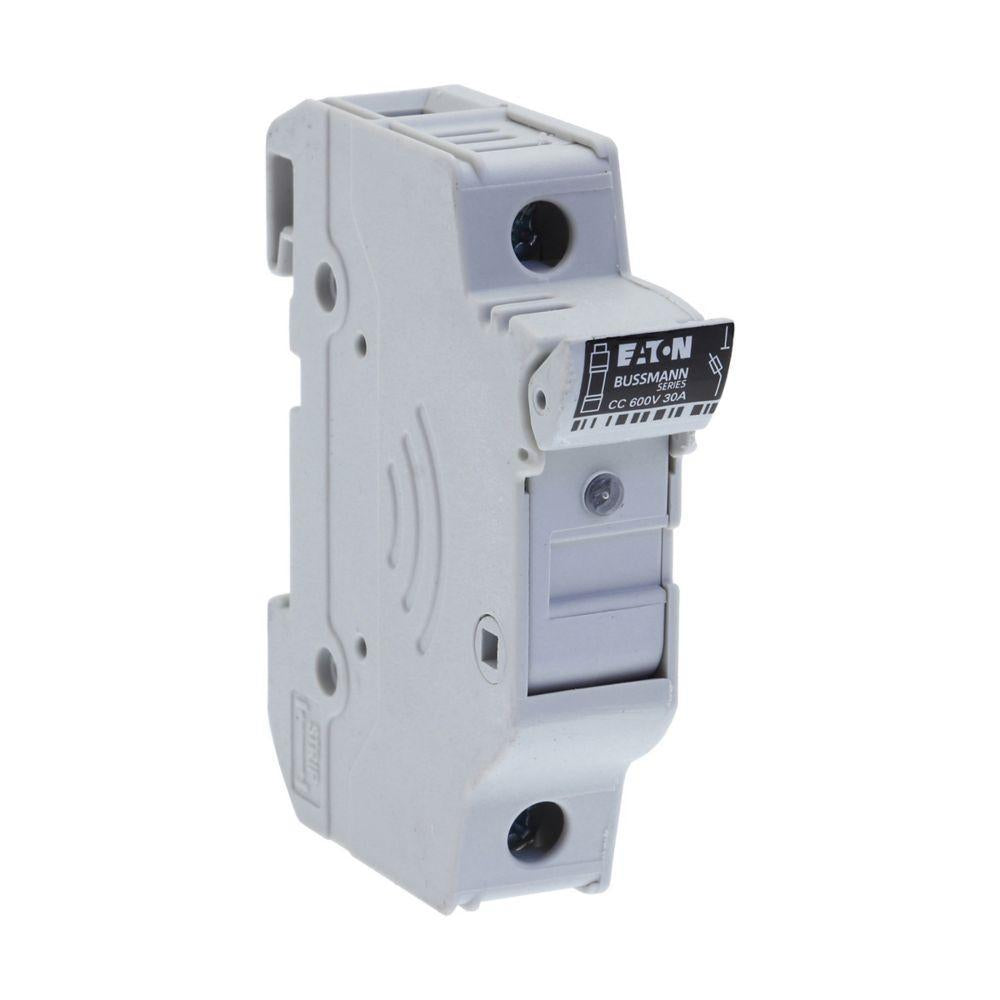

Bussmann CHCC1DIU Finger Safe Modular Fuse Holder 48 VDC 30 A

Product Description

Bussmann CHCC1DIU is a finger safe modular fuse holder designed for safe operation with UL Class CC and midget fuses. This fuse holder supports a voltage rating of 48 VDC and is rated for a 30 A current. The modular design allows for easy installation on DIN rail systems. The fuse holder can accommodate wire sizes from 18 AWG to 4 AWG.

• Finger Safe design for added protection
• Compatible with KTK-R, LP-CC, and FNQ-R Series CC Fuses
• Temperature rated from -20 to 90 degrees Celsius

Product Highlights

This fuse holder is built for durability and flexibility in various applications, enabling tool-less ganging of poles, which simplifies installation for complex systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Type: Finger Safe Modular
• Class: CC
• Connection Type: Spade Lug
• Voltage Rating: 48 VDC
• Amperage Rating: 30 A
• Wire Size: 18 to 4 AWG
• Number of Poles: 1
• Material: Polyester
• Mounting Type: DIN Rail
• Dimensions: 0.689 in W x 3.275 in D x 2.909 in H
• Fuse Length: 38 mm
• Fuse Diameter: 10 mm
• Suitable For Use With: KTK-R, LP-CC, and FNQ-R Series CC Fuse
• Temperature Rating: -20 to 90 degrees Celsius
