Description

Product Description

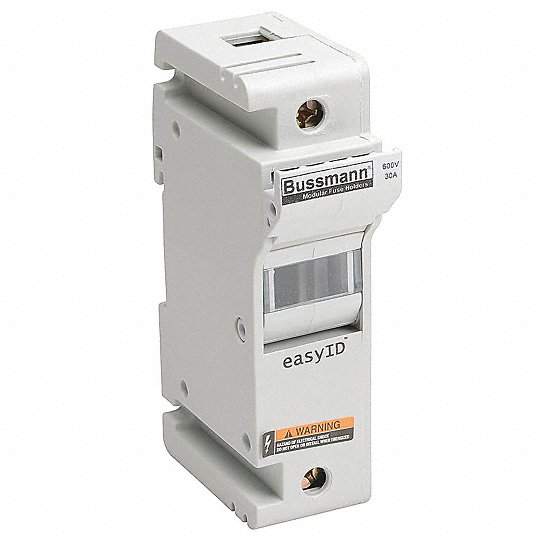

The Eaton BUSSMANN CH30J1 series modular fuse holder is a single-pole, Class J fuse holder with a 30 A amperage rating and a voltage rating of 600 Vac/dc. It features tin-plated copper clips and a thermoplastic housing. It can be mounted on a panel or a 35 mm DIN rail.

  • Fuse holder wire ports dual wire rated from 18 - 3 AWG
  • Tin-plated copper clip
  • Finger-safe IP20 protection

Product Highlights

The BUSSMANN CH30J1 fuse holder provides short-circuit protection in industrial and commercial applications. It supports fast-acting or time-delay fuses.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: CH30J1
  • Country of Origin: United States
Technical Specifications
Product Name
Eaton Bussmann series CH modular fuse holder
Catalog Number
CH30J1
UPC
051712630825
EAN
5027590161817
Product Type
Modular fuse holder
Amperage Rating
30 A
Voltage rating
600 Vac, 600 Vdc
Material
Tin-plated copper clip Thermoplastic housing
Number of poles
Single-pole
Operating temperature - max
85 00b0C
Operating temperature - min
85 00b0C
Class
Class J
Mounting method
Panel 35 mm DIN rail
Mounting Type
DIN Rail
Dimensions
4.59 in H x 1.28 in W x 2.83 in D
Temperature Rating
85 deg C
Connection Type
Box Lug
Catalog ID
BUSCH30J1
Fuse Length
2-1/4 in
Fuse Diameter
0.81 in
Suitable For Use With
LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series Class J High Speed Fuses
Standard & Approvals
UL 512, Guide IZLT, File No. E14853 CSA C22.2 No. 39, Class 6225-01, File No. LR47235, CE Certified, RoHS Complaint
Application
For electrical assemblies, panels and eoems
AC Voltage Rating
600 V AC
Body Material
Thermoplastic
Compatible Fuse Series
A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I
Current - Maximum
30 A
Current - Minimum
0 A
DC Voltage Rating
600 V DC
Fits Fuse Class or Type
Class J
Compatible Fuse Diameter
13/16 in
Compatible Fuse Length
2-1/4 in
Fuse Block Connector Type
Box Lug
Fuse Block Design
Finger-Safe
Fuse Block Mounting Style
DIN Rail
Fuse Block Style
Non-Rejection
Includes Auxiliary Contact
No
Includes Communication Feature
No
Manufacturer Part Number
CH30J1
Overall Height
2.83 in
Overall Length
4.59 in
Overall Width
1.28 in
Standards
CE; CSA Certified; UL Listed
Visual Indication
Non-Indicating
Wire Size - Maximum
3 AWG
Wire Size - Minimum
18 AWG
UNSPSC
39121411
