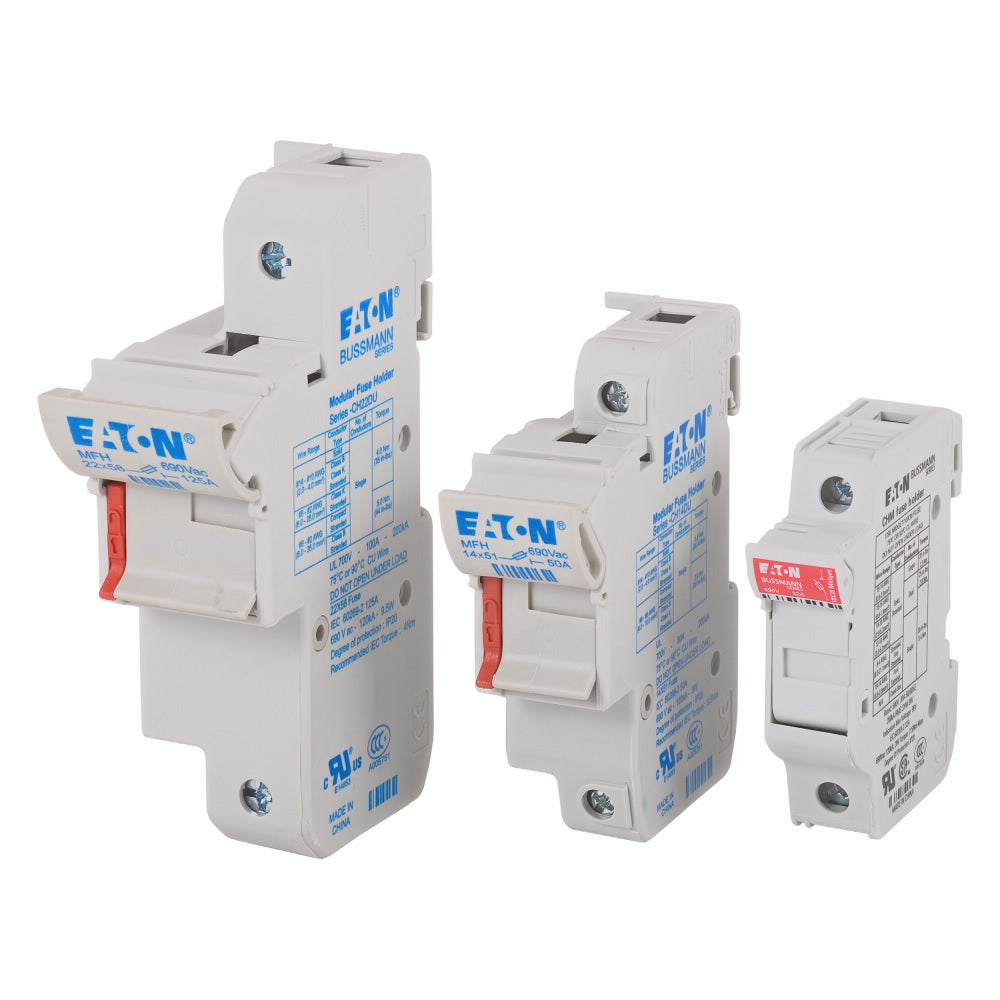

Bussmann CH141DU Low Voltage Cylindrical Modular Fuse Holder 690 VAC 50 A

Product Description

The Bussmann CH141DU, manufactured by Eaton, is a low voltage cylindrical modular fuse holder designed for use with cylindrical fuses. It operates at 690 VAC and can handle up to 50 A. This fuse holder features a single pole and is suitable for mounting on DIN rails.

• Designed for cylindrical fuses sizes 10 x 38 mm, 14 x 51 mm, and 22 x 58 mm.
• Temperature rating from -20 to 70 degrees Celsius.
• Compact dimensions for easy installation and efficient use of space.

Product Highlights

The Bussmann CH141DU provides reliable and efficient protection for electrical circuits.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 690 VAC
• Amperage Rating: 50 A
• Fuse Diameter: 14 mm
• Fuse Length: 51 mm
• Mounting Type: DIN Rail
• Number of Poles: 1
• Dimensions: 92 mm L x 27 mm W x 74 mm H
• Suitable For Use With: Standard cylindrical fuse-links and FW type ferrule fuse-links
• Temperature Rating: -20 to 70 degrees Celsius
