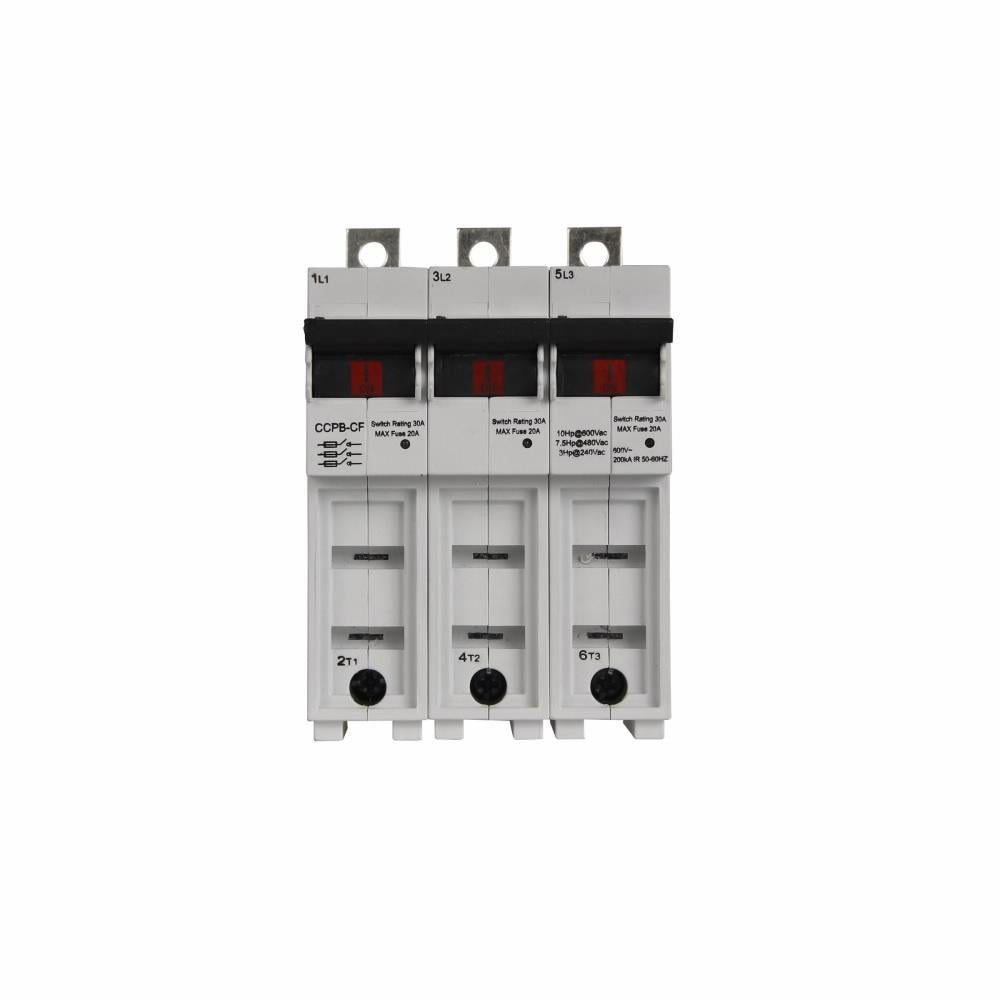

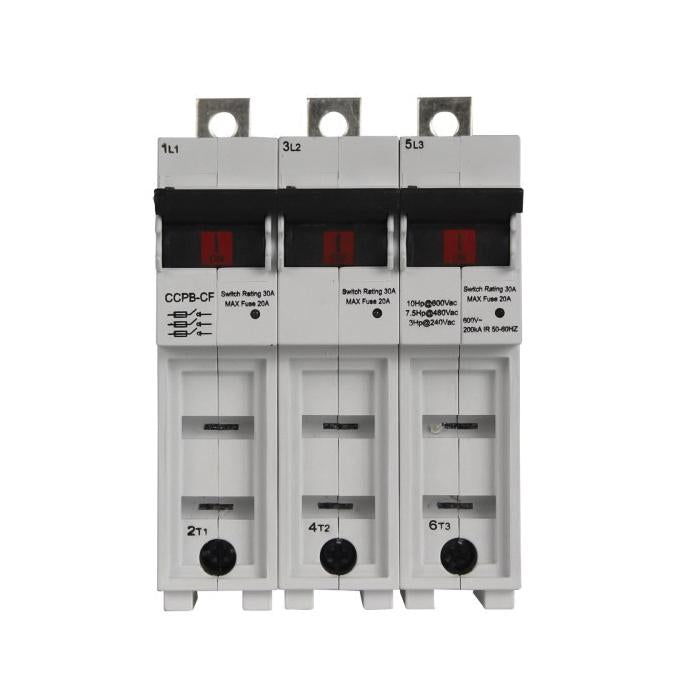

Bussmann CCPB-3-30CF Compact Circuit Protector Base 600 VAC 30 A Class CF Fuse

Product Description

The Bussmann CCPB-3-30CF is a compact circuit protector base designed for fused branch circuit applications. This product serves as a disconnect switch for the Bussmann Series Quik-Spec coordination panelboard. It features lockout/tagout provisions for enhanced safety during maintenance. Its design allows for easy identification and isolation of branch circuits, improving worksite safety.

• Voltage rating: 600 VAC
• Amperage rating: 30 A
• Number of poles: 3

Product Highlights

This circuit protector base is engineered for reliable operation in various conditions, featuring an operating temperature range of -20 to 75 degrees Celsius. It includes finger-safe construction and utilizes Class CF CUBEFuse for efficient protection.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Depth: 3 inches
• Height: 2.9 inches
• Width: 3.9 inches
• Mounting Type: Bolt-On
• Operating Temperature: -20 to 75 degrees Celsius
• Operator: Switch Handle
• Fuse Type: Class CF
• Wire Size: 18 to 4 AWG
• Wire Type: Solid/Stranded Copper
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
