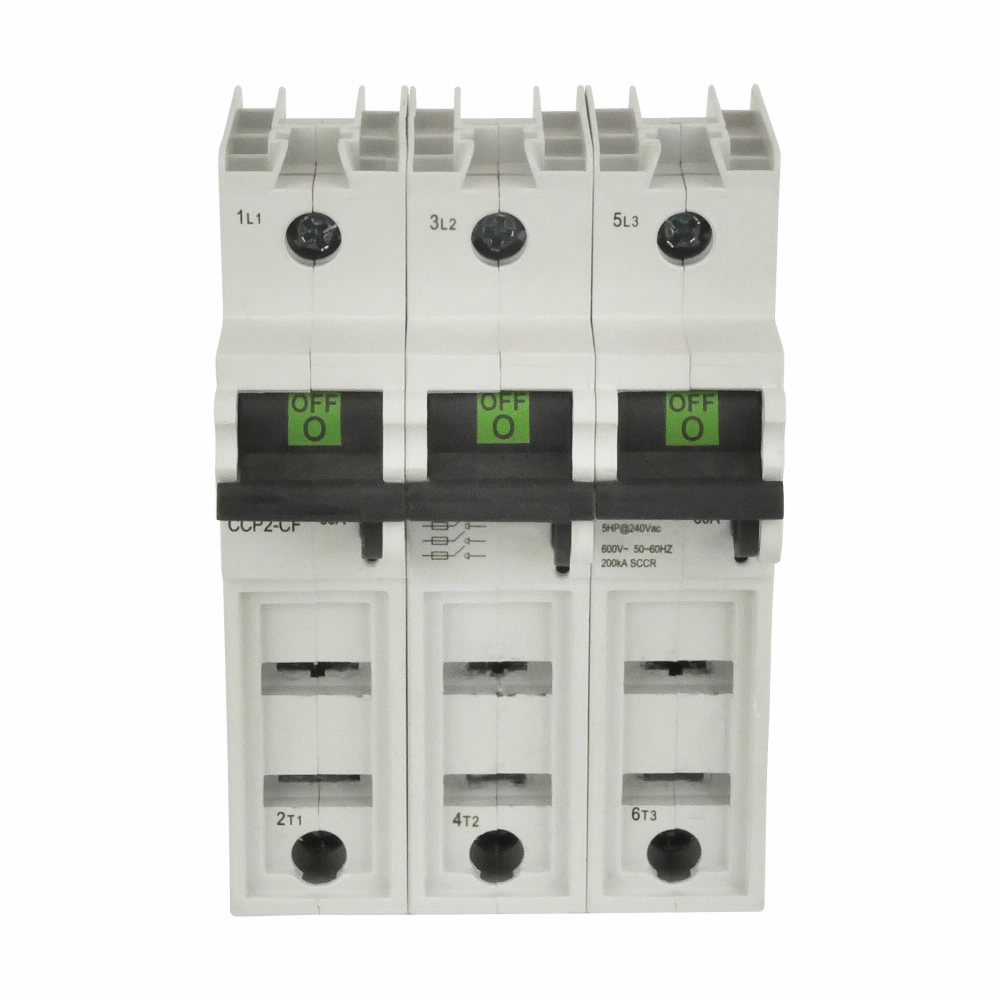

Bussmann CCP2-3-30CF EFSE CCP2 3P 30A CF

Product Description

The Bussmann CCP2-3-30CF is a UL98 fusible disconnect switch designed for reliable power distribution and safety. This three-pole switch operates at a voltage of six hundred volts alternating current and one hundred twenty-five volts direct current. With a rated current of two hundred twenty-five amps, it is suited for various electrical assemblies and applications in panels and OEM. Its finger-safe design ensures added protection during operation.

• Type: UL98 Fusible Disconnect
• Voltage Rating: 600 Vac; 125 Vdc
• Current Rating: 225 Amp

Product Highlights

This disconnect switch is built to handle high electrical loads safely, making it ideal for industrial settings. The design includes a lock-on provision, ensuring that it stays secured in the off position when required.

Product Information

Standard Information

• Manufacturer: Bussmann
• Catalog Number: CCP2-3-30CF

Technical Specifications

• Type: UL98 Fusible Disconnect
• Voltage Rating: 600 Vac; 125 Vdc
• Amperage Rating: 225 Amp
• Number of Poles: Three-pole
• Dimensions: 4.5 inches x 3 inches x 3 inches
• Weight: 3.7 lb
• Special Features: Finger Safe; 1/4 inch Lockout/Tagout
• Application: Electrical Assemblies; Panels; OEMs
