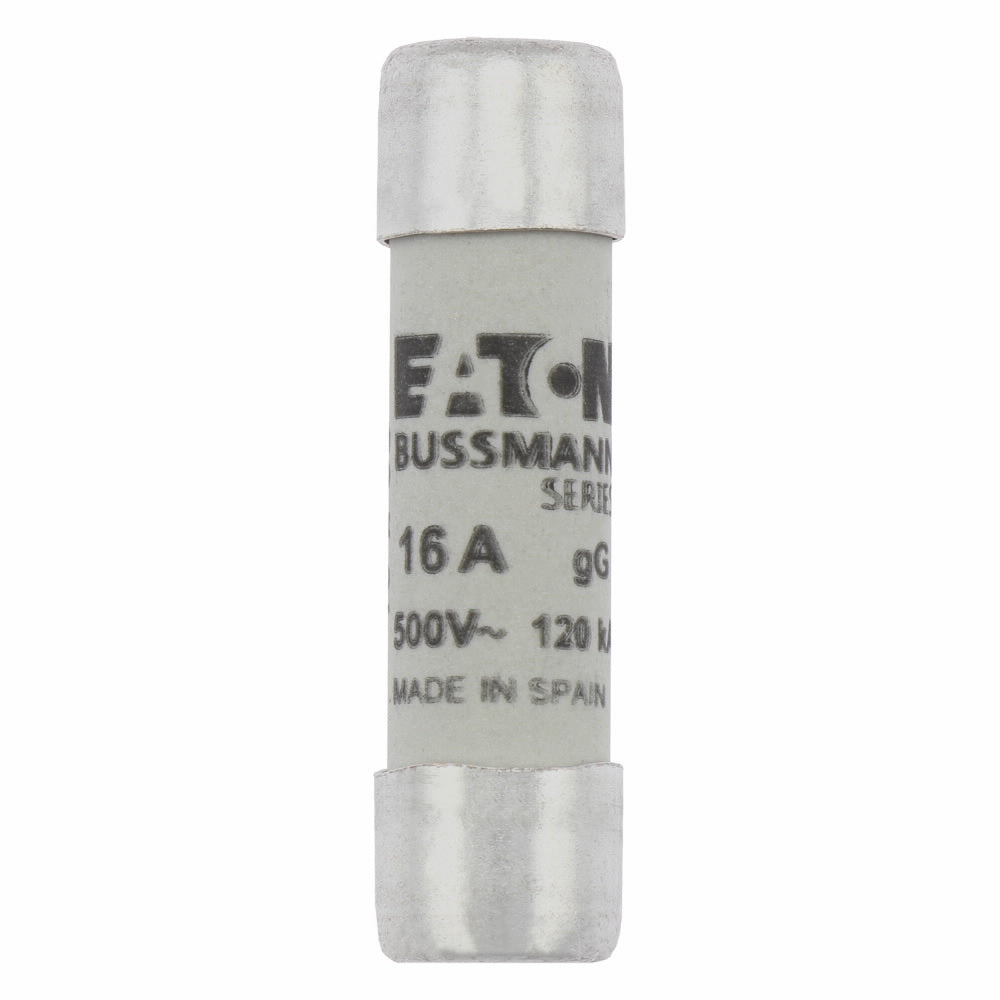

Bussmann C10G16 Fuse 16 A (10 x 38 mm)

Product Description

The BUSSMANN C10G16 is a low voltage cylindrical fuse, rated at 500 Volts AC and 16 Amps. With a 120 kA breaking capacity and class gG/gL, it is compatible with a CHM Modular fuse holder. This fuse is suitable for industrial applications and general purpose use.

• Rated at 500 Volts AC
• 16 Amps
• 120 kA Breaking capacity

Product Highlights

The BUSSMANN C10G16 fuse offers reliable protection in a compact design with tool-free installation.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: C10G16
• Country of Origin: ES

Technical Specifications

• Product Name: Eaton Bussmann series low voltage cylindrical fuse
• Catalog Number: C10G16
• Model Code: CYLINDRICAL FUSE 10 x 38 16A GG 500V AC
• UPC: 051712754286
• EAN: 5027590493437
• Product Length/Depth: 38 mm
• Product Height: 10 mm
• Product Width: 10 mm
• Global Catalog: C10G16
• Product Type: Low voltage cylindrical fuse
• Amperage Rating: 16 A
• Fuse size: 10 x 38 mm
• Current type: AC
• Breaking capacity: 120 kA
• Frequency rating - max: 62 Hz
• Frequency rating - min: 45 Hz
• Rated voltage AC: 500 V
• Class: Class C gL/gG
• Fuse type: C10G
• Utilization category: gG (cable protection/equipment protection)
• Fuse indicator: Other
• Watt losses: 1.6 W
• Connection: Ferrule end x ferrule end
• Construction size: 10 mm x 38 mm
• Fuse shape: Cylindrical
• Voltage type: AC
• Suitable for: CHM Modular fuse holder
• Material: Ceramic
• Mounting method: Holder
• Release characteristic: Other
• Quantity: 10
• Voltage Rating: 500 V
• Type: fuse
• Application: for industrial applications for general purpose use
• Manufacturer: Eaton
• Interrupt rating: 120 kAIC
• Speed: High speed Fuses
• Shape: Cartridge Fuses
• Approvals: CE Marked, GoST-R, RoHS Compliant
• Datasheet: IEC CYLINDRICAL FUSE SYSTEM
• Item Weight: 8.2 g
• Series: C10G
• Size: 5AG Midget (10.3 mm x 38.1 mm)
• Timing: Time Delay / Slow Blow
• Dimensions: 38 mm L x 10 mm D
• Case Length: 38 mm
• Packaging: Bulk
• Factory Pack Qty.: 10
• Alternate Catalog Number: C10G16
• ARRA Compliant: C
• Body Size: 10 mm Dia x 38 mm L
• Buy American Compliant: C
• Standard: IEC 60269,RoHS Compliant,CE Marked,GoST-R
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantIEC 60269
• Sub Brand: Bussmann Series
• Terminal Type: Ferrule
• UNSPSC: 39121606
• UPC 11: 05171275428
• UPC 12: 051712754286
• Height: 0.39 in
• Height [Metric]: 1.0000 cm
• Length: 1.50 in
• Length [Metric]: 3.8001 cm
• Mounting: Holder
