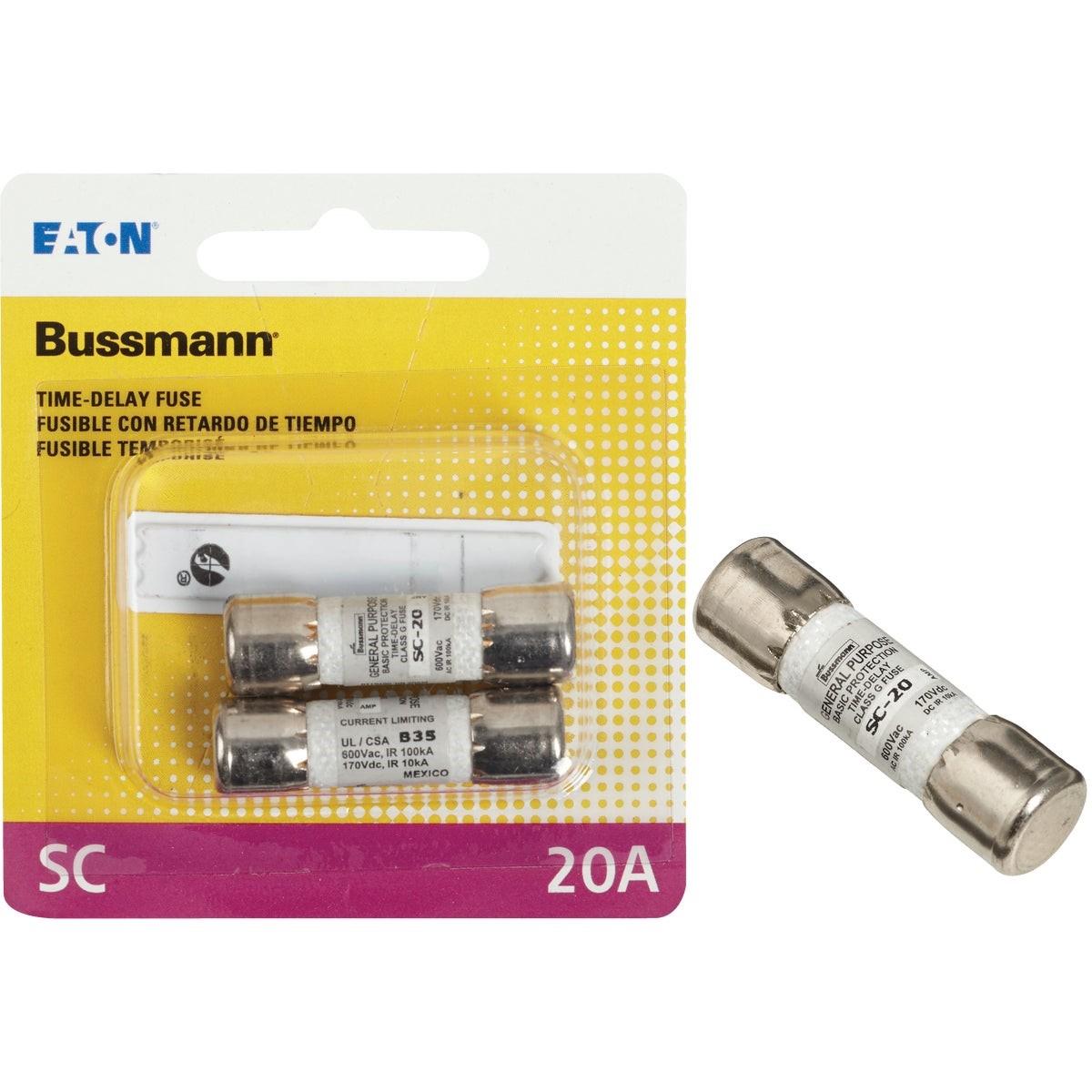

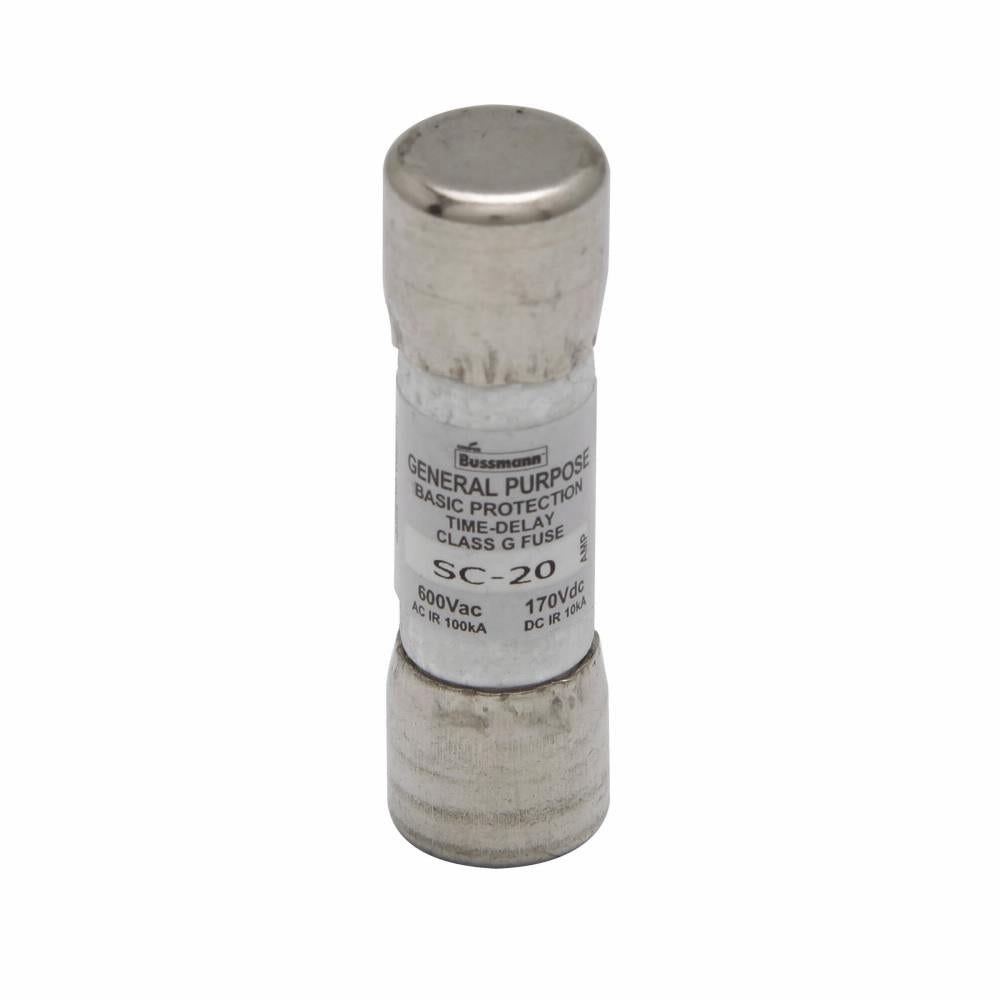

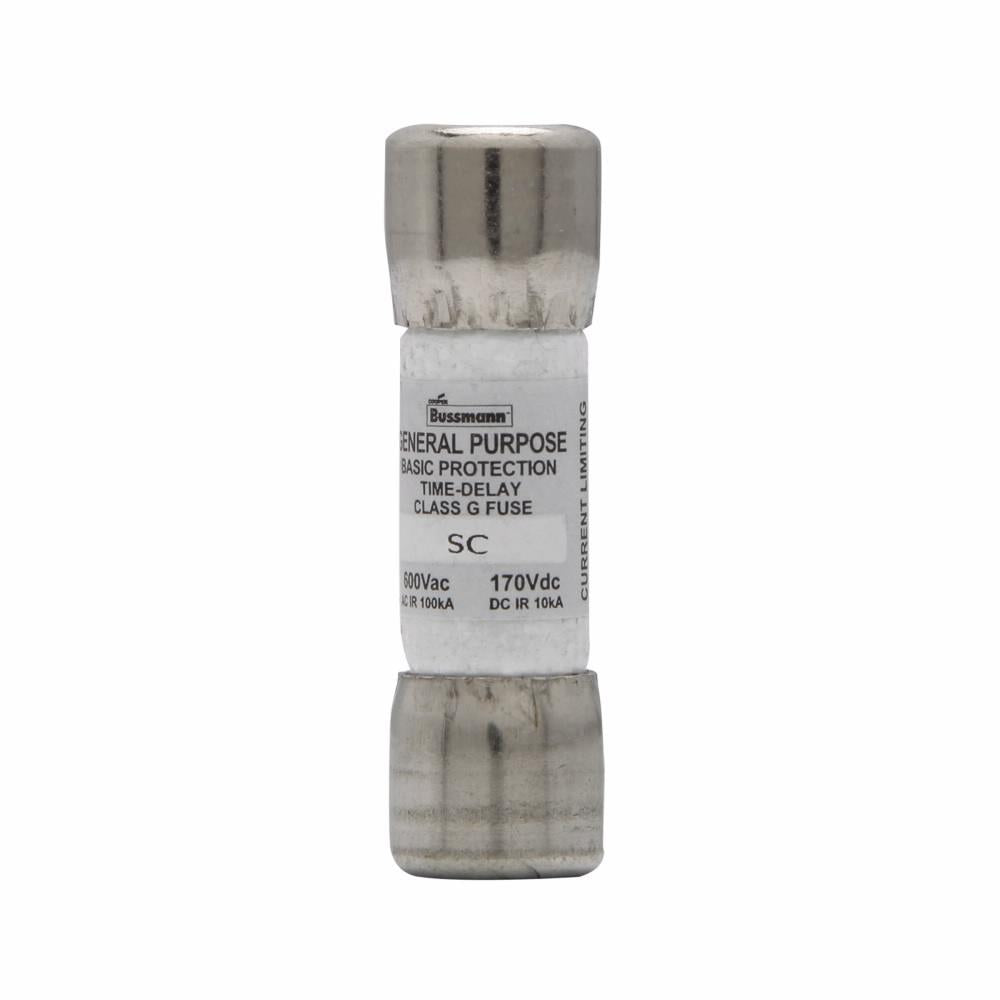

Bussmann BP/SC-20 Bussmann 20A Midget Cartridge Time Delay Cartridge Fuse (2-Pack)

Product Description

Bussmann BP/SC-20 is a 20 amp midget cartridge time delay fuse designed for effective circuit protection. This fuse features a ferrule end terminal and is suitable for use in various applications including HVAC systems and residential buildings.

• Current limiting fast acting time delay design
• Voltage rating of 600 VAC/170 VDC
• Compact size for easy installation

Product Highlights

The Bussmann BP/SC-20 fuse is built for reliable operation under various conditions. It offers significant protection against overload and short circuit conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Cooper

Technical Specifications

• MPN: BP/SC-20
• Width: 0.41 inches
• Height: 0.41 inches
• Length: 1.31 inches
• Weight: 0.04 lbs
• Amperage Rating: 20 A
• Voltage Rating: 600 VAC/170 VDC
• Interrupt Rating: 10/100 kA
• Type: Current Limiting Fast Acting Time Delay
• Rejection/Non-Rejection: Rejection
• Terminal Type: Ferrule End
• Class: G
