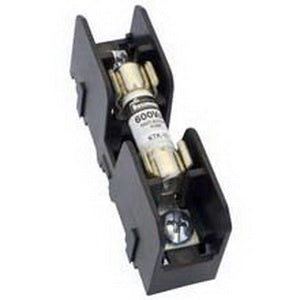

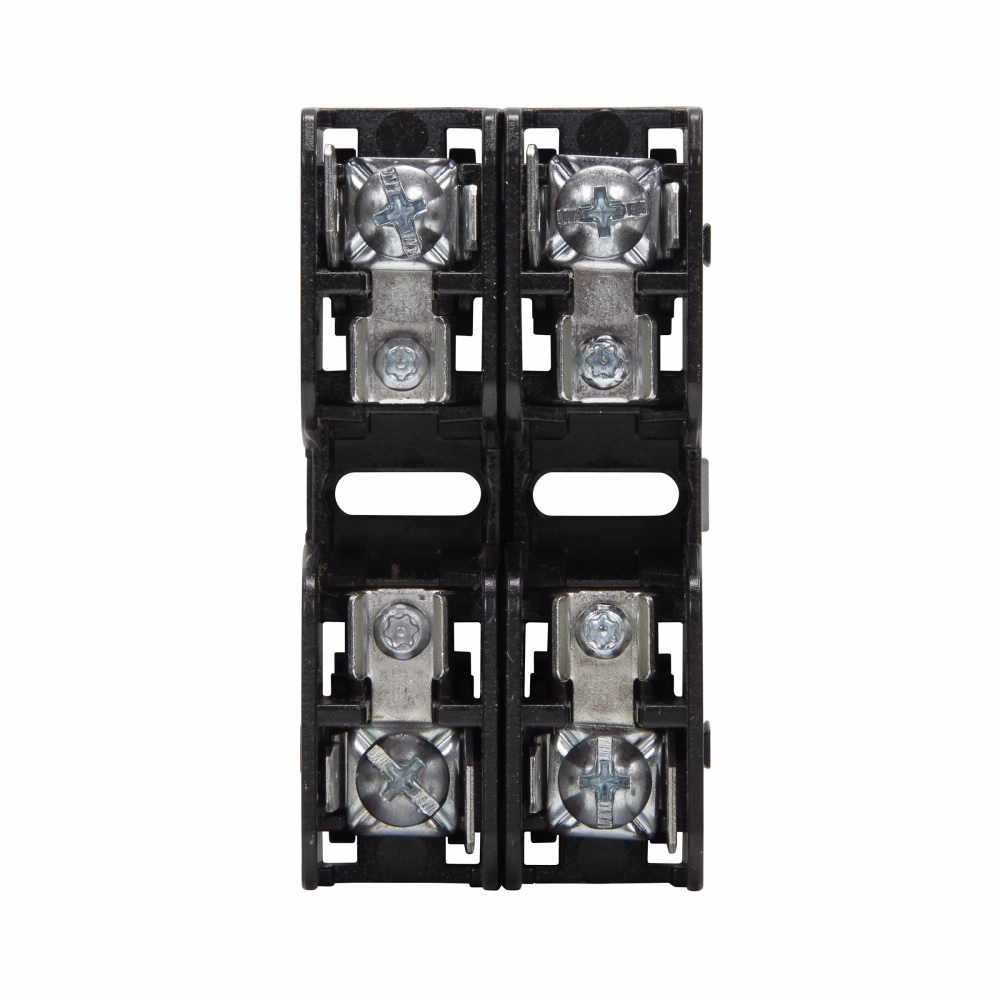

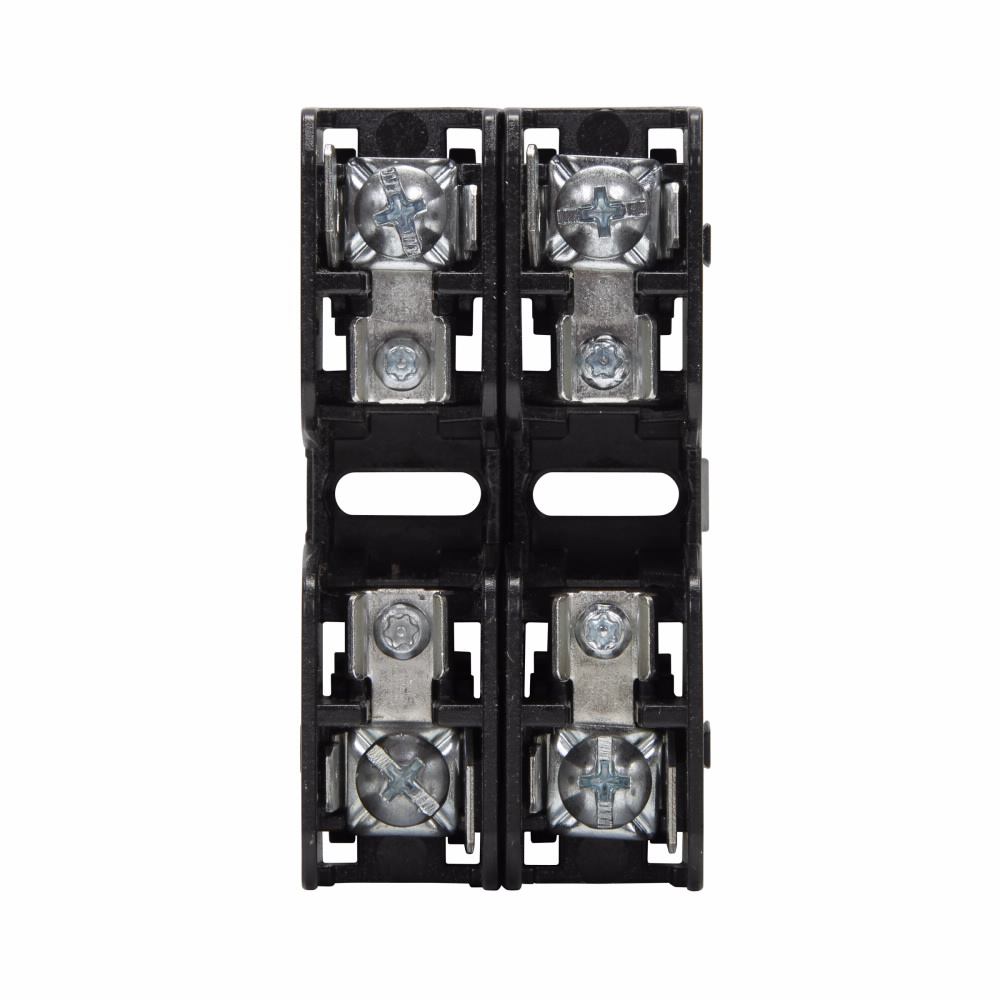

Bussmann BMM603-2PQ Eaton Bussmann BMM603-2PQ 2-Pole Midget Fuse Block with Pressure Plate and Quick Connect

Product Description

Eaton Bussmann BMM603-2PQ is a 2-pole midget fuse block designed for efficient power distribution. This unit supports a maximum of thirty amps and operates up to six hundred volts. The fuse block features a pressure plate and quick connect installations. It safely accommodates fuse sizes of thirteen thirty-seconds inch by one and one-half inch. This modular block is suitable for various electrical assemblies and applications.

• Two-pole configuration for versatile connections
• Supports up to thirty amps and six hundred volts
• Modular design for easy assembly and installation

Product Highlights

The Bussmann BMM603-2PQ is ideal for use in electrical panels, making it a reliable choice for electricians and power distribution tasks.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.
• Catalog Number: BMM603-2PQ

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 30 Amp
• Number of Poles: 2
• Conductor Size: 18-10 AWG Copper
• Fuse Size: 13/32 Inch x 1-1/2 Inch
• Temperature Rating: -40 to 120 deg C
• Mounting Type: DIN Rail/Panel
• Material: Thermoplastic Base, Tin Plated Bi-Metallic Copper Terminal
