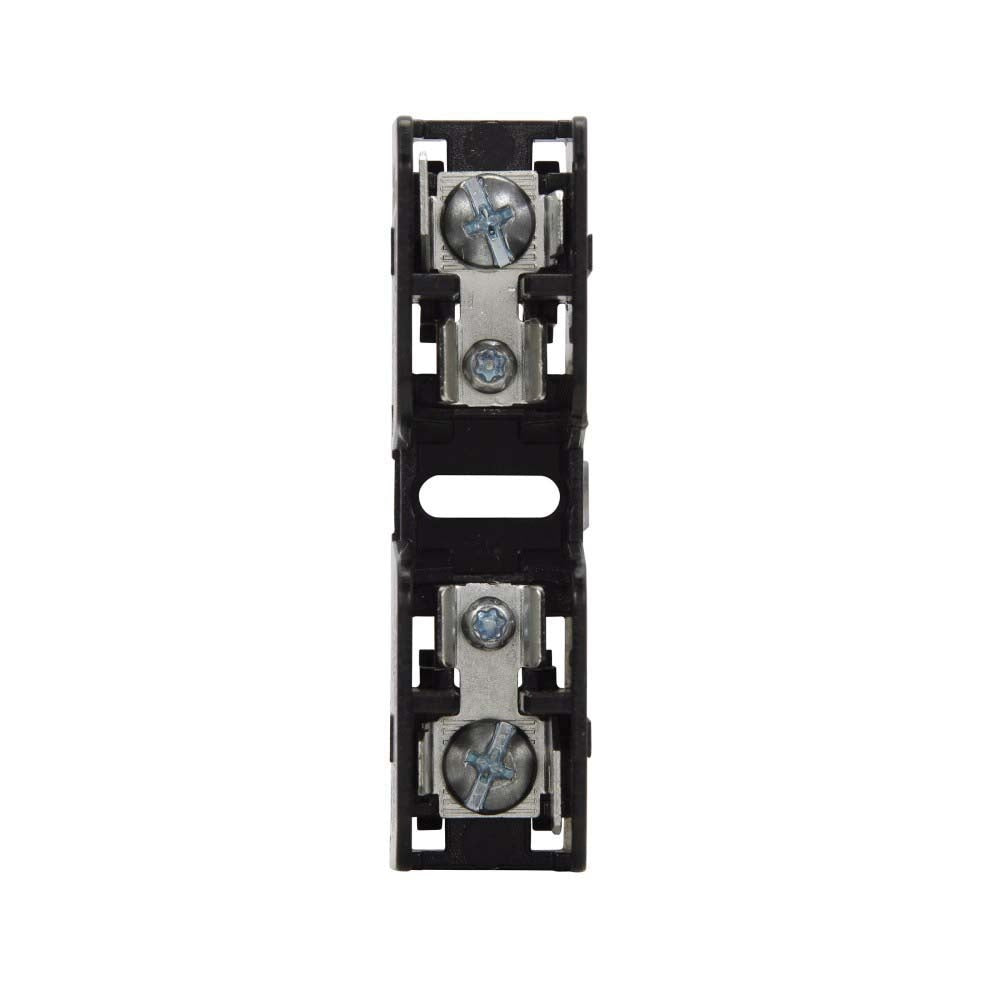

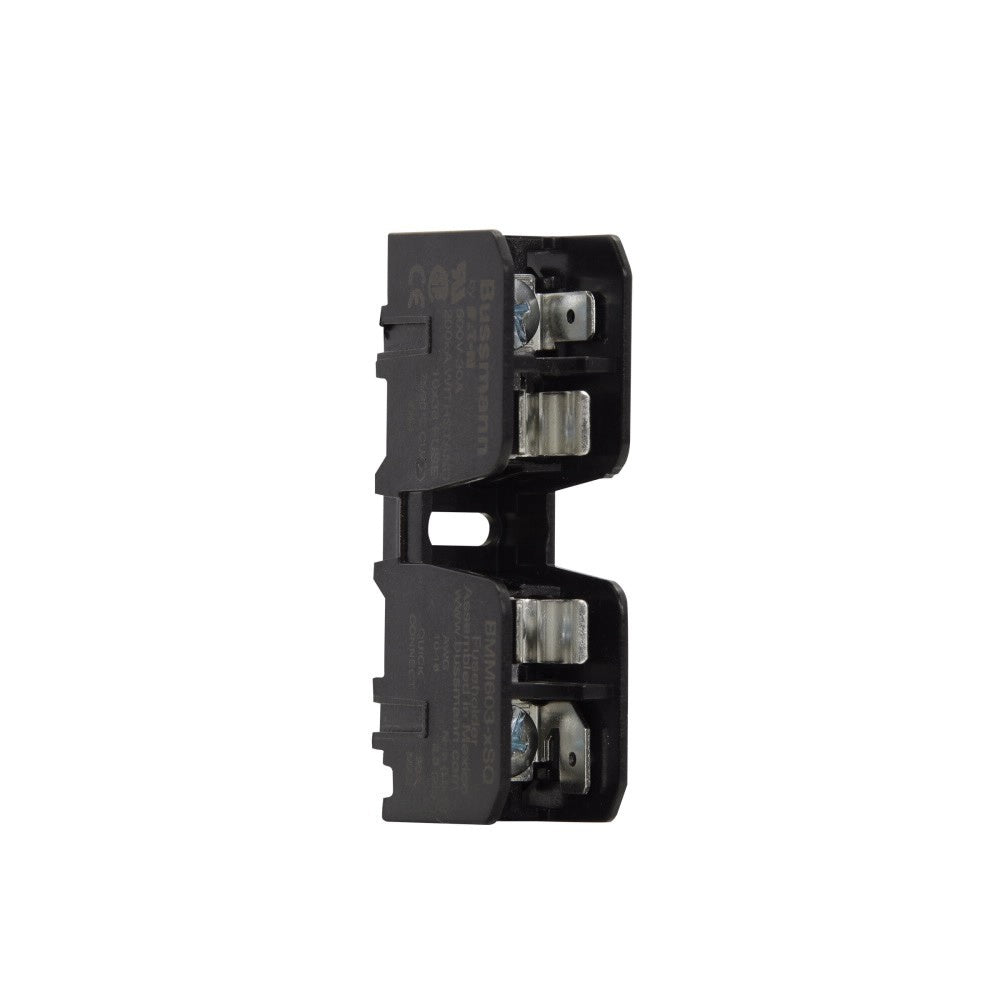

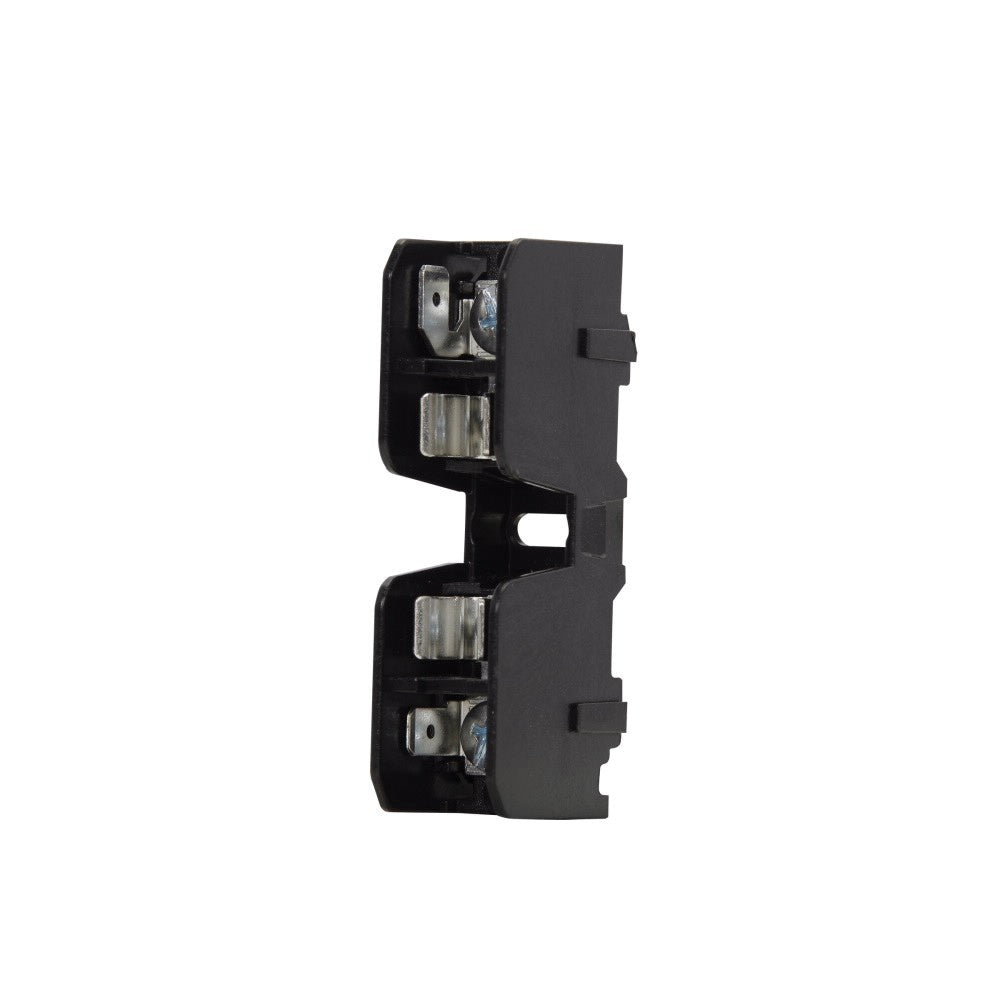

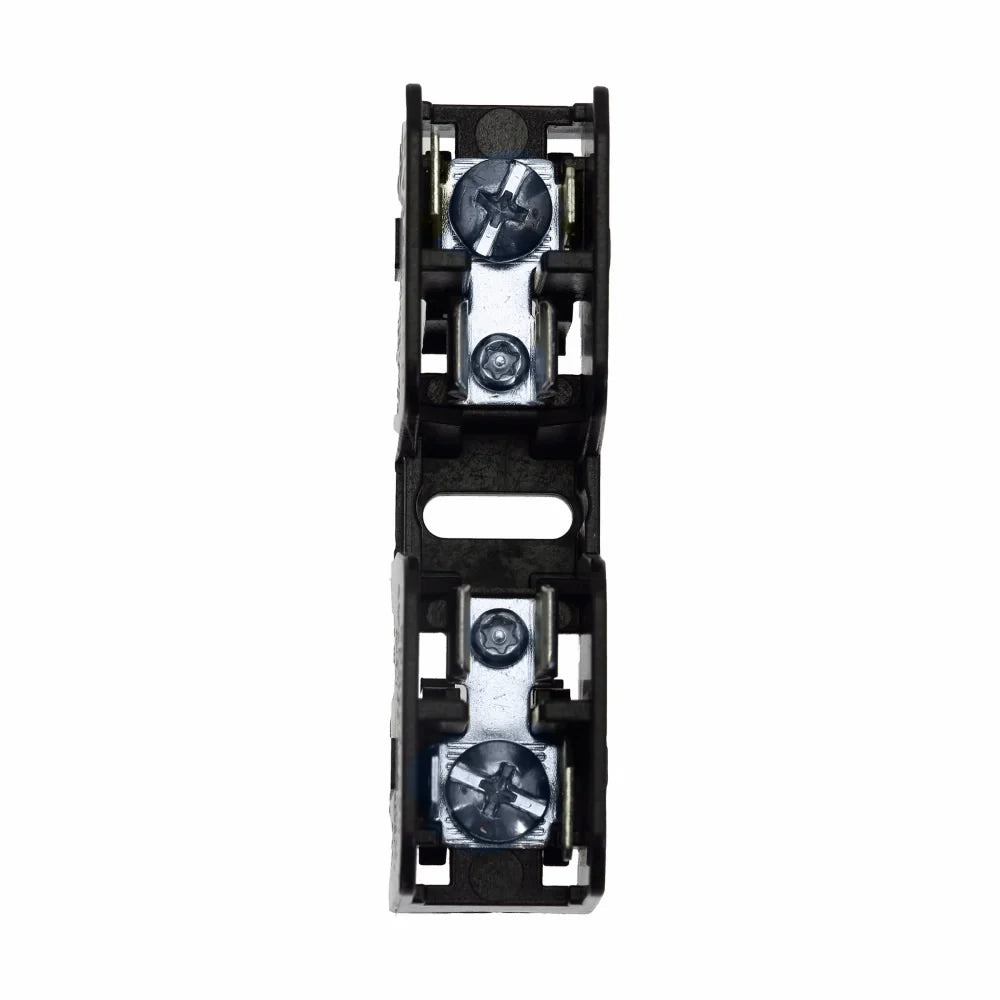

Bussmann BMM603-1SQ Modular Ferrule Fuse Block 30 Amp 600 Volt

Product Description

The Bussmann BMM603-1SQ is a modular ferrule fuse block designed for electrical assemblies. This fuse block accommodates wire sizes from eighteen to ten AWG copper and is rated for thirty amps at six hundred volts. The thermoplastic body ensures durability in various electrical applications.

• Rated for 30 amps and 600 volts
• Compatible with 18 to 10 AWG copper wire
• Features screw and quick connect terminal type

Product Highlights

This fuse block is ideal for use in electrical panels and assemblies, providing reliable protection against overload and short circuits.

Product Information

Standard Information

• Manufacturer: Bussmann
• MPN: BMM603-1SQ

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Dimensions: 3 inches x 1 inch x 1 inch
• Connection Type: Screw/Quick-Connect
• Material: Thermoplastic
• Environmental Conditions: V0 Flammability Rated per UL94
• Standards: UL Recognized, CSA Certified, RoHS Compliant, CE Marked
• Country of Origin: Mexico
