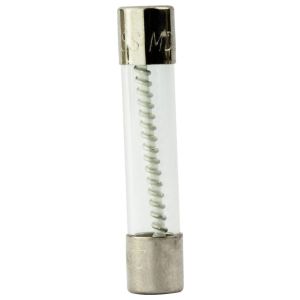

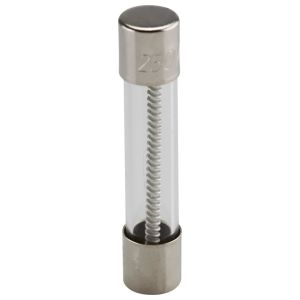

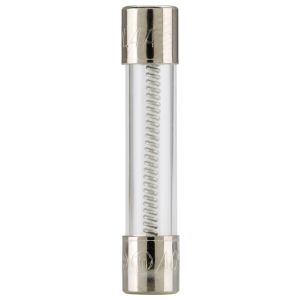

Bussmann BK/MDL-7-R Fuse Glass 7A 250V Time Delay Slow Blow 200A Clip Holder Mount 1.25 L x 0.25 in Dia.

Product Description

The Bussmann BK/MDL-7-R is a reliable fuse designed for circuit protection. This fuse is rated at seven amps with a voltage of two hundred fifty volts and is built for time delay applications. It features a cylindrical body with a clip termination style.

• Rated for use in both commercial and industrial settings.
• Designed to withstand high inrush currents.
• Manufactured by Bussmann (Eaton), a trusted name in electrical safety products.

Product Highlights

This fuse provides effective circuit protection by allowing temporary overloads while breaking the circuit under sustained overload conditions.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: 25088129

Technical Specifications

• Fuse Amps: 200A
• Rated Voltage: 250Vac, 32Vdc (self certified)
• Length: 1.25 inches
• Width: 0.25 inches
• Height: 0.25 inches
• Fuse Interrupt Rating: 10 kAIC at 125 Vac | 200 AIC at 250 Vac
• Response Time: 60 min at 135%, 120 sec at 200%, 5 sec at 200%
• Country of Origin: TW - Taiwan
