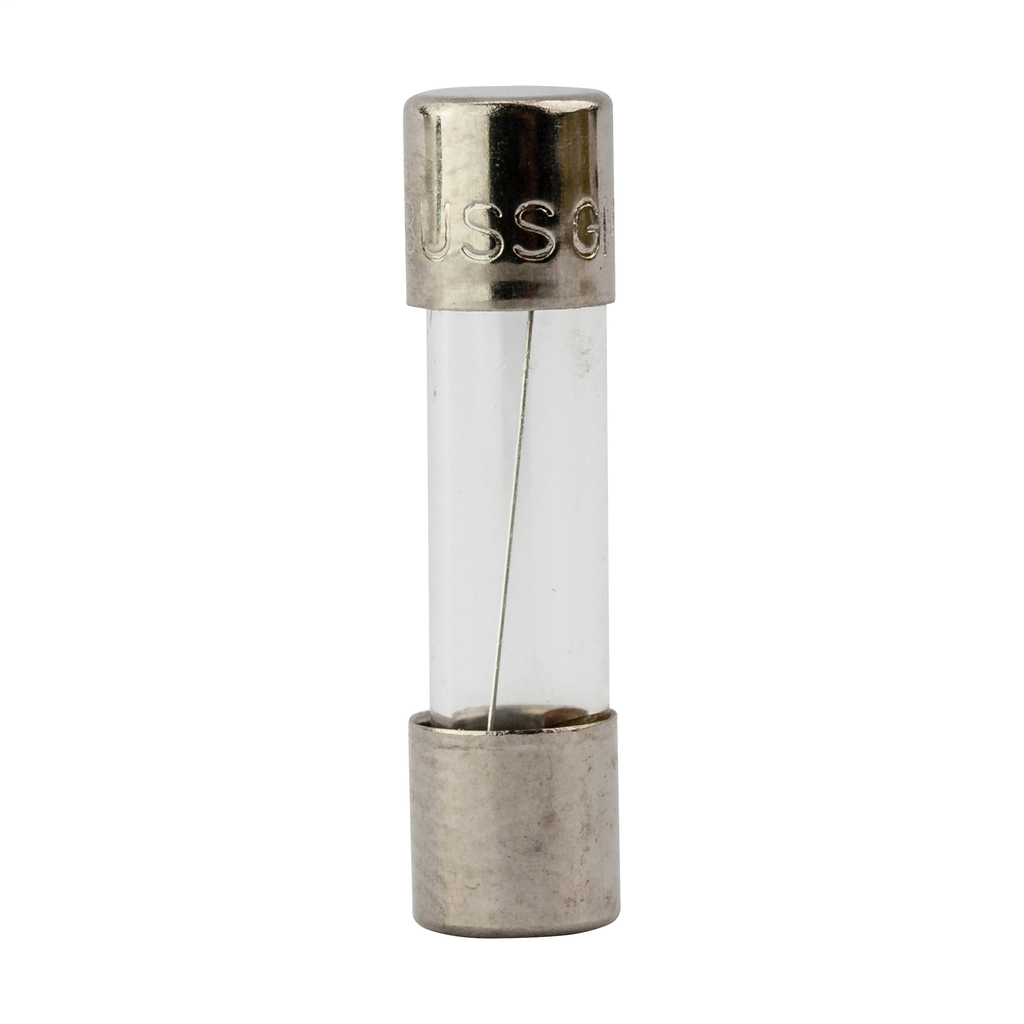

Bussmann BK/GMA-500-R Fast Acting Glass Tube Fuses 500ma 250V

Product Description

Bussmann BK/GMA-500-R is a fast-acting glass tube fuse with a rating of five hundred milliamps. This fuse is designed for use in electronic circuits, providing reliable protection against overcurrent conditions.

• Fast-acting design for quick response
• Rated for 250 Vac and 32 Vdc
• Dimensions of five millimeters in diameter by twenty millimeters in length

Product Highlights

Ideal for electronics and safety applications, this fuse offers a maximum response time of two minutes at double its rated current. It maintains reliable functionality in various environments.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: 250 Vac; 32 Vdc
• Amperage Rating: 0.5 A
• Material: Glass tube with nickel-plated brass end cap
• Connection Type: Ferrule end x ferrule end
• Interrupt Rating: 35 AIC at 250 Vac; 10 kAIC at 125 Vac
• Applications: Electronic circuits, Safety and security systems
• Response Time: 60 minutes at 135%; 2 minutes at 200%
• Standards: CE, CSA, RoHS Compliant, UL 248-14
