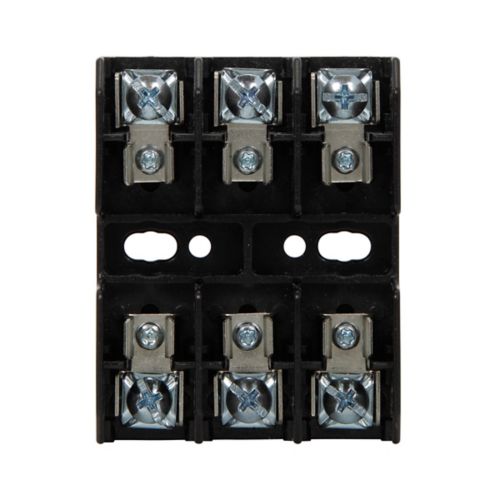

Bussmann BG3033P Fuse Block 30A

Product Description

The Bussmann BG3033P is an open fuse block designed for use with SC fuses. Rated for 25-30A, this Class G fuse block features a pressure plate connection and is constructed from thermoplastic. It is suitable for use with #14-10 AWG Cu/Al wiring and has a voltage rating of 480V.

• Amperage Rating: 25-30A
• Voltage Rating: 480V
• Wire Size: #14-10 AWG Cu/Al

Product Highlights

The Bussmann BG3033P fuse block provides reliable circuit protection with a thermoplastic build and pressure plate connection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BG3033P
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton Bussmann series BG open fuse block
• Catalog Number: BG3033P
• UPC: 051712121941
• Product Length/Depth: 2.5 in
• Product Height: 2.5 in
• Product Width: 3 in
• Compliances: RoHS Compliant
• Certifications: UL Recognized CSA Certified
• Product Type: Open fuse block
• Amperage Rating: 25-30A
• Interrupt rating: 100 kAIC
• Short-circuit rating: 100 kA
• Voltage rating: 480 V
• Material: Thermoplastic
• Wire size: #14-10 AWG Cu/Al
• Class: Class G
• Connection: Pressure plate
• Used with: For use with SC fuse
• Mfr. #: BG3033P
• Mfr.: Bussmann / Eaton
• Brand: Bussmann
• Part Number: BG3033P
• Type: Fuse Block
