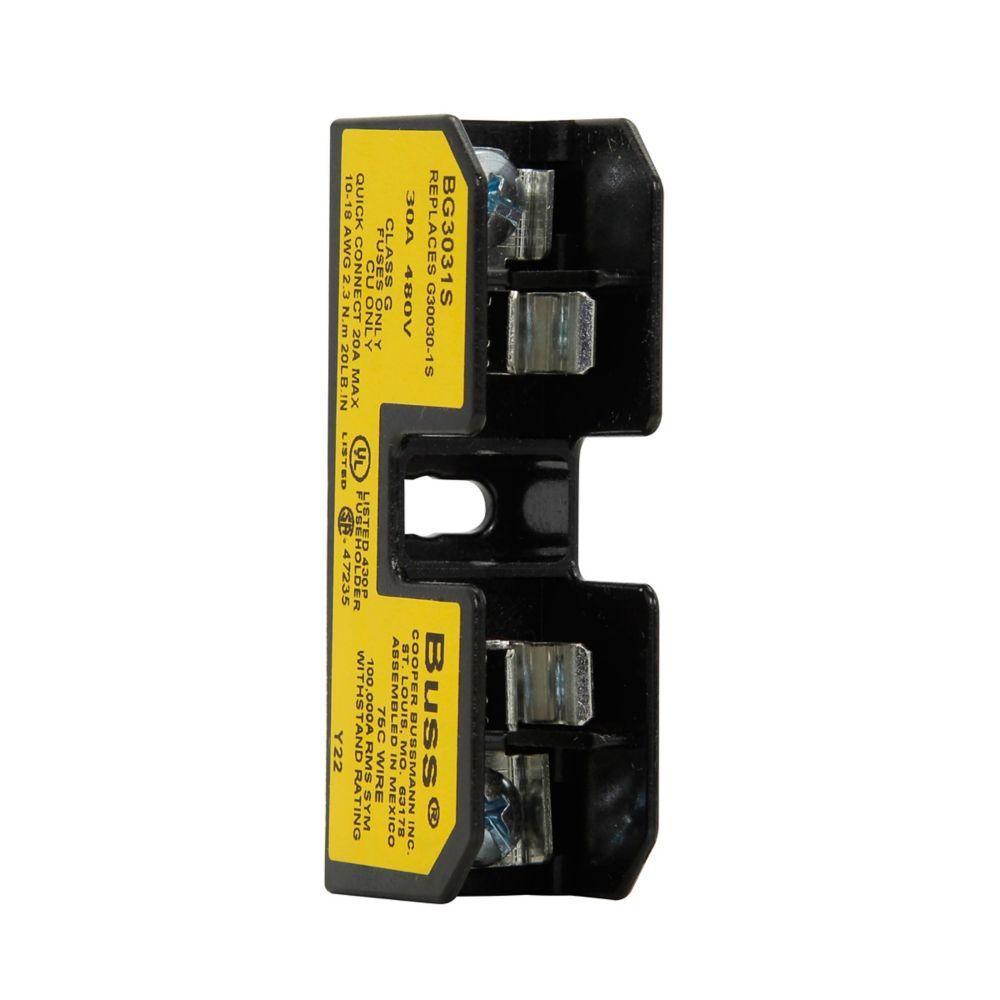

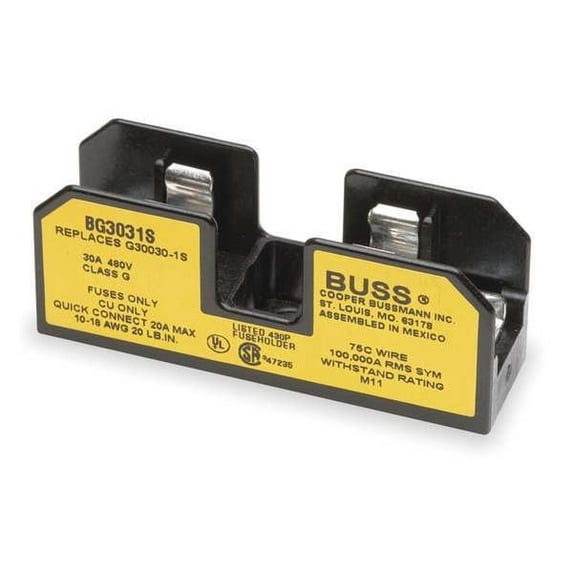

Bussmann BG3031S Fuse Block 25-30A

Product Description

The BUSSMANN BG3031S is an Eaton Bussmann series BG open fuse block. It supports 25-30 A, is single-pole, and Class G. This fuse block features screw connection, 100 kAIC, and is made of thermoplastic. It is rated for 480 V and compatible with #14-10 AWG Cu.

• Amperage Rating: 25-30A
• Voltage rating: 480 V
• Wire size: #14-10 AWG Cu

Product Highlights

The BUSSMANN BG3031S fuse block is ideal for electrical assemblies, panels, and EOEMs applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BG3031S
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series BG open fuse block
• Catalog Number: BG3031S
• UPC: 051712736688
• Product Type: Open fuse block
• Amperage Rating: 25-30A
• Interrupt rating: 100 kAIC
• Short-circuit rating: 100 kA
• Voltage rating: 480 V
• Material: Thermoplastic
• Number of poles: Single-pole
• Wire size: #14-10 AWG Cu
• Class: Class G
• Connection: Screw
• Used with: For use with SC fuse
• Series: BG Series
• Fuse Length: 1.639 in
• Fuse Diameter: 13/32 in
• Suitable For Use With: SC Series Class G Fuse
• Temperature Rating (Degrees F): 130 deg C
• Type: Open
• Manufacturer Name: Eaton
• UNSPSC: 39121624
• Model: BG3031S
• Volts: 480 V
• Brand: Cooper Bussmann
• Amps: 30 Amps
• Height: 1.22 in
