Bussmann BG3022PQ BUSS Fuseblock WAS 2091

Product Description

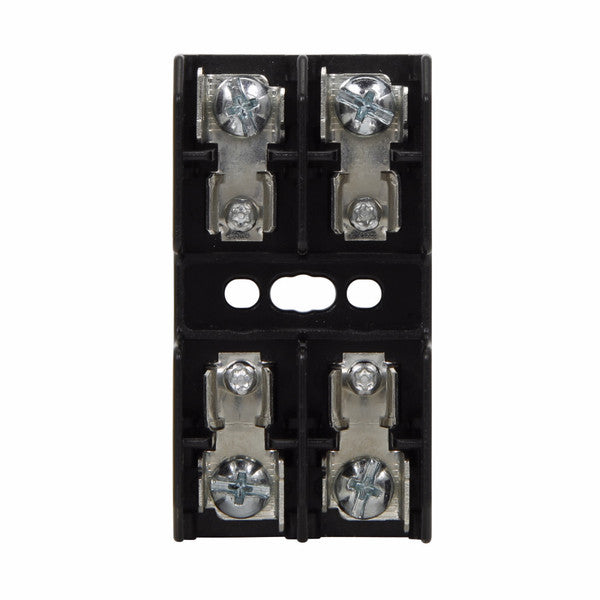

The Bussmann BG3022PQ is a Bussmann by Eaton series fuse block for use with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option. It is a two-pole open fuse block with pressure plate/quick connect.

• For use with Class G fuses
• Available in phenolic and thermoplastic
• Options for DIN rail adapters and inline holder

Product Highlights

The Bussmann BG3022PQ fuse block is ideal for electrical assemblies, panels, and EOEMs.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BG3022PQ

Technical Specifications

• Brand: Bussmann by Eaton
• Class: Class G
• Manufacturer Part Number: BG3022PQ
• Primary Type: Fuse Block
• Shape: RECTANGULAR
• Type: Open fuse block
• Amperage: 1-20 Amp
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Connection Type: Pressure Plate/quick Connect
• Number of Poles: 2 Pole
• Voltage: 600 Volt
• Sub Brand: Bussmann Series
• Volts: 600V (1-20A) 480V (25-60A)
• Amps: 1 to 60A
• Withstand rating: 100kA RMS Sym
• Agency information 1-30A: UL Recognized, UL 512, Guide IZLT2, File E14853
• Agency information 35-60A: UL Listed, UL 512, Guide IZLT, File E14853
• Agency information 1-60A: CSA Certified, C22.2 No. 39, Class 6225-01; File 47235
• RoHS compliant: RoHS compliant
• Recommended fuses: SC
• Base (1-30A models): Thermoplastic
• Base (35-60A models): Phenolic
• Fuse clip (1-30A models): Bimetallic copper alloy
• Fuse clip (35-60A models): Plated copper
