Bussmann BG3012SQ Fuse Holder 15A

Product Description

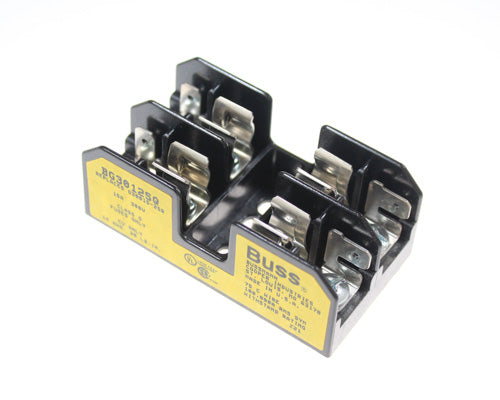

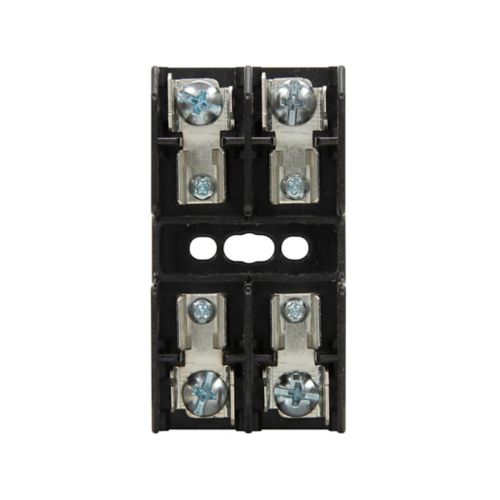

The BUSSMANN BG3012SQ is an open fuse block designed for use with SC fuses. Rated for 600V and 0.18-15A, it features a thermoplastic construction and supports #14-10 AWG Cu/Al wiring. This two-pole block offers screw/quick connect connections and a 100 kAIC interrupt rating. Ideal for electrical panels and control circuits.

• Thermoplastic body material
• Screw/quick connect connector type
• Suitable for use with SC fuses

Product Highlights

The BUSSMANN BG3012SQ fuse block provides reliable circuit protection with its robust design and high interrupt capacity.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BG3012SQ
• Country of Origin: MX

Technical Specifications

• Product Name: Eaton Bussmann series BG open fuse block
• Catalog Number: BG3012SQ
• UPC: 051712736626
• Product Weight: 0.1375 lb
• Compliances: RoHS Compliant
• Product Type: Open fuse block
• Amperage Rating: 0.18-15A
• Interrupt rating: 100 kAIC
• Short-circuit rating: 100 kA
• Voltage rating: 600 V
• Material: Thermoplastic
• Number of poles: Two-pole
• Wire size: #14-10 AWG Cu/Al
• Class: Class G
• Connection: Screw/quick connect
• Used with: For use with SC fuse
• Brand: EATON BUSSMANN
• MPN: BG3012SQ
• Model: BG3012SQ
• Item Height: 1.300
• Item Length: 3.000
• Item Width: 1.600
• California Prop 65 Warning: N
• Country of Origin: MX
• Weight: 0.1500
• Length: 3.000
• Width: 1.600
• Depth: 1.600
• Mounting Type: panel
• Package: bulk
• Item Per Pack: 1
• Height: 1.1800 IN
