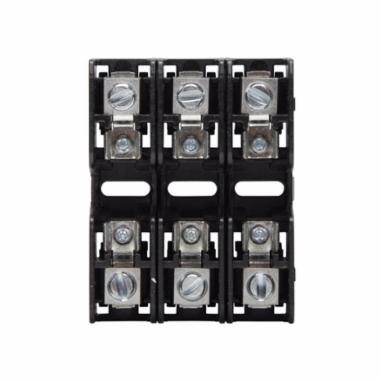

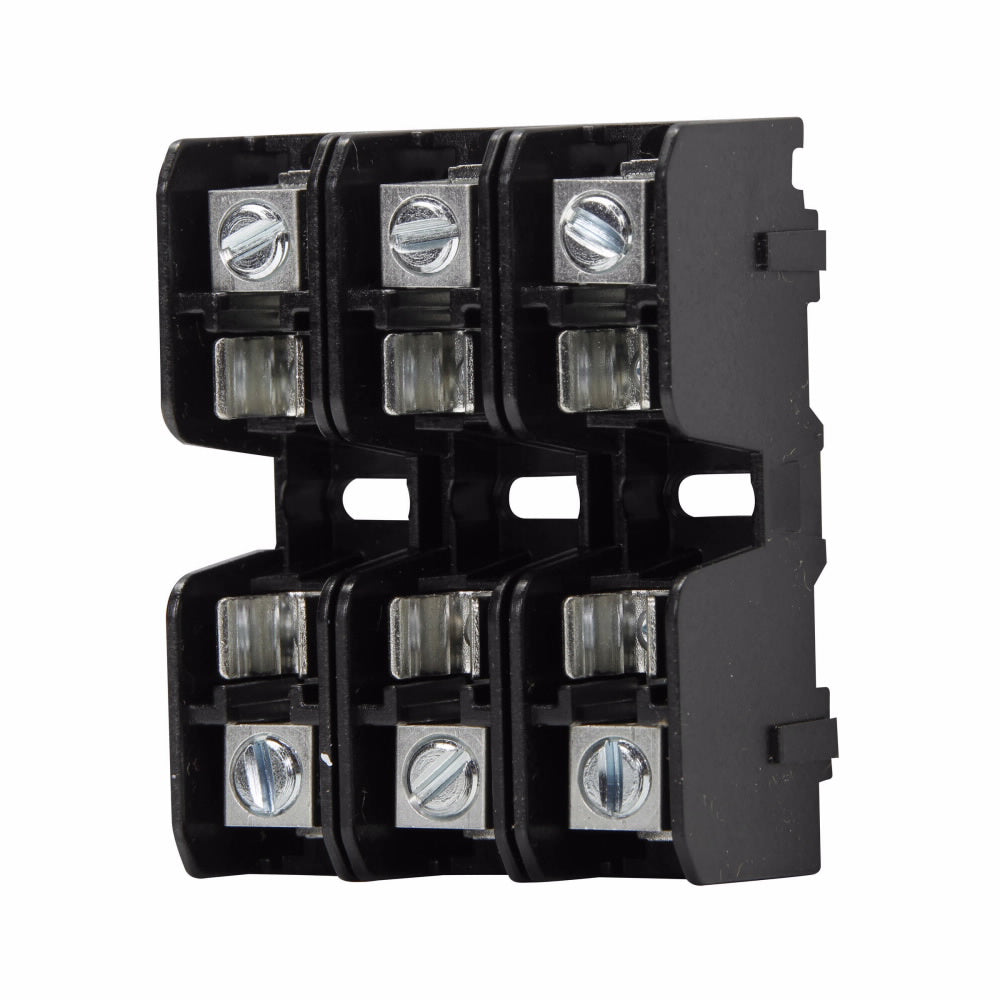

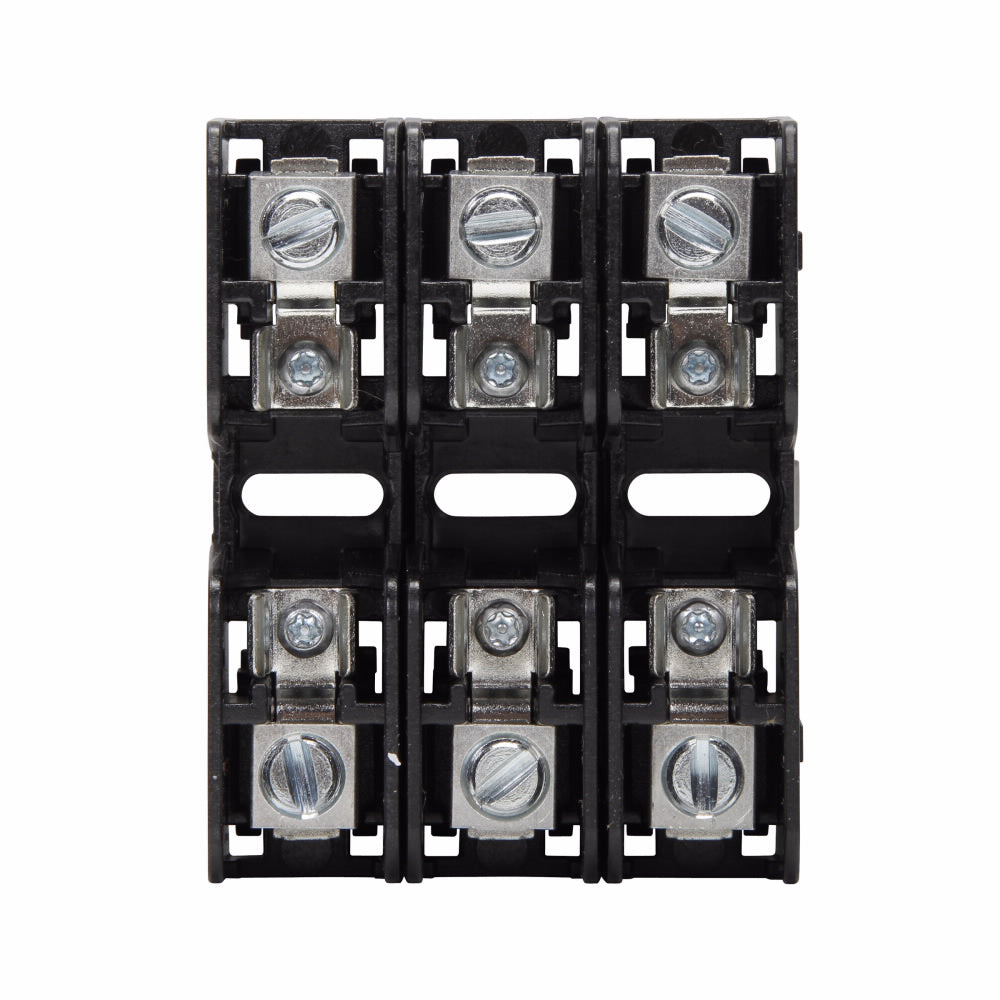

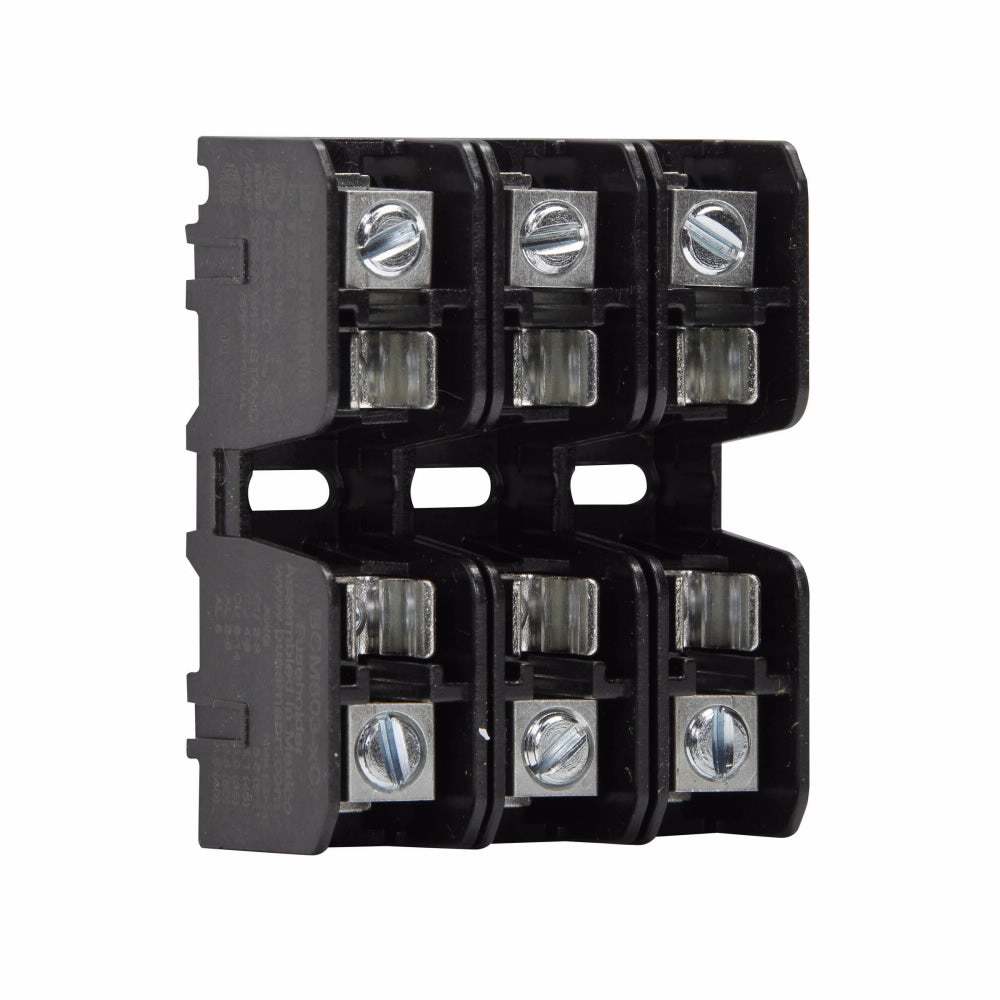

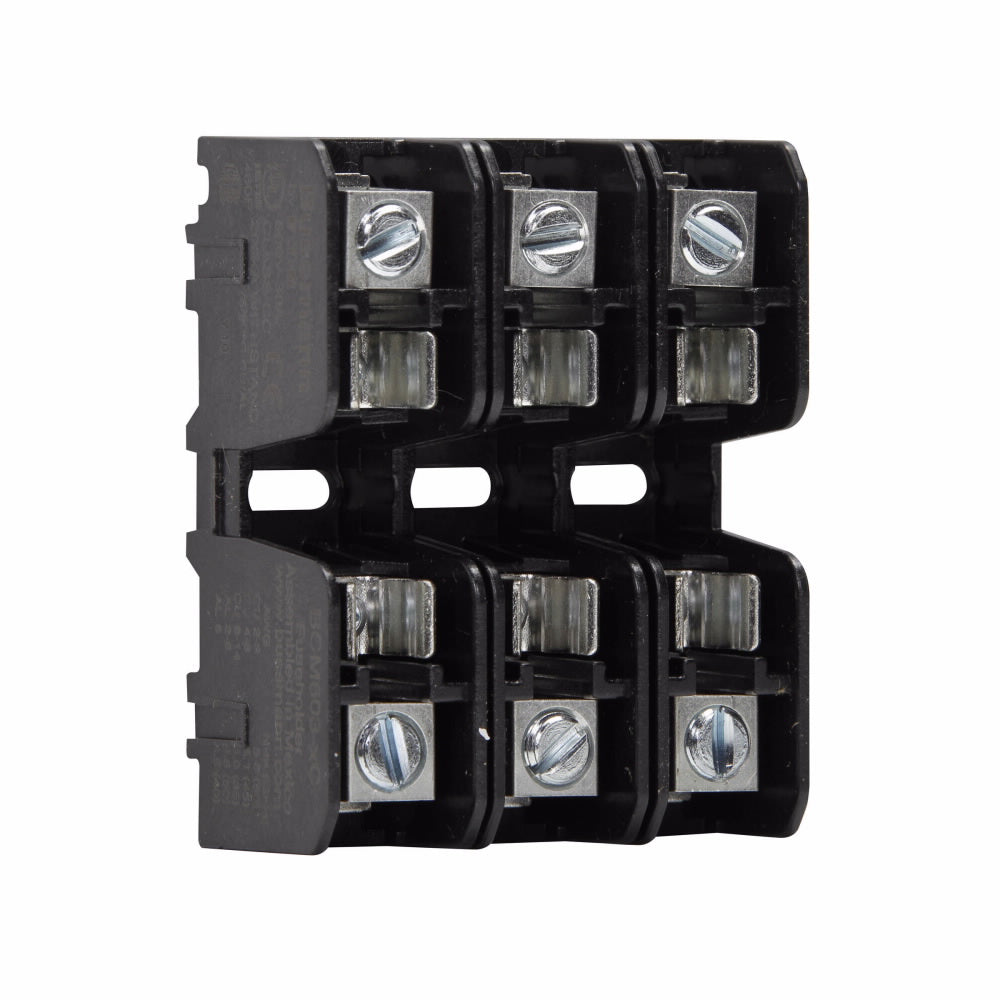

Bussmann BCM603-3C Modular Fuse Block 600 VAC 30 A

Product Description

The Bussmann BCM603-3C is a modular fuse block designed by Eaton. It supports a voltage rating of 600 VAC and an amperage rating of 30 A. This fuse block is suitable for various applications with its three poles, making it ideal for panel designs that require versatility and safety.

• Modular design for easy assembly.
• DIN Rail and panel mount options.
• Compatible with Low-Peak and Limitron fuse series.

Product Highlights

Designed for efficient panel use, the Bussmann BCM603-3C provides a compact footprint and robust features.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Class: CC
• Connection Type: Box Lug/Wired
• Dimensions: 3 in L x 2.4 in W x 1.3 in H
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Series: BCM
• Suitable For Use With: Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse
• Temperature Rating: -40 to 120 deg C
• Type: Modular
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Wire Size: 14 to 2 AWG, 8 to 2 AWG
• Number of Poles: 3
