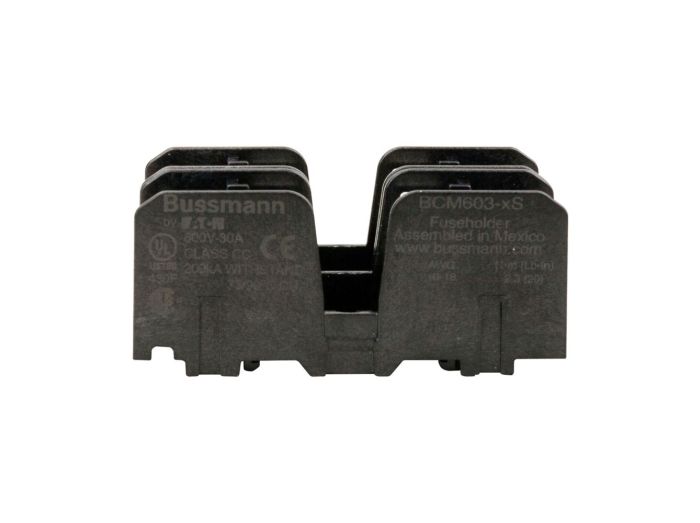

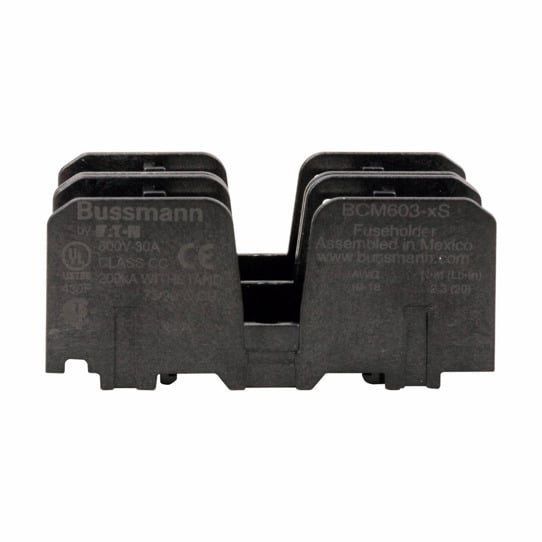

Bussmann BCM603-2S Eaton Bussmann Series BCM Modular Fuse Block 600V Two-Pole

Product Description

The BUSSMANN BCM603-2S is an Eaton Bussmann series BCM modular fuse block with a screw and two-pole design. This modular fuse block features a snap-together design for tool-less assembly, reducing inventory and saving assembly time. It is suitable for DIN-rail and panel mount applications.

• Screw
• RoHS Compliant and CE Marked
• UL Listed and CSA Certified

Product Highlights

The BCM603-2S fuse block offers a compact footprint, a patented rejection feature, and a self-extinguishing block.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BCM603-2S
• Country of Origin: Multiple

Technical Specifications

• Product Name: Eaton Bussmann series BCM modular fuse block
• Catalog Number: BCM603-2S
• UPC: 051712486347
• Product Length/Depth: 2.875 in
• Product Height: 1.186 in
• Product Width: 1.438 in
• Compliances: RoHS Compliant CE Marked
• Certifications: Contact Manufacturer UL Listed CSA Certified
• Product Type: Modular fuse block
• Number of poles: Two-pole
• Special features: Screw
• Fuse Holder Type: Modular Fuse Holder
• Fuse Current: 30A
• Fuse Size Held: Class CC
• Holder Terminals: Screw
• No. of Fuses: 2Fuses
• Product Range: BCM Series
• Voltage Rating VAC: 600V
• Voltage Rating VDC: -
• Manufacturer: Eaton Bussmann
• Brand: Eaton Bussmann Series
• Country of Origin: Multiple
• Made in USA: No
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: Contact Manufacturer ,UL Listed ,CSA Certified,RoHS Compliant,CE Marked
• GTIN: 00051712486347
• Item Type: Modular fuse block
• Weight UOM: Pounds
• Manufacturer Part Number: BCM603-2S
• Product Series: BCM
• Family Series: Eaton's Bussmann series Fuseblocks & Holders, BCM Series
• Description: Eaton Bussmann series BCM modular fuse block, Screw, Two-pole
• Current Rating: 30 A
• Voltage: 600 V
• Poles: 2
• Fuse Type: Class CC
• Class: CC
• Connection Type: Screw Terminal
• Mounting: DIN Rail, Panel Mount
• Trip Indicator: No
• Reinforced: No
• Enclosed: No
• Touch Safe: No
• Net Weight: 0.121 lbs
• Gross Weight: 0.121 lbs
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Type: Modular Fuse Block
• Sub Brand: Bussmann Series
• 12-Digit UPC: 051712486385
• GTiN: 00051712486385
• Product UPC: 05171248638
