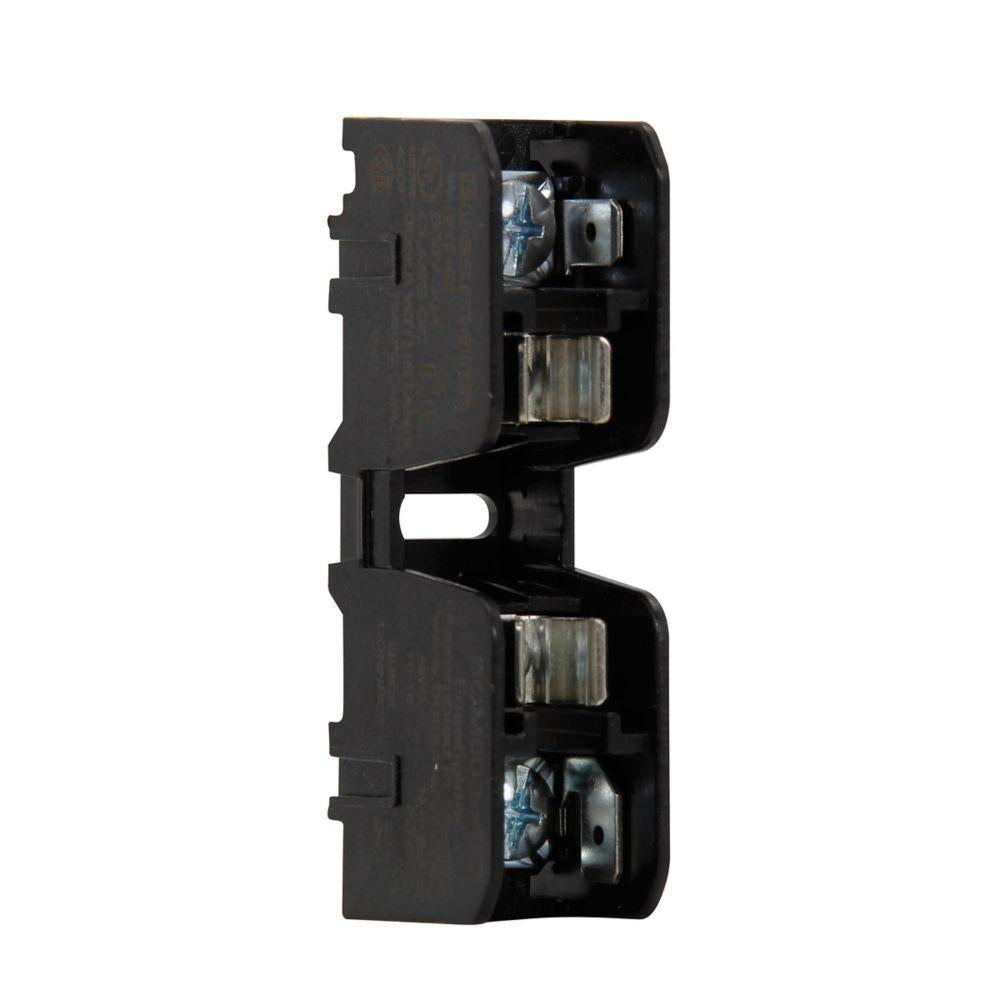

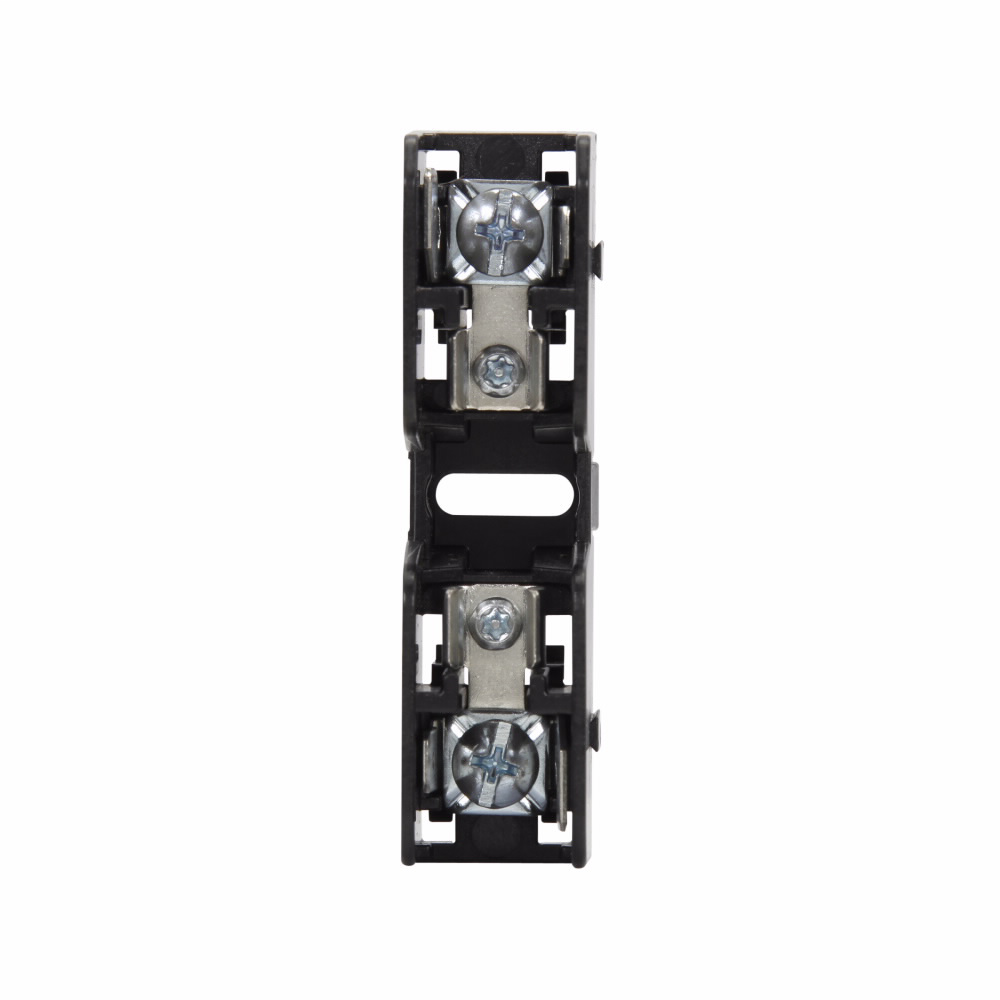

Bussmann BCM603-1PQ Modular Fuse Block W/ Pressure Plate 600 VAC 30 A 18 to 10 AWG Wire

Product Description

The Bussmann BCM603-1PQ is a modular fuse block designed for electrical assemblies and panel applications. This fuse block operates at a voltage of 600 VAC and a current rating of 30 A, making it suitable for various load protection needs.

• Modular design allows for easy assembly and versatility.
• Includes quick-connect and pressure plate connections for streamlined installation.
• Rated for use with low-peak and time-delay fuses.

Product Highlights

This fuse block is ideal for applications where space is limited and safety is essential. It is made of thermoplastic material that withstands temperatures between -40 to 120 degrees Celsius.

Product Information

Standard Information

• Brand: Bussmann
• MPN: BCM603-1PQ

Technical Specifications

• Class: CC
• Connection Type: 1/4 in Quick-Connect/Pressure Plate
• Dimensions: 3 in L x 0.8 in W x 1.3 in H
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Series: BCM
• Suitable For Use With: Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse
• Temperature Rating: -40 to 120 deg C
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Wire Size: 18 to 10 AWG
• Number of Poles: 1
