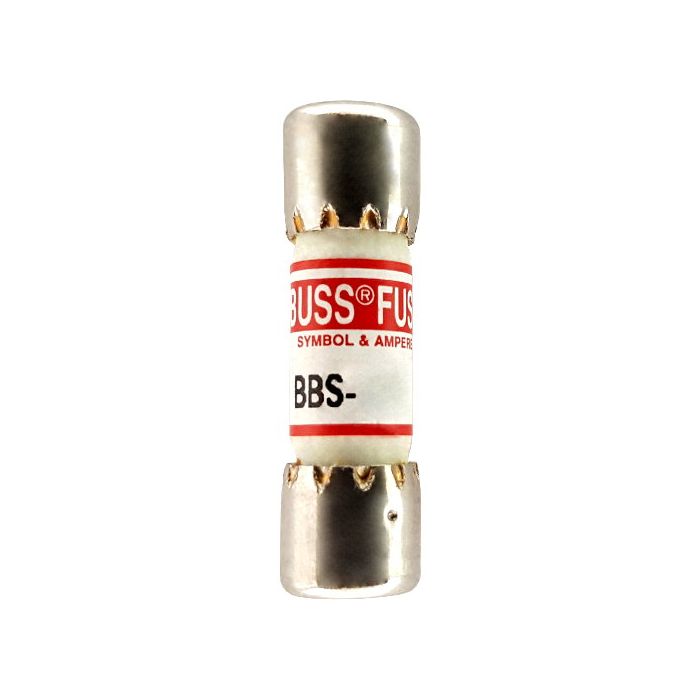

Bussmann BBS-20 Fuse 20 A (13/32 inches x 1 3/8 inches)

Product Description

The BUSSMANN BBS-20 is an Eaton Bussmann series BBS fuse with a 20 A amperage rating and a voltage rating of 48 V. It features nickel-plated brass endcaps and silver-plated fuse caps. This fuse offers reliable protection for control circuits, lighting ballasts and meter circuits.

• Silver-plated fuse caps
• Fast Acting
• UL Listed, STD. 248-14 File #E19180

Product Highlights

The BUSSMANN BBS-20 fuse is fast-acting with ferrule end connections and non-indicating functionality.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BBS-20
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series BBS fuse
• Catalog Number: BBS-20
• UPC: 051712707541
• EAN: 5027590407304
• Product Length/Depth: 0.41 in
• Product Height: 1.38 in
• Product Width: 0.41 in
• Product Weight: 0.12 lb
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 20 A
• Interrupt rating: Consult factory
• Voltage rating: 48 V
• Material: Nickel-plated brass endcaps
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Silver-plated fuse caps
• Amperage: 20 Amps
• Voltage: 48 Volts AC
• Speed: Fast Acting
• Type: Ferrule
• Tube Material: Fibre
• Physical Size: 13/32" x 1 3/8"
• Endcaps: Nickel Plated Brass
• AC Voltage Rating: 48 V
• Interrupting Rating: 10,000
• UL Listed: STD. 248-14 File #E19180
• CSA Certified: C22.2 NO. 248.14
• Applications: Control Circuits, Lighting Ballasts, Meter Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating - AC: 10 kA
• Size: 13/32 In Diameter X 1-3/8 In Length
• Standard: CE,CSA C22.2,UL 248-14
• TC Connection: Ferrule End X Ferrule End
• Brand: BUSSMANN
• Sub Brand: Bussmann Series
• Class: Supplemental
• Mfr. No: BBS-20
• Description: Industrial & Electrical Fuses 250VAC 10kA 20A Fast Acting Ferrule
• UNSPSC Code: 39120000
• Dimensions: 1.38 in H X 0.41 in W X 0.41 in L
• Shape: RECTANGULAR
• Unit of Measure: EA
• UPC Code: 051712707541
• Body Material: Fiberglass
• Compatible Fuse Block Series: BMM; CHM
• Current Rating: 20
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Overall Diameter: 13/32 in
• Overall Length: 1-3/8 in
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
