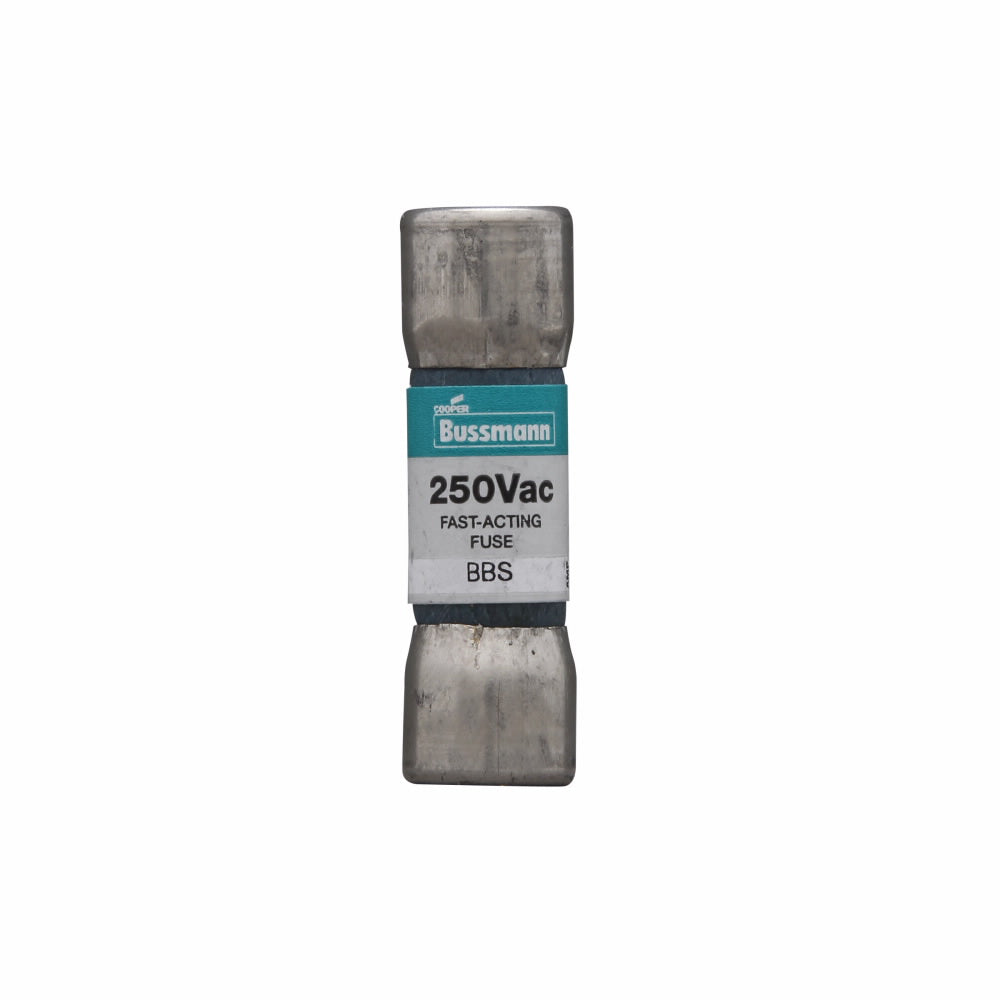

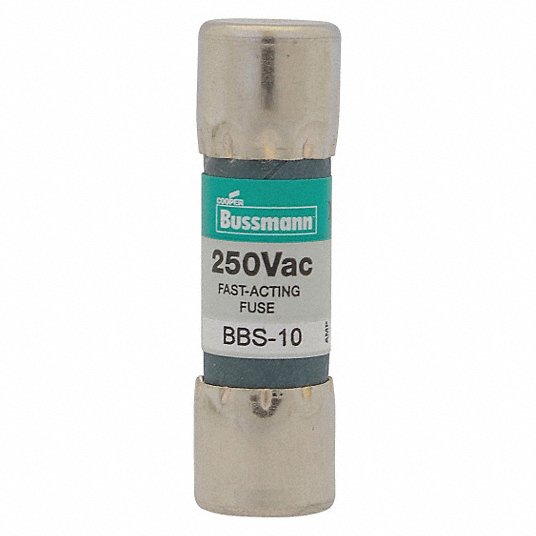

Bussmann BBS-10 Series BBS-10 10 Amp 250 VAC Midget Fast Acting Fuse

Product Description

The Bussmann BBS-10 is a 10 Amp, 250 VAC midget fast-acting fuse. It features ferrule end connections and nickel-plated brass endcaps. This fuse is suitable for control circuits, lighting ballasts, and meter circuits. It is CE, CSA C22.2, and UL 248-14 certified.

• Fast Acting
• Ferrule end x ferrule end
• Nickel-plated brass endcaps

Product Highlights

The Bussmann BBS-10 fuse provides fast-acting protection for sensitive equipment with its quick response to current changes.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BBS-10
• Country of Origin: USA

Technical Specifications

• Amperage: 10 Amp
• Applications: Control Circuits, Lighting Ballasts, Meter Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating: 10 kAIC
• Material: Brass
• Size: 13/32 In Diameter X 1-3/8 In Length
• Standard: CE,CSA C22.2,UL 248-14
• Tc Connection: Ferrule End X Ferrule End
• Type: Fast Acting
• Voltage: 250 Volt
• Brand: Bussmann
• Sub Brand: Bussmann Series
• Class: Supplemental
• Amperage Rating: 10 A
• Voltage rating: 250 V
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Special features: Replacement for "F19B" fuses
• Product Length/Depth: 0.37 in
• Product Height: 1.31 in
• Product Width: 0.37 in
• Product Type: Fuse
• Compliances: CE Marked
• Volts AC: 250
• Fuse Type: Midget
• Acting Speed: Fast Acting
• Interrupting Rating: 10,000
• UL Listed: STD. 248-14 File #E19180
• CSA Certified: C22.2 NO. 248.14
• Ampere: 10 A
• Interrupt rating: 10 kA
• Speed: Fast Blow
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Substitute parts: Littelfuse BLS, Mersen SBS
• Dimensions: 0.41" Dia x 1.38" L (10.41x35.05mm)
• Item weight: 0.18 oz
• Series: BBS
• Manufacturer Part Number: BBS-10
• AC Voltage Rating: 250 V
• Body Material: Fiberglass
• Compatible Fuse Block Series: BMM; CHM
• Current Rating: 10 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-3/8 in
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
