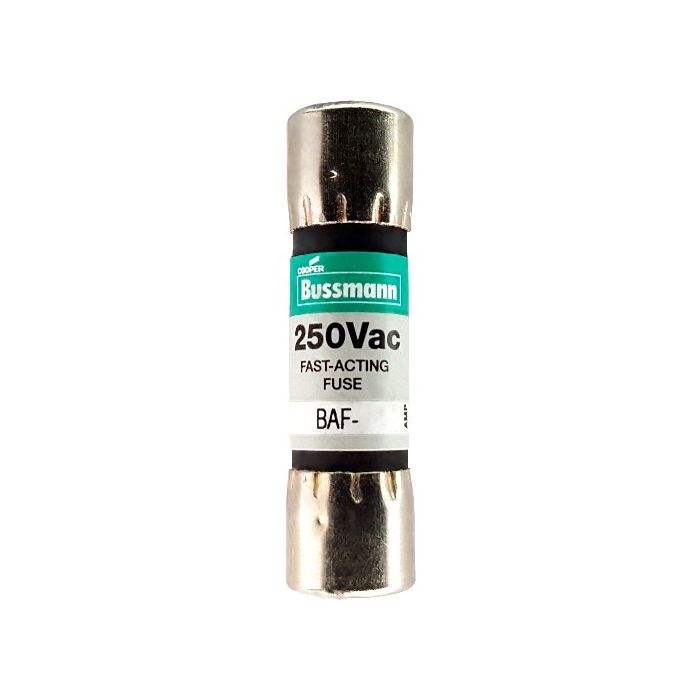

Bussmann BAF-1 Fuse 1 A REPLACEMENT BAF-1

Product Description

The BUSSMANN BAF-1 is a fast-acting fuse with nickel-plated brass endcaps. This standard, non-indicating fuse has silver-plated fuse caps and is designed to quickly respond to changes in current. It is suitable for protecting current-sensitive equipment in various applications.

• Fast acting
• Non-indicating
• Ferrule end x ferrule end

Product Highlights

Fast-acting fuse with nickel-plated brass endcaps and silver-plated fuse caps, designed for protecting current-sensitive equipment.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: BAF-1
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series BAF fuse
• Catalog Number: BAF-1
• UPC: 051712320016
• EAN: 5027590449007
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 1 A
• Interrupt rating: 35 AIC at 250 Vac 10 kAIC at 125 Vac
• Voltage rating: 250 V
• Material: Nickel-plated brass endcaps
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Silver-plated fuse caps
• AC Voltage Rating: 250 V AC
• Physical Size: 13/32" x 1 1/2"
• Fuse Type: Midget Fuse
• Amperage: 1 Amp
• Series: BAF Series
• Body Material: Fiberglass
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HEX; HPG; HPS
• Current Rating: 1 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 35 A; 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Dimensions: 1.50 in H X 0.41 in W X 0.41 in L
• For Use With: Fuses
• Indicator: Non-indicating
• Primary Type: Fuse
• Shape: RECTANGULAR
• Type: Fuse
• Unit of Measure: EA
• UPC Code: 051712320016
