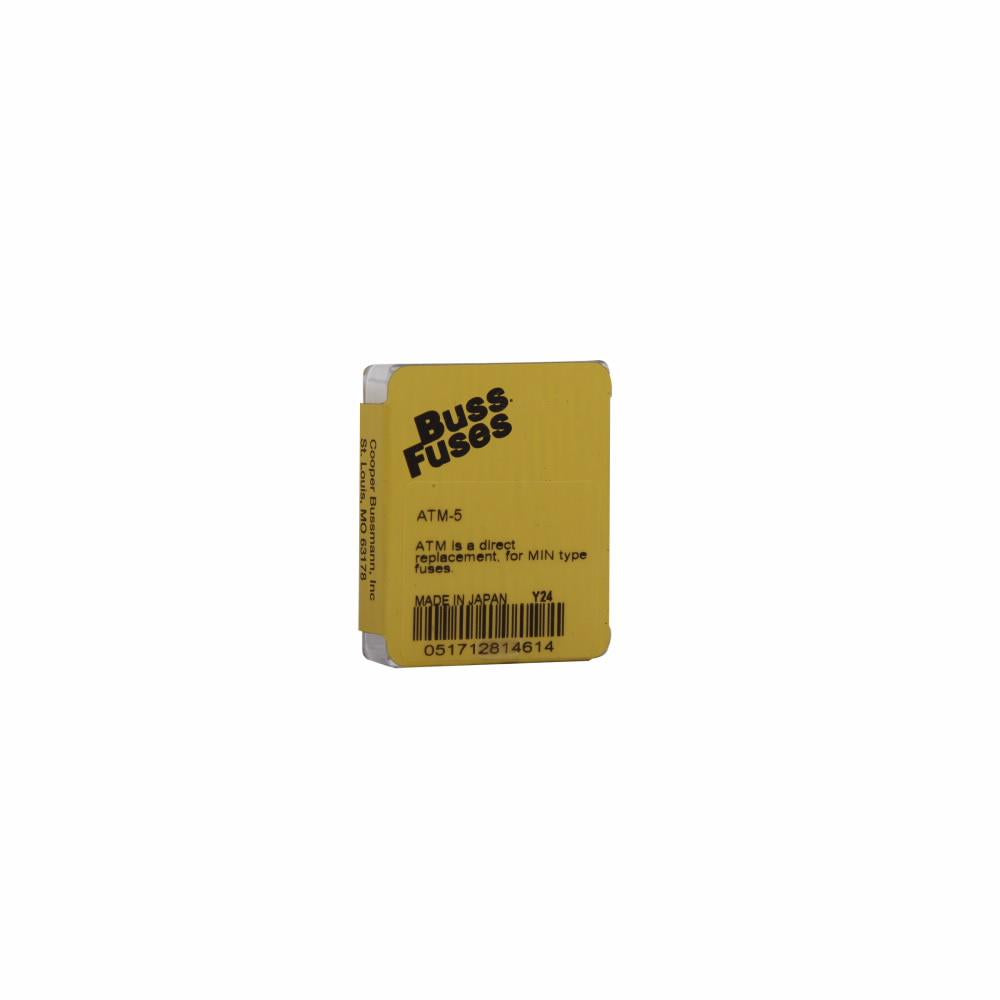

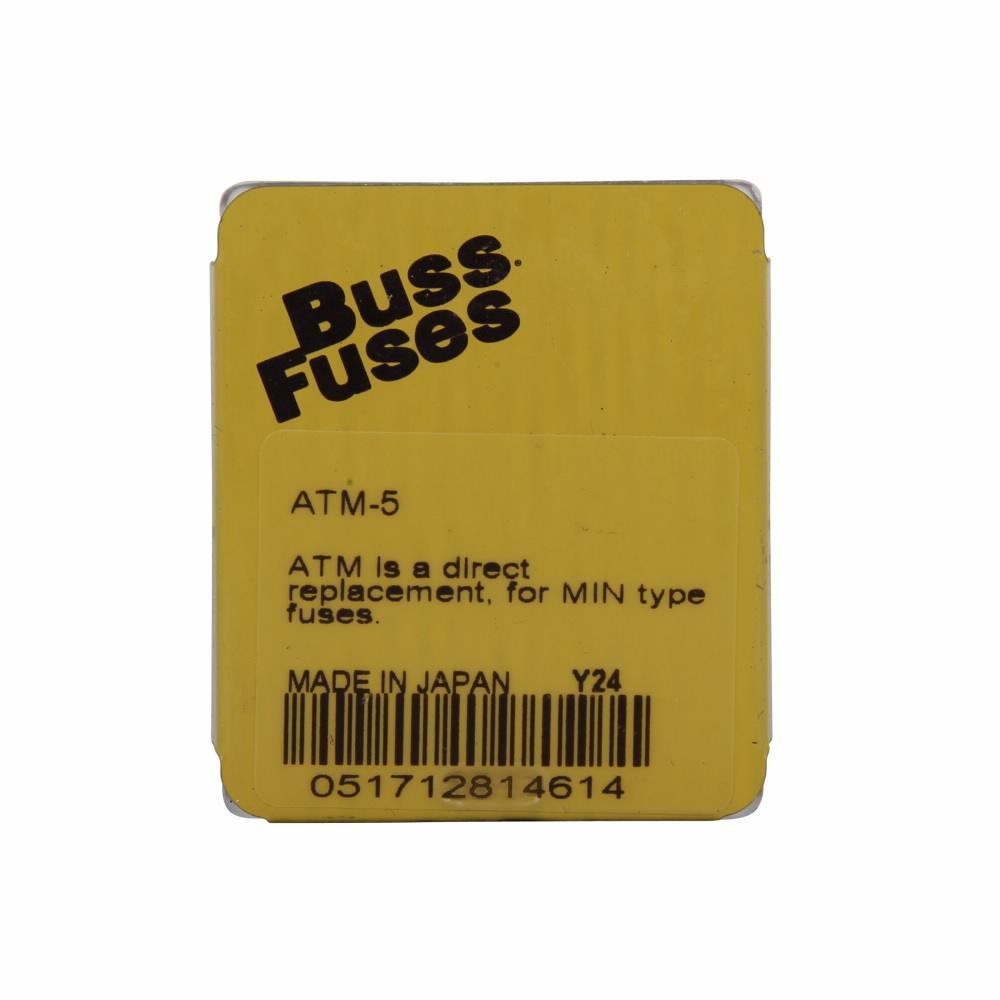

Bussmann ATM-5 ATM-5 5 Amp 32 VDC Automotive Blade Fuse

Product Description

The BUSSMANN ATM-5 is an ATM series blade fuse with a tan color code, rated at 5 Amps and 32 VDC. This fast-acting miniature fuse features a colored plastic housing and a zinc fuse element. It is suitable for automotive applications and provides circuit protection with a 1 kAIC interrupt rating.

• Color code tan
• Non Indicating
• Blade end
• Colored plastic housing

Product Highlights

The ATM-5 blade fuse offers reliable and compact circuit protection for automotive and other low-voltage applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ATM-5

Technical Specifications

• Type: Blade Fuse
• Brand: Bussmann
• Width: 0.44 in
• Height: 1.6 in
• Length: 1.38 Inch
• Voltage Rating: 32 VAC/VDC
• Amperage Rating: 5 A
• Material: Plastic
• Sub Brand: Bussmann Series
• Applications: Automotive
• Connection Type: Blade End
• Interrupt Rating: 1 kAIC
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: ATM
• Terminal Type: Blade
• Depth: 5/32 in
