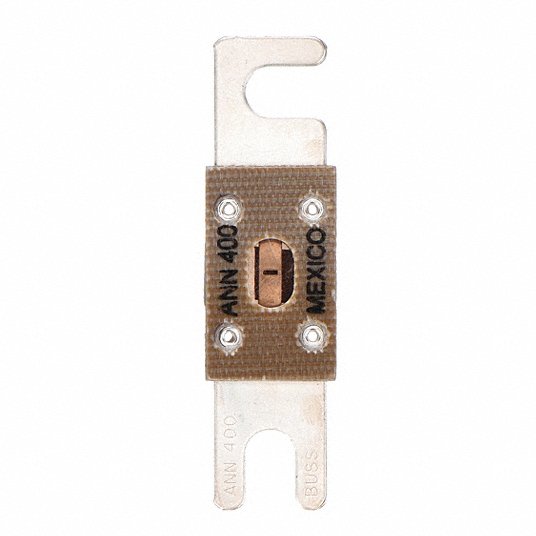

Bussmann ANN-400 Ann 400 Amp Specialty Fuse

Product Description

The BUSSMANN ANN-400 is a 400 amp, 125V AC specialty fuse designed for fork lift truck applications. This very fast acting limiter isolates faults in battery operated systems. It features stud mounts for installation in Buss fuseblock 4164, and offers a small footprint.

• 400 Amps
• 125 Volts AC
• Very Fast Acting

Product Highlights

The BUSSMANN ANN-400 fuse provides very fast acting protection for sensitive components in battery operated systems.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ANN-400
• Country of Origin: Mexico

Technical Specifications

• Amperage: 400 A
• Voltage: 125V AC
• Application: Fork Lift Truck Fuse
• Characteristic: Very Fast Acting
• Physical Size: 0.88" x 3.19"
• AC Voltage Rating: 125 V AC
• DC Voltage Rating: 80 V DC
• Interrupting Rating (AC): 2.5 kAIC @ 125VAC
• Interrupting Rating (DC): 2.7 kAIC @ 80VDC
• Mounting: Stud Mounts in Buss Fuseblock 4164
• Product Length/Depth: 3.38 in
• Product Height: 1.62 in
• Product Width: 0.95 in
• Product Type: Circuit limiter
• Interrupt rating: 2.7 kAIC at 80 Vdc 2.5 kAIC at 125 Vac
• Voltage rating: 125 Vac, 80 Vdc
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Mounting method: Stud
• Special features: Small footprint
• Series: ANN
• Equivalent Fuse Series: ANN | CNN
• Manufacturer Part Number: ANN-400
• Body Material: Glass; Melamine
• Compatible Fuse Block Series: 4164
• Current Rating: 400 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Interrupt Rating - AC: 2.5 kA
• Interrupt Rating - DC: 2.7 kA
• Overall Diameter: 7/8 in
• Overall Length: 3-3/16 in
• Speed: Very-Fast-Acting
• Standards: CE; CSA Certification Class 1422-30; UL Guide JFHR2
• Visual Indication: Indicating
• UNSPSC: 39121606
