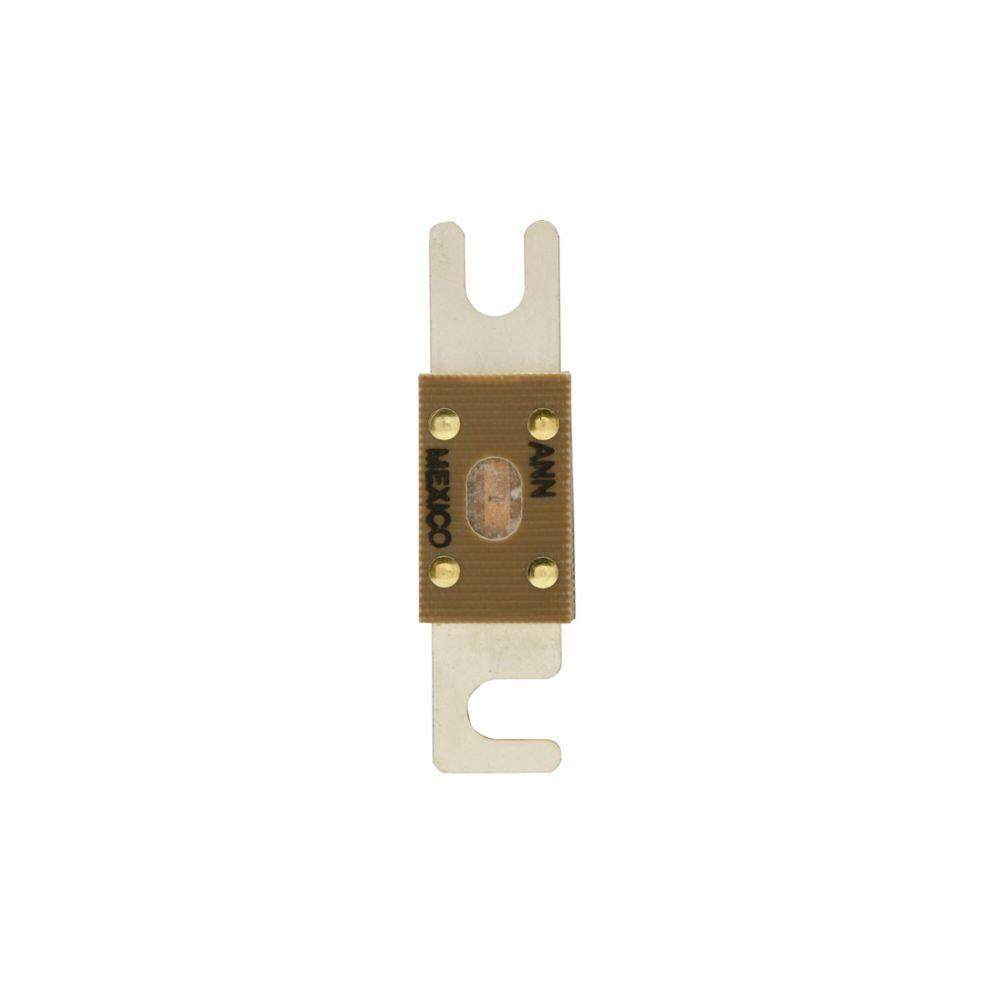

Bussmann ANN-300 Non-Indicating Very Fast Acting Circuit Limiter 300 A 125 VAC/80 VDC

Product Description

Bussmann ANN-300 is a non-indicating very fast acting circuit limiter. It features a rating of three hundred amperes and operates at one hundred twenty-five volts alternating current or eighty volts direct current. This limiter effectively responds with an interrupt rating of two point five to two point seven kiloampere. It is designed for bolted-down terminal connections and has a flat body made from melamine.

• Quick response to electrical faults
• Stud mount design for simple installation
• Visible indicator for limiter status

Product Highlights

This circuit limiter maximizes equipment space with its small footprint and features a mica window that allows visibility of the limiting element.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Amperage Rating: 300 A
• Voltage Rating: 125 VAC/80 VDC
• Interrupt Rating: 2.5/2.7 kAIC
• Body Size: 3-3/16 in L x 7/8 in W
• Material: Melamine
• Mounting Type: Stud
• Terminal Type: Bolted-Down
• Body Type: Flat
