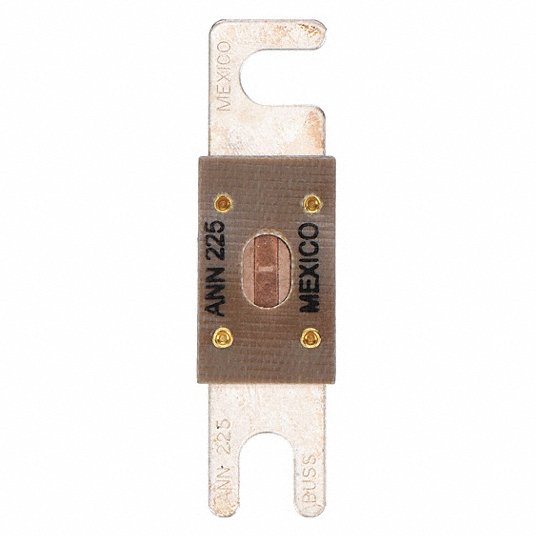

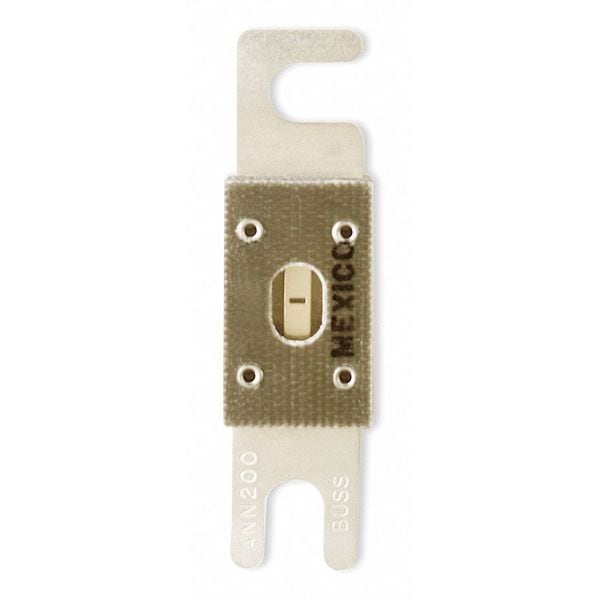

Bussmann ANN-225 ANN Series Circuit Limiter 225A

Product Description

The Eaton Bussmann series ANN-225 circuit limiter features 225A amperage rating. It has a blade end x blade end connection and stud mounting. This non-indicating circuit limiter has a small footprint. It is designed to protect charging systems in forklifts, golf carts, and other battery-operated systems.

• Small footprint
• Link Element Is Visible Through Mica Window For Quick Verification Of Status
• Used To Protect Charging Systems In Forklifts, Golf Carts, And Other Battery Operated Systems

Product Highlights

The Bussmann ANN-225 is a very-fast-acting circuit limiter with a small footprint, ideal for protecting sensitive components in battery-operated systems.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ANN-225
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series ANN circuit limiter
• Catalog Number: ANN-225
• UPC: 051712706360
• Product Length/Depth: 3.38 in
• Product Height: 1.62 in
• Product Width: 0.95 in
• Product Type: Circuit limiter
• Amperage Rating: 225 A
• Interrupt rating: 2.5 kAIC at 125 Vac 2.7 kAIC at 80 Vdc
• Voltage rating: 125 Vac, 80 Vdc
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Mounting method: Stud
• Special features: Small footprint
• Material: Copper
• Specification Met: UL
• Maximum Current: 225 Amps
• Current Rating: 225 A
• Brand: BUSSMANN
• Series: ANN
• Equivalent Fuse Series: ANN | CNN
• Manufacturer Part Number: ANN-225
• AC Voltage Rating: 125 V AC
• Body Material: Glass; Melamine
• Compatible Fuse Block Series: 4164
• DC Voltage Rating: 80 V DC
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Interrupt Rating - AC: 2.5 kA
• Interrupt Rating - DC: 2.7 kA
• Overall Diameter: 7/8 in
• Overall Length: 3-3/16 in
• Speed: Very-Fast-Acting
• Standards: CE; CSA Certification Class 1422-30; UL Guide JFHR2
• Visual Indication: Indicating
• UNSPSC: 39121606
• Amps: 225A
• Body Style: Bolt-On
• Equivalent Brand and Series: Bussmann ANN, Littelfuse CNN, Mersen CNN
• Equivalent Series: ANN, CNN
• Fuse Speed: Very Fast Acting
• Fuse Voltage Rating: 125VAC/80VDC
• Indicating / Nonindicating: Indicating
• Fuse Amps: 225A
• Mounting: Stud
• Current: 225 A
• ECCN: EAR99
• Application: Aviation, fork lifts, marine
• Connection Type: Blade end x blade end
• End Type: Blade End x Blade End
• Fuse Interrupt Rating: 2.5 kAIC at 125 Vac|2.7 kAIC at 80 Vdc
• Fuse Dimension: 3.19 L x 0.88 in. W
• Rated Voltage: 125V ac/80V dc
• Length: 3.38 in.
• Height: 1.62 in.
• Width: 0.95 in.
• Amp Rating: 225
• Voltage Rating: 125 AC / 80 DC
• Type: Power Fuse
• Class: ANN
