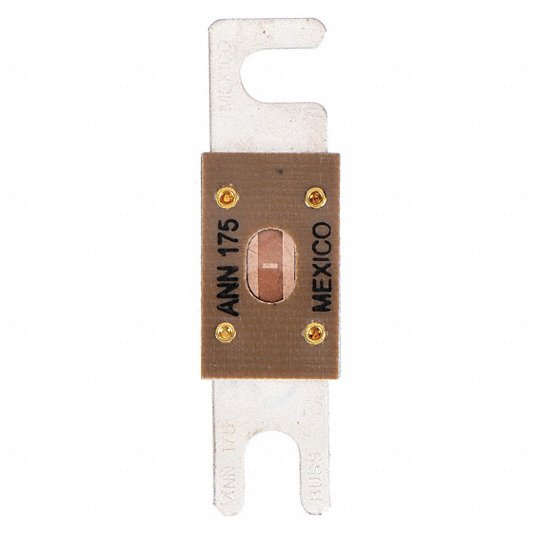

Bussmann ANN-175 Ann Series Circuit Limiter 175 A

EATON
Brand: EATON
SKU: ANN-175
Availability: In Stock

Ships same day if ordered by 12 pm
$130.74
$130.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Bussmann ANN-175 is an Eaton Bussmann series ANN circuit limiter. This 175A limiter has a 2.5 kAIC at 125 Vac and 2.7 kAIC at 80 Vdc. It features blade end x blade end connection and stud mounting. It is suitable for aviation, forklifts, and marine applications.

  • Small footprint
  • Very-Fast-Acting
  • Bolt-On

Product Highlights

The Bussmann ANN series circuit limiter provides very fast-acting responses to protect semiconductors and sensitive components.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: ANN-175
  • Country of Origin: Mexico
Technical Specifications
Product Name
Eaton Bussmann series ANN circuit limiter
Catalog Number
ANN-175
UPC
051712706353
EAN
5027590403412
Product Length/Depth
3.38 in
Product Height
1.62 in
Product Width
0.95 in
Product Type
Circuit limiter
Amperage Rating
175 A
Interrupt rating
2.7 kAIC at 80 Vdc 2.5 kAIC at 125 Vac
Voltage rating
125 Vac, 80 Vdc
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Mounting method
Stud
Special features
Small footprint
Mfr. #
ANN-175
Series
ANN
Equivalent Fuse Series
ANN | CNN
Manufacturer Part Number
ANN-175
AC Voltage Rating
125 V AC
Body Material
Glass; Melamine
Compatible Fuse Block Series
4164
Current Rating
175 A
DC Voltage Rating
80 V DC
Element
Single
Fits Fuse Block Style
Non-Rejection
Fuse Body Style
Bolt-On
Interrupt Rating - AC
2.5 kA
Interrupt Rating - DC
2.7 kA
Overall Diameter
7/8 in
Overall Length
3-3/16 in
Speed
Very-Fast-Acting
Standards
CE; CSA Certification Class 1422-30; UL Guide JFHR2
Visual Indication
Indicating
UNSPSC
39121626
Application
Aviation, fork lifts, marine
Mounting Type
Stud
End Type
Blade End
Fuse Interrupt Rating
2.5 kAIC at 125V ac
Fuse Dimension
22.35 Dia. x 81.03 L mm
Rated Voltage
125V ac/80V dc
Fuse Amps
175A
Length
3.38 in.
Height
1.62 in.
Width
0.95 in.
Type
Bolt-Down
Style
Fast-Acting
Voltage
125 VAC, 80 VDC
Amps
175
Material
Fiber
Industry No.
ANN-175
Indicating / Nonindicating
Nonindicating
Class
Limiter
Body Style
Bolt-on
Interrupt Rating
2500A @ 125 VAC 2700A @ 80 VDC
ECCN
EAR99
