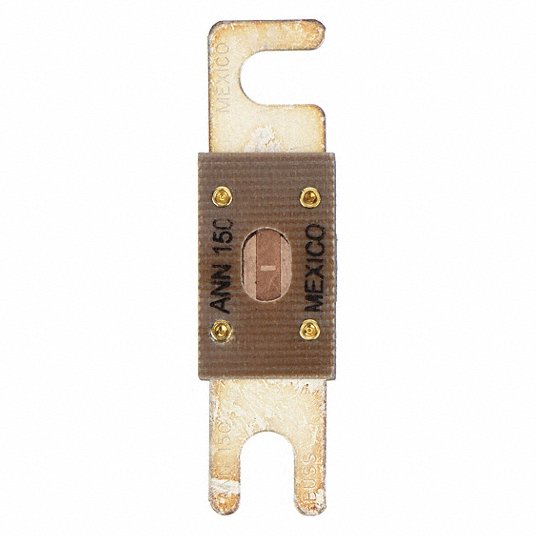

Bussmann ANN-150 ann circuit limiter 150 A

Product Description

The Eaton Bussmann series ANN circuit limiter by BUSSMANN, MPN ANN-150, is a 150 A circuit limiter with a small footprint. It features a 2.5 kAIC interrupt rating at 125 Vac and a 2.7 kAIC interrupt rating at 80 Vdc. Designed for stud mounting, it isolates faults in battery operated systems.

• Small footprint
• 150 Amps, 125 Volts AC
• Isolates faults in battery operated systems

Product Highlights

The Bussmann ANN circuit limiter is very fast acting and ideal for fork lift truck fuse applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: ANN-150
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series ANN circuit limiter
• Catalog Number: ANN-150
• UPC: 051712706322
• Product Length/Depth: 3.38 in
• Product Height: 1.62 in
• Product Width: 0.95 in
• Product Type: Circuit limiter
• Amperage Rating: 150 A
• Interrupt rating: 2.5 kAIC at 125 Vac 2.7 kAIC at 80 Vdc
• Voltage rating: 125 Vac, 80 Vdc
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Mounting method: Stud
• Special features: Small footprint
• Amps: 150
• Volts AC: 125
• Application: Fork Lift Truck Fuse
• Speed: Very Fast Acting
• Size: 0.88" x 3.19"
• AC Voltage Rating: 125 V AC
• DC Voltage Rating: 80 V DC
• Equivalent Fuse Series: ANN | CNN
• Manufacturer Part Number: ANN-150
• Body Material: Glass; Melamine
• Compatible Fuse Block Series: 4164
• Current Rating: 150 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Interrupt Rating - AC: 2.5 kA
• Interrupt Rating - DC: 2.7 kA
• Overall Diameter: 7/8 in
• Overall Length: 3-3/16 in
• Standards: CE; CSA Certification Class 1422-30; UL Guide JFHR2
• Visual Indication: Indicating
• UNSPSC: 39121606
• Amperage: 150 Amp
• Applications: Aviation, Fork Lifts, Marine
• Connection Type: Blade
• End Type: Blade
• Interrupt Rating: 2.5 kAIC
• Mounting Type: Stud
• Standard: CE,CSA,UL
• TC Connection: Blade end x blade end
• Type: Circuit Limiting, Very Fast Acting
• Voltage: 125 Volt
• Brand: Edison
• Sub Brand: Bussmann Series
