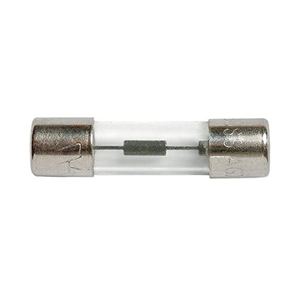

Bussmann AGX-3/4 Agx 3/4 Amp, 250V, Glass Fuse (1/4 inches x 1 inches)

Product Description

The BUSSMANN AGX-3/4 is a 3/4 amp, 250V fast-acting glass tube fuse designed for overcurrent protection. This fuse is suitable for instruments, electronic devices, and small appliance circuits. It has a nickel-plated brass end cap and is UL Listed, meeting standard 248-14. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip.

• 3/4 Amps, 250 Volts AC
• Fast Acting glass tube fuse
• Physical Size: 1/4" x 1"

Product Highlights

Fast-acting glass tube fuse designed for overcurrent protection in electronic circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: AGX-3/4
• Country of Origin: TW - Taiwan

Technical Specifications

• Amperage: 3/4
• Voltage: 250V
• Fuse Type: Glass Tube
• Acting Type: Fast Acting
• Size: 1/4" x 1"
• AC Voltage Rating: 250
• Interrupting Rating @ 250 VAC: 35 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• Application: Electronic circuits
• Standard: UL Listed product meets standard 248-14
• Series: AGX
• Part Number: AGX 024
• Mfg Cat No: AGX-3/4
• Ampere: .75 A
• Voltage rating: 250 Vac
• Interrupt rating: 1kA at 125VAC
• Speed: Fast Acting
• Class: 8AG
• Shape: Glass Fuse
• Approvals: CE, UL, CSA
• Dimensions: 0.25" Dia x 1" L (6.3x25.4mm)
• Connection Type: Ferrule end x ferrule end
• Material: Glass tube|Nickel-plated brass end cap construction
• Fuse Interrupt Rating: 10 kAIC at 125 Vac|35 AIC at 250 Vac
• Fuse Dimension: 1 L x 1/4 in. Dia.
• Rated Voltage: 250V ac/32V dc
• Response Time: 4 hr at 110%, 60 min at 135%, 2 min at 200%
• Fuse Amps: 0.75A
• Length: 1 in.
• Height: 0.25 in.
• Width: 0.25 in.
• Type: Fuse, Electronic
