EATON Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse
EATON Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse
EATON Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse
EATON Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse
EATON Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse
EATON Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse

Bussmann AGX-20 AGX Series 20 Amp Fast Acting Fuse

EATON
Brand: EATON
SKU: AGX-20
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

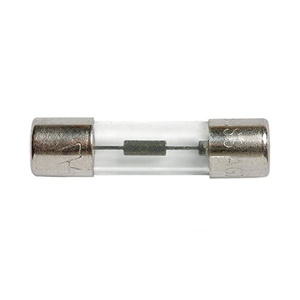

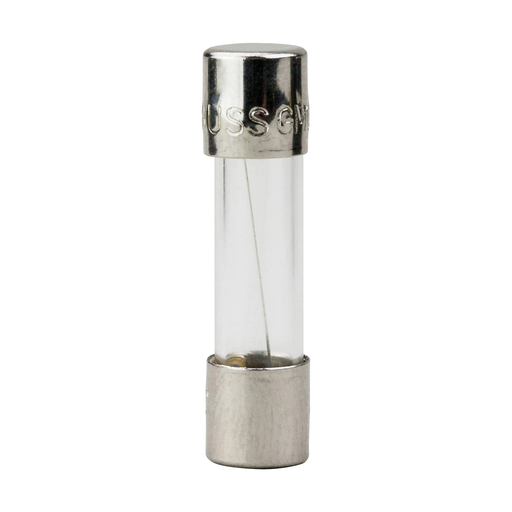

The BUSSMANN AGX-20 is a fast-acting fuse from the AGX Series, rated at 20A, 250 Vac, and 32 Vdc. This small dimension fuse is designed for electronic circuits and small appliances. It features a glass tube with nickel-plated brass end caps. The fuse meets UL 248-14 standards and provides reliable circuit protection.

  • Fast-acting fuse
  • Glass tube with nickel-plated brass end caps
  • Suitable for electronic circuits and small appliances

Product Highlights

Fast-acting glass tube fuse for reliable circuit protection in electronic and small appliance applications.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: AGX-20
Technical Specifications
Amperage
20 Amp
Applications
Electronic Circuits
Connection Type
Ferrule
End Type
Ferrule
Interrupt Rating
1 kAIC
Material
Glass tubeNickel-plated brass end cap construction
Response Time
2 Min Maximum At 200%,4 Hr Minimum At 110%,5 S Maximum At 200%,60 Min Maximum At 135%
Size
0.25 In Diameter X 1.00 In Length
Standard
CE,CSA,UL 248-14
Tc Connection
Ferrule end x ferrule end
Type
Electronic,Small Dimension
Voltage
250 Volt
Brand
Bussmann
Sub Brand
Bussmann Series
Fuse Type
Glass Tube
Acting Type
Fast Acting
End Cap
Nickel plated brass
AC Voltage Rating
32
Interrupting Rating
1000 AIC @ 32 VAC
Application
For instruments, electronic and small appliance circuits
Ampere
20 A
Voltage rating
250 Vac
Speed
Fast Blow
Class
8AG
Shape
Glass Fuse
Approvals
CE, UL, CSA
Dimensions
0.25" Dia x 1" L (6.3x25.4mm)
Manufacturer's Part Number
AGX-20
Part Type
Electrical Fuses
Product Line
Bussmann AGX Fast-Acting Glass Tube Fuses
